BHUMI ELECTRICALS Satellite, Ahmedabad, Gujarat

As power distribution needs play a pivotal role in all the significant sectors namely Commercial, Industrial and Residential, improved Breaker performance through better electrical safety, higher operational endurance, continued service and reduced cost have become of paramount importance. C&S MCBs have been engineered to constantly fulfill the above requirements. With these features C&S is setting new standards for user friendly and superlative electrical circuit protection. The C&S MCB is a high performing Thermal Magnetic current limiting device with the ability to disconnect short circuits up to 10kA. The range is available in tripping characteristics types B, C and D for 1P, 1P+N, 2P, 3P, 3P+N & 4P configurations in 0.5 – 125A current ratings. All metal components for operating mechanism of WiNtrip circuit breaker are specially treated for high self lubrication leading to repeat accuracy during service life. The MCBs conform to Standards: IEC 60898-1995 and IS/IEC 60898-1:2002 and stand guaranteed for best quality for optimum performance.

High Speed Fan, Plastic blades, Unique contoured design for better looks.

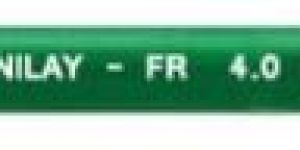

India’s 1st Flame Retardant RoHS Compliant cable with Unilay Conductor No Loose contacts, No Broken ends No sparking & overheating   Applications :  Suitable for use in conduit and for fixed, protected installation. Ideal for high density wiring.   Conductor :  Thin strands of Electrolytic Copper are multi – drawn simultaneously for uniformity of Resistance, Dimension, and Flexibility. The drawn strands are uni-laid in high precision machines and compacted. A perfectly circular conductor is thus formed. This enables reduction in overall diameter for space saving in high density wiring. The strands do not get cut when stripping the insulation. The conductor offers perfect contact at pins, terminals and sockets. This eliminates spot heating and sparking.   Marking :  The cables are printed with generic marking of“UNILAY-FR.   Colours :  Red, Yellow, Blue, Black, Green, Green/Yellow, Grey   Insulation :  Specially formulated Lead free + Flame retardant PUCinsulation is used. The FR (Flame Retardant) property retards the propagation of flame, hence without compromising safety   Insulation conformity :  155831 type A, FR   Approvals :  IS 694 marked, FIA/TAC approved – CM/L 7205255   Packing :  90 mtrs. coils packed in protective cartons   Insulation Conformity :  IS 5831 Type A, FR   Approvals :  IS 694 marked, FIA/TAC approved – CM/L 7205255   Marking :  The cables are printed with generic marking “SUPEREX-FR”   Colours :  Red, Yellow, Blue, Black, Green, Grey.   Packing :  90 mtrs. coils packed in protective cartons. Project coils of 180 mtrs also available.

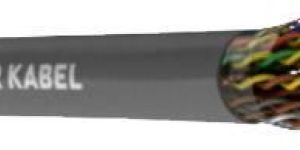

Description   Low Attenuation and Minimised Cross Talk | Flame Retardant Jacket     Application   Recommended for switchboard and telephone wiring in residentials and commercial infrastructure, for transmission of analog and digital signals, wiring in faxes, modems, alarm enunciators, data recording/acquisition systems and various communication devices.   Specifications   Specifications : ITD-S/WS 113C Conductor : The central conductor is made of solid electrolytic grade of copper Insulation : Premium quality grade polyethylene used on a special extruder. This serves for low attenuation and minimised cross talk. Twisted Pairs : The cores are carefully twisted with suitable lays and bunched together Marking : The cables are marked ‘RATNACOM FR’ Packing : Available in 100 mtr. length in polybag. Higher lengths available on special request.

With the flick of a switch one can opt for exhaust mode or fresh air mode in Transair Reversible. Bird screen for protection against bird & foreign matter. Reversible type available in 225 mm & 300 mm size only.

RANGE   Rating: 25A ~ 3150A, 415V, AC23A Poles: 2P, 3P, 4P & 6P   FEATURES   Modular pole design – economical maintenance  Available in open / sheet steel enclosure version  Quick make & break mechanism, self cleaning contacts  Compact construction  Door interlock and padlock facility  Suitable for isolation  Telescopic shaft for depth adjustment  Door defeat  Provision for 2NO+2NC aux contacts

RANGE   Rating: 32A ~ 800A, 415V, AC23A Poles: 2P, 3P, 3P+N & 4P   FEATURES   Suitable for DIN / bolted type fuse-link Modular pole design – economical maintenance Available in open / sheet steel enclosure version Double break, quick make & break mechanism, self cleaning contacts Compact construction Door interlock and padlock facility Suitable for isolation Telescopic shaft for depth adjustment Door defeat Provision for 2NO+2NC aux contacts Provision for left, right & intermittent mechanism

Surge Protection from Havells effectively while providing a protective device for each circuit.

Pressure die cast aluminium housing. Bright anodised aluminium pot optics reflector. Lamp compartment has toughned curved glass cover.

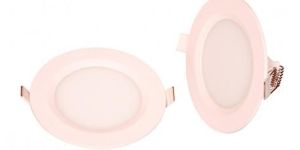

Smart Glow LED panel are slim recessed LED light panels.

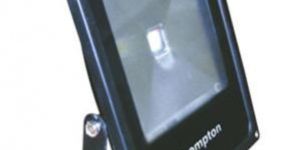

This LED flood light luminaire comprises elegantly designed high efficient pressure die cast aluminium housing with fins for better heat dissipiation the cradle is provided for mounting purpose

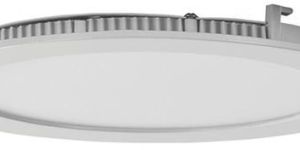

Round shaped pearl LED HPF flat panel comprises of aluminium die cast housing finished in powder coated white the flat panel is pre wired with high efficiency electronic driver.

Removable screw less front for easy cleaning., Easy screw less installation system., Operation indicator light., Stream lies design allowing improved.

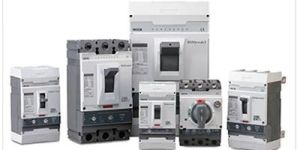

RANGE   Rating: 16A~1600A Poles: 3P & 4P   FEATURES   Breaking capacity up to 150kA Upgraded reliability(Ui 750V, Uimp- 8kV) Utilization category:A & B Common range of internal accessories upto 800AF Communication interface: modbus/RS-485

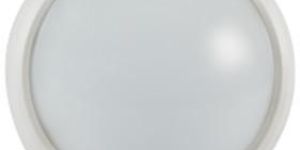

Havells surface lighting fixtures can be used in the most demanding applications. The energy-efficient and easy on the pocket designs

Adore LED lamps for high energy efficiency, brightness and instant lighting.

Illuminate your office spaces with Havells LED panels. High on energy efficiency and longevity, these are the best electricity bill saver, for sure.

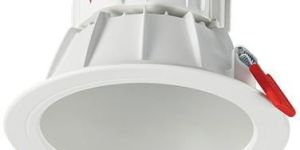

Make way for the best answer to focussed lighting with the complete range of Havells downlighters.

Giving you better luminance with higher energy savings, Havells LED lights collection surely has the right light for you.

High lumens per watt, high on energy saving – explore the range of Lumeno downlighters

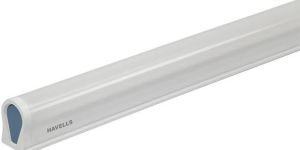

Brightest LED with the highest lumen output. Lumeno LED battens.

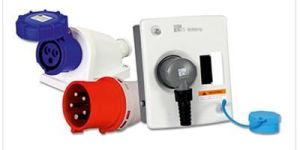

RANGE   3 Pin 16A, 32A & 63A, 240V AC IP44 & 67 versions 5 Pin 16A, 32A, 63A & 125A, 415V AC IP44 & 67 versions 3, 5 Pin 16A & 32A, 240/415V AC interlocked sockets IP44 & 67 versions AC distribution box with socket 16A, 32A & 63A IP40 versions   FEATURES   Color codes for different voltage frequencies of plugs & sockets Secure & reliable High grade thermoplastic material

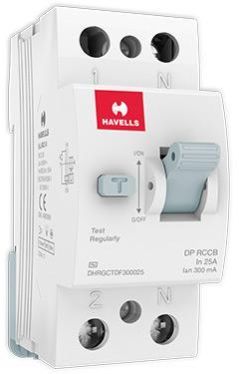

Whatever the situation, nothing is more important than human safety. Safeguard yourself with the Havells safety devices.
