Busbar Systems Dealers in Ahmedabad

We offer our clients a wide range of aluminumbus bars. These are sturdily developed by our principal manufacturers using excellent quality material and advanced manufacturing techniques. Moreover, our range is acknowledged by the clients for its superior hardness and high quality standards. These aluminum flat bars can be availed by the clients for their availability in different sizes, grades and dimensions.

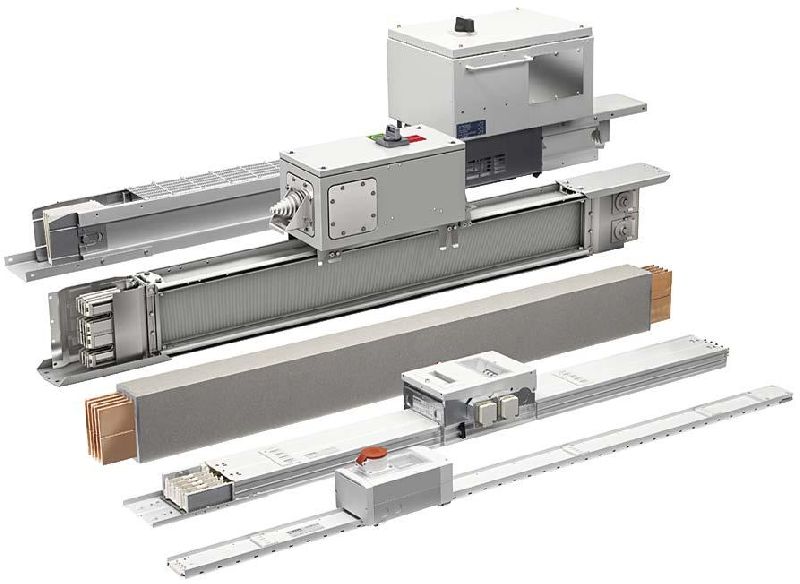

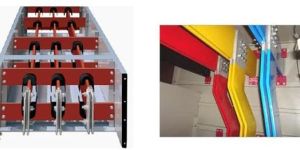

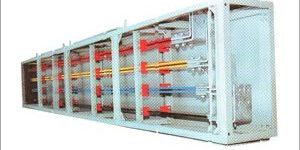

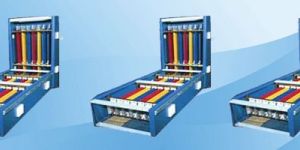

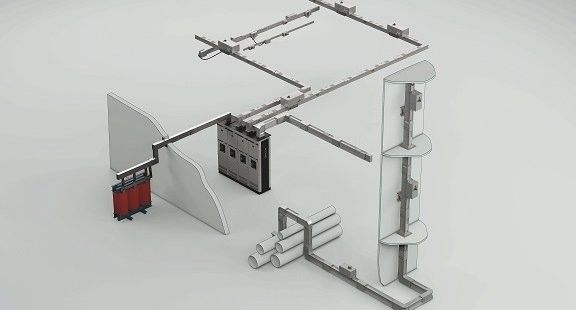

Bus duct is used for the effective and efficient supply of electricity in mostly industrial locations. Copper or aluminum is used for the conductor of bus duct that be insulated and enclosed completely for protection against mechanical damage and dust accumulation. A bus duct system is an effective method of distributing power to your switchgear and various loads. However, bus duct problems can lead to catastrophic damage and extensive downtime. Allow for the space requirements and weight of the bus duct. You may need to change other components or select a different style of bus duct for your installation. If you are installing bus duct outside, select a housing type that sheds rainwater - rather than pooling it on top of the housing. If you are going to install any part of the bus duct outdoors, use factory-installed pre-wired space heaters with integral thermostats to prevent condensation problems.

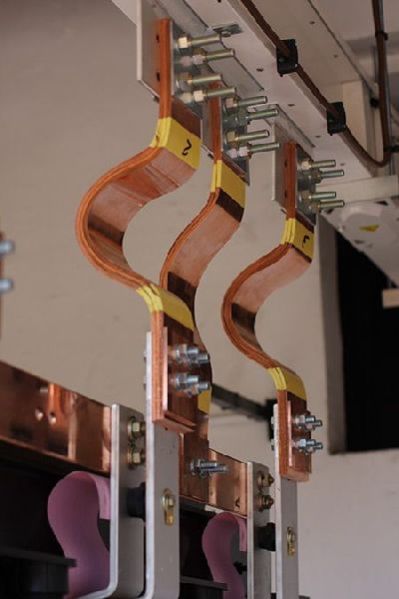

We Are Most Eminent Names In The Industry, Offering Wide Range Of Flexible Bus Bar That Are Manufactured With Perfection. Our Entire Product Range Is Light In Weight And Is Offered In Varied Thickness. Flexible Bus Bar Is Quality Tested And Is Abrasion Resistant In Nature. Features: Long Service Life Efficient Working Great Performance

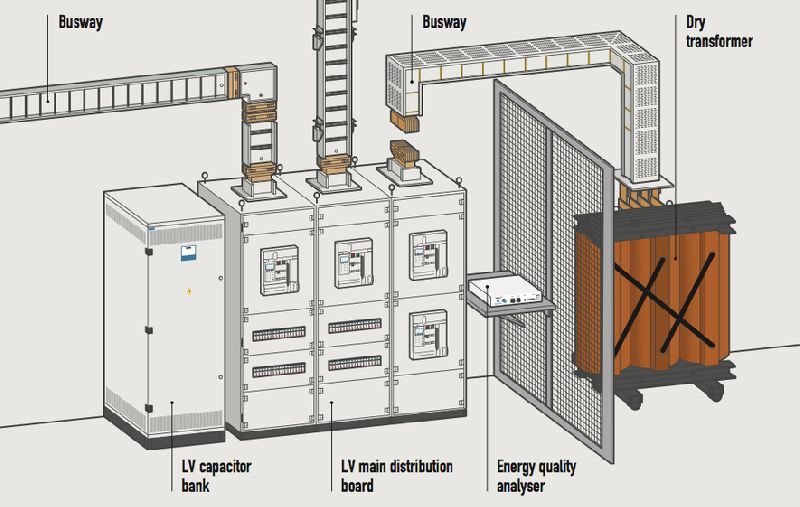

Main LT Panel, PCC With single, Multiple incomer, bus couplers with proper interlocking. Required protection, fault indications, interlocking is provided. Various designs are offered in PCC like top, Middle, Bottom Horizontal bus chamber, panel with aluminum/copper bus bars, top / bottom / front / rear cable termination, combinations of APFC Part with PCC. Required facilities like DG Incomer with AMF Functions, Cut-off of non-essential feeders at the event of failure of mains power. Panel with provision to connect bus duct at main incomer side.

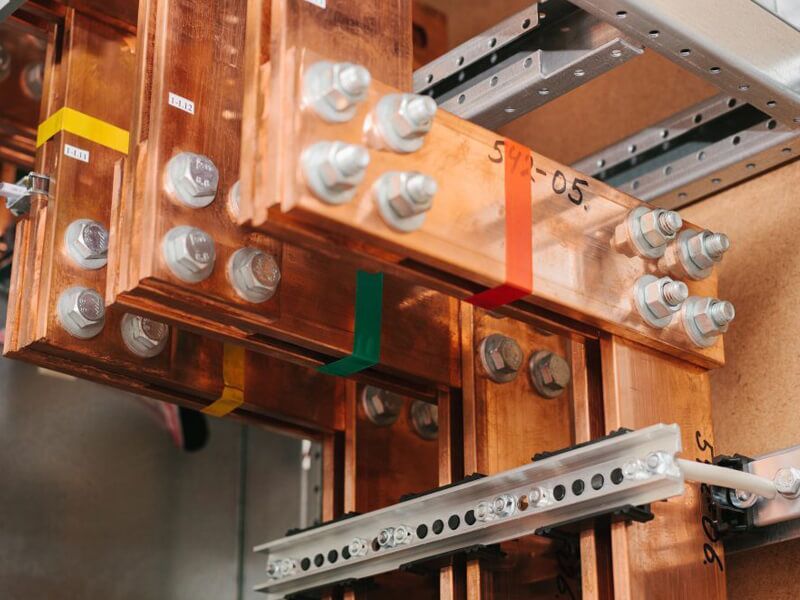

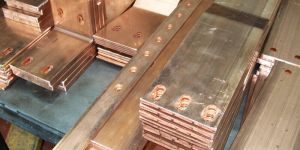

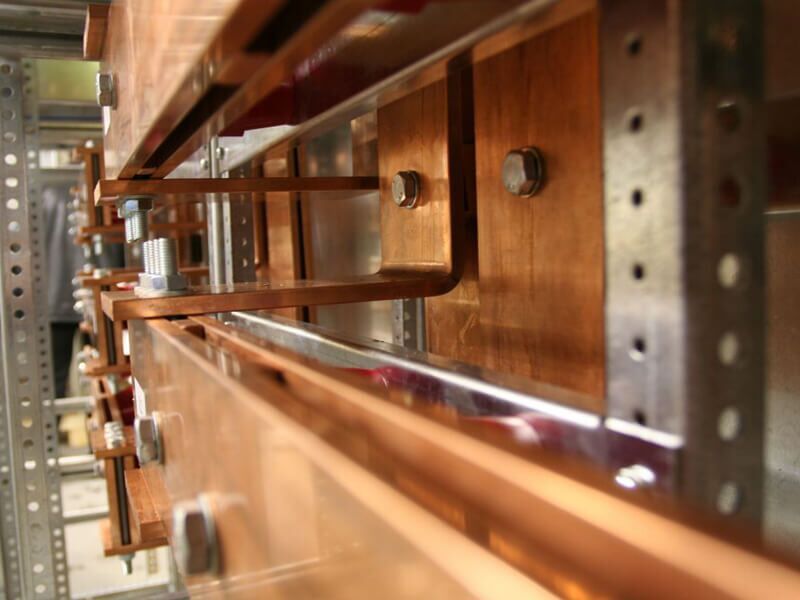

We are a leading manufacturer of Copper Bus Bars and Copper Flats. Our production range encompasses a wide spectrum of sizes. We offer flat bars with Corner radius, Full Radius and Sharp Edge. As an experience and reliable with fully integrated production, we have long been keeping pace with changes in the market. The latest trends involve additional alloying as well as Oxygen Free Copper - and we're involved in those things too. Use of Copper Flats / Copper Bus Bars : » Switchgear construction (low and medium voltage) » Power distribution systems (Bus Bars) » Transformers/Electrical components » Electrical Machine Construction » Wind Power » Automotives Width: 5 mm to 250 mm | Thickness: 1 mm and above Features of CML product: » Higher Conductivity for better current carrying capacity » Excellent dimensional control for superior contacts » Engineered for longer life » Customer Specification Solution » Crack Free Bends

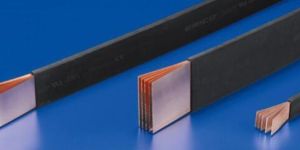

ERICO FLEXIBAR Flexible Insulated Busbar Characteristics ERIFLEX FLEXIBAR is UL® Recognized and CSA certified. The black insulation is moisture resistant, flame (VW-1) and UV retardant, and self-extinguishing (UL 94 V0). ERIFLEX FLEXIBAR connections are made by punching directly through the laminates. Since there are no lugs to purchase, fewer parts are required. Installation is simpler and faster. ERIFLEX FLEXIBAR is formed with multiple layers of thin electrolytic copper. Easily formed, ERIFLEX FLEXIBAR holds its shape, increasing the efficiency of your designs. When bending the conductor into place, its laminates slide freely within the insulation, conforming to your design configurations. Advantages of Using ERIFLEX FLEXIBAR Requires less installation space when compared to cable Reduces assembly time Eliminates the cost and installation of lugs Reduces the length and number of conductors ERIFLEX FLEXIBAR is terminated like a busbar, so connections operate at a lower temperature Improves design flexibility Easily formed and holds its shape Insulation allows for closer spacing than traditional busbar designs Improves aesthetics Reduces inventory costs Lower installed cost Comparison to Cable When compared to conventional cable, ERIFLEX FLEXIBAR requires less copper to achieve comparable ampacity ERIFLEX FLEXIBAR offers space savings No lugs or intermediate connection devices are used, improving reliability ERIFLEX FLEXIBAR eliminates the multiple cables and lugs which offers the most efficient and cost-effective connection available Applications Working temperature -25°C up to 105°C (-13°F up to 221°F) ERIFLEX FLEXIBAR AWM Style 11343 Nominal voltage = 1000 V AC/1500 V DC (IEC & UL®) Self-extinguishable High mechanical resistance High elongation value High current withstanding High copper quality (99.9% purity) High conductivity Any low voltage cable or busbar design is a candidate for ERIFLEX FLEXIBAR, including: Power Supplies and Converters Motor Control Centers Control Panels Busbar Systems Panelboards Switchboards AC & DC Drive Units Transformers Anywhere cable or busbar limitations present a problem, ERIFLEX FLEXIBAR offers connection versatility

DESCRIPTION: We have emerged as a leader in manufacturing and supplying in all type of LT and HT electrical panel board. For the fabrication of these products, we use quality grade material and modern technology. Designed and developed under the guidance of experienced professionals in accordance to international quality stand... Rated Current up to – 6300A Fault Level up to 100 kA for 1 Sec. Air Insulated Type – Conventional Non-Segregated & Segregated Interleaved Design for 4000A & Above Type of Support – SMC Busbar – Aluminium or Copper

We have emerged as a leader in manufacturing and supplying in all type of LT and HT electrical panel board. For the fabrication of these products, we use quality grade material and modern technology. Designed and developed under the guidance of experienced professionals in accordance to international quality stand...Rated Current up to – 6300AFault Level up to 100 kA for 1 Sec.Air Insulated Type – ConventionalNon-Segregated & SegregatedInterleaved Design for 4000A & AboveType of Support – SMCBusbar – Aluminium or Copper

Bus duct is used for the effective and efficient supply of electricity in mostly industrial locations. Copper or aluminum is used for the conductor of bus duct that be insulated and enclosed completely for protection against mechanical damage and dust accumulation.A bus duct system is an effective method of distributing power to your switchgear and various loads. However, bus duct problems can lead to catastrophic damage and extensive downtime.Allow for the space requirements and weight of the bus duct. You may need to change other components or select a different style of bus duct for your installation. If you are installing bus duct outside, select a housing type that sheds rainwater - rather than pooling it on top of the housing. If you are going to install any part of the bus duct outdoors, use factory-installed pre-wired space heaters with integral thermostats to prevent condensation problems.

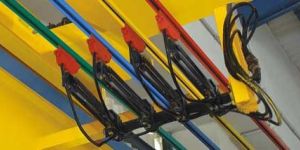

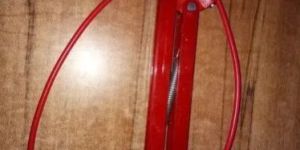

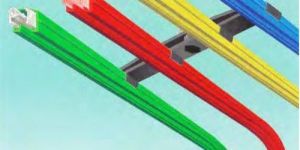

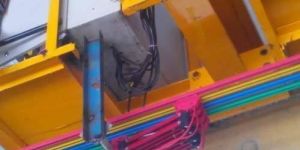

We are renowned as one of the prime Shrouded Busbar System Exporters from India. The unmatched quality and unsurpassable performance has attracted various national as well as international clients to place bulk orders. The use of optimum quality materials in the manufacturing of the Shrouded Bus Bar System also ensures high durability, tensile strength and resistivity to adverse conditions. Additionally, we also offer Shrouded DSL Busbar System that complies with the international quality standards. We offer high quality Shrouded dsl power feeding busbar system for cranes & hoists. The options are GI / Aluminium / CopperRating : 60 A. to 250 Amp. Advantages : Very safe , Economical , Very good looking , Maintenance free.
