Cake Making Machine Dealers in Rakhial, Ahmedabad

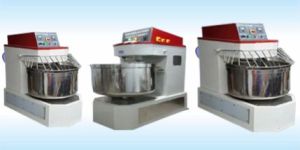

Spiral Mixers are available in different model options like SPN 25,SPN 50,SPN 100 and deliver efficient and consistent performance standards. These are applicable in Hospitality Sector, Bakeries and in Industrial Kitchens. Some of the standard benefits these mixers provide: Compact finish Easy handling High performance outputs Available capacities : Flour Capacity : 25 kgs, 50 kgs, 100 kgs Dough Capacity : 40 kgs, 80 kgs, 160 kgs Hourly Electrical Consumption : 3/4.5 Kw (4/6 HP),3.8/5.8 Kw (5/7.5 HP),7.3/3.75 Kw (10/5 HP) &1.125/.5625 Kw (1.5/0.75 HP) Available dimensions (L x W x H) : 625 x 1060 x 1245 mm 680 x 1120 x 1325 mm 915 x 1450 x 1360 mm Our Spiral mixer exhibit following salient features: Steady and compact Easy to handle Sturdy High performance Durable

Planetary Mixer is ideal for mixing of wet/dry powder materials. It has a homogeneous mixing action i.e. emulsions and semisolid. It integrates mixing, vacuuming, heating, cooling and homogenizing functions into single machine, resulting in a considerably reduction in cycle time. The basis of mixing system of Planetary Mixer is a combination of planetary- rotating paddle agitator. 2 Nos. Anchor type agitator with cross baffles rotates in anti-clockwise direction with planetary motion in there axis. While paddle revolves in clockwise direction with planetary action, generating a disturbance in the normally circular flow pattern and dampen vortex formation. The mixing blade and planetary action having dual speed. In addition, adjustable scrapers are utilized to prevent the build-up of a stagnant film between the agitator and the vessel, and assure efficient heat transfer to product during heating and cooling steps. The speed of the agitator and the counter paddle can be varied separately. The Product container is castor wheel mounted for easy load and unload to the machine. The top mixing blade assembly is motorized up and down during container loading and unloading. The mixing container is jacketed for heating / cooling and completely enclosed. The product container can be designed to operate under vacuum; mixing can then be performed without entrainment of air. Top lid of the product container having charging pot for binder adding, eye glass window and light glass. SALIENT FEATURES : Designed strictly compliance with the stipulation of cGMP Product contact parts AISI 316 Quality and Non contact parts S.S.394 Quality. Machine compact in designed single base structure to for simplicity in mounting. 2 Nos. Anchor blade with planetary rotation for extremely efficient shearing force. Top lid is mounted with motorized lifting device. Product container is castor wheel mounted for easy load and unload to the machine. Rigid drive with planetary gear and reduction gear box Dual speed motor for slow and fast mixing action. Scrapper is made from Teflon. OPTIONAL FEATURES : Ac Frequency Variable Drive. Mixing bowl with heating / cooling jacket and insulated. No. of Mixing Blade : Single Blade/ Double blade/Triple Blade. Type of Blade: Paddle Blade/ Anchor type/Hart Shape Blade Centre located and top mounting high speed homogenizer. SAFETY FEATURES : Emergency stop button Limit switch at top lid Over load protection by relay.

Electrically operated, fitted with heating jacket for thorough mixing of Bitumen. The mixer is operated by 0.5 HP single phase electric motor connected to epicyclic type stainless steel paddle to impart both planetary and revolving motion for uniform mixing. Mixer blade has low speed of 140 + 5 rpm and medium speed of 285 + 10 rpm, while it also has a planetary movement of 62 + 5 rpm in low range and planetary movement of 125 + 10 rpm in medium range. A stainless steel bowl of approx. 5 ltr capacity with handle is also supplied. The 500 Watts heating jacket with energy regulator to control the temp. is fitted below the bowl. Complete unit is supported on a strong iron frame. Suitable to work on 220V, 50 Hz, AC single

Small Machine of Detergent Cak

Automatic Planetary Mixer, Planetary Mixe

Deck Ovens, Rotary Rack Ovens, Spiral Mixer, Dough Moulder, Bread Slice

Detergent Cake Machine, Slotting Machines, Soap Machin
