Care Process Instrument Subhash Bridge, Ahmedabad, Gujarat

applications: with liquid-filled case for applications with high dynamic pressure liquid media that ill. Pulsations or vibration suitable for corrosive environments and gaseous or not obstruct the pressure system.process industry: chemical / petrochemical, power station, mining, on and off shone, environmental technology, mechanical engineering and plant construction.features: design : en387-1, agency approvals : cedial : 4” (100 mm.), 6” (150 mm.), 8” (200 mm.), white aluminum, case : ss_304 or ss_316 (ss=stainless steel).window : plain glass or safety glass.pointer : black aluminum, fixed or adjustable. Wide selection of connections and pressure ranges. Crimped ring or bayonet bezel.accuracy : 4”, 6”, & 8” : ± 1.0% (± 1.6% with filling).

Application : Chemical & Petrochemical, Plastic & Paper Pneumatic Control System, Air conditioning

End Connection : Screwed- BSP, NPT Male /Female /F Langed End

Humidity : Max. 90% RH non-condensing

Availability : Max 1/2 Kg.

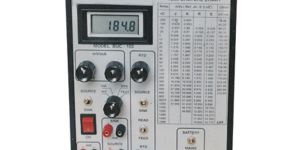

presents new & unique model of universal calibrator suitable for process instruments having mv, ma & rtd signals for calibration of all type of instruments. Compact battery cum power operated model buc – 103 which have source / sink facility by rugged mechanical connector & toggle switch. 4-½ digit large display, sufficient large scale for all ¾ sources, self-calibration facilities. specialty of our calibrator is rtd readings are direct in degree ‘c’ instead of ohms / resistance & can feed accordingly. Light weight easy to carry in bag. Mains operated as battery consumption will be less & restricted. features hand held, battery operated portable. source and sink for mv, ma and rtd. pt-100 reading directly in terms of deg c. typical accuracy 0.1%. Battery low indication. test facility to confirm dpm and stabilized circuit. light weight and with carry bag. only battery operated and battery cum mains operated. applications all digital and analog instruments related to all process parameters, instruments and sensors having rtd, mv, and ma inputs and outputs.

Availability : Max ½ Kg.

APPLICATIONS: With Liquid-filled case for applications with high dynamic pressure liquid media that ill. Pulsations or vibration suitable for corrosive environments and gaseous or not obstruct the pressure system.Process Industry: Chemical / Petrochemical, Pow er Station, Mining, on and off shone, environmental technology, mechanical engineering and plant construction.Features: Design : EN387-1, A gency Approvals : CEDial : 2” (50 mm.), 2.5” (63 mm.), 4” (100 mm.), 6” (150 mm.), white aluminum, Case : SS_304 or SS_316 (SS=Stainless Steel).Window : Plain Glass or Safety Glass.Pointer : Black aluminum, fixed or adjustable. Wide selection of connections and pressure ranges. Crimped ring or bayonet bezel.Accuracy : 2”, 2.5”, 4”, 6”, : ± 1.0%

Scale Range : 0..2.5 to 100 kg/cm2

Connection : 40NB & 50 NB Triclover Connection, 3/8″,½ ” BSP & NPT

Usage : Chemical and Petrochemical,Pharmaceutical, Dairy and Food & Beverage

thermowells provide safe and reliable pressure measurement, while meeting challenging applications such as: process market: chemical and petrochemical plants water and wastewater pressure control . medical and life sciences: pharmaceutical / biotech food and beverage .

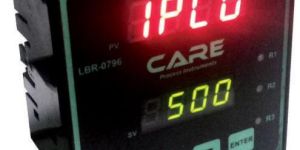

Specifications :- Micro Controller Based, Dual Display Dimension : Size : 96 X 96 X 60 mm Panel Cutout : 92 X 92 mm Supply : 230 VAC ± 10% 50 Hz Input : 4-20mA / 0-10 V/ 0-20 mA Range Selectable : -999 to 9999 Output : 1 Relay ,1 No/Nc/C TPS Supply : 24 VDC @40 mA

The Series 104 Differential Pressure Switch is a low-cost easy to use switch for very low pressure applications. The switch can monitor positive, negative, or differential pressure and with an easy to adjust set point knob makes field set up and adjustment hassle free. The differential pressure switch includes a SPDT relay rated for 2A @ 250V and can be set as low as 0.08″ w.c. (20 Pa).

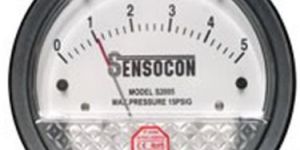

The Series S2000 and P2000 differential pressure gauges are low cost, diaphragm operated, mechanical pressure gauges. The S2000 and P2000 gage can be used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%. Standard applications include monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, and cabinet purging along with many others. Mounts in Industry Standard Holes Accuracy 2% Die Cast Aluminum Housing (S2000) ABS Housing (P2000) TECHINICAL SPECIFICATION   Pressure Limits :-20” Hg to 15 PSI (-0.677 bar to 1.034 bar) Media Compatibility: Air and compatible gasses Accuracy: +/- 2% full scale (+/- 3% on -0 and +/- 4% on -00) throughout range at 70°F (21°C) Temperature Ranges: 20° to 140°F (-7° to 60°C) Housing Material: Die cast aluminum case and bezel (ABS for P2000), with acrylic cover Process Connection: 1/8” female NPT duplicate high and low pressure taps – one pair side and one pair back. Weight: 1 lb 2 oz (510 g) Accessories: Two 1/8” NPT barbed fittings,two 1/8” NPT plugs, and three mounting tabs and screws Approvals: RoHS, CE

The Series S2000 and P2000 differential pressure gauges are low cost, diaphragm operated, mechanical pressure gauges. The S2000 and P2000 gage can be used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%. Standard applications include monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, and cabinet purging along with many others.

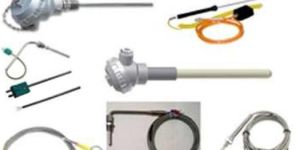

Class : Class-A / Class-B / 1/3 DIN / 1/10 DIN

Temperature Range : -200°C to + 600°C

We are a well reputed exporter, trader and supplier of Industrial Process Instruments. These are made up from quality grade material and offer excellent features like longer service life, accuracy and efficiency. We are a well known exporter, manufacturer, trader, wholesalerdistributor and supplier of a series of process instruments including Vacuum Gauges, Digital Pressure Gauges, Pressure Transmitters, Differential Pressure Transmitter, Thermometers, Thermostats, R.T.D. & Thermocouples, Infrared Thermometers, Glass Tube Rotameters, Metal Tube Rotameters, Acrylic Body Rotameters, Flow Transmitters, Digital Thermo Hygrometers, Air Velocity Meters, Anemometers, etc.

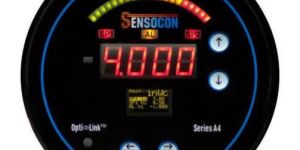

The Series A4 digital differential pressure controller is a patent pending microprocessor based pressure controller for positive, negative, and differential pressure as well as velocity and flow. The Series A4 differential pressure controller includes (2) 8A SPDT relays, and an optional digitally scalable 4-20 mA output. The programmable control allows full configuration of variables such as setpoints, dead band, engineering units, flow coefficients, and more. The programming is done from a user-friendly menu on the OLED display or with an Opti Link™ programming key. The OLED also displays the exact setpoints or other user defined variables during normal operation. Furthermore, the menu structure can be customized by moving variables to different menu levels to accommodate user preferences. Compared to other mechanical products, the Series A4 digital differential pressure controller has a significantly reduced depth, an improved look, and better performance. Techinical Specification Maximum Pressure: Ranges -00 to -05 = 2 PSI (13.8 kPa) Ranges -06 to -14 = 10 PSI (68.9 kPa)Media Compatibility: Air and compatible non-combustible, non-corrosive gassesAccuracy: 1.0%, 0.5% or 0.25%Temperature Ranges: Compensated and Operating: -10° to 140°F (-23° to 60°C)Thermal Effect: +/- 0.02% FS/°FOutput Signal: 4-20 mA (option)Loop Resistance: 750 Ω Max (for internally sourced power); 1800 Ω Max (for externally sourced power of 36 VDCPower Supply: Universal 24-240 VAC or VDCHousing Material: Glass Filled NylonEnclosure Rating: Designed to meet NEMA 4X (IP 65) face; with optional cover the entire product is weatherproofRelays:  (2) SPDT 8 Amps @ 250 VAC, 5A @30 VDCElectrical Connections: screw terminalsResponse Time: Display: 4 Digit, red LED, ½” (12.7 mm) digits; OLED programming displayProcess Connections: Push on connection for 3/16” (5 mm) tubingAgency Approvals: ETL, CE

Features: °C or °F Selection Laser Target Pointer Selection Automatic Data Hold Function Adjustable Emissivity Standard Acessories: Carrying Case and ManualDimensions: 165*72*41mm Technical Data:

Temperature Range : -30 °C to 550 °C(-22 to 1022°F)

Accuracy : ±3°C or ±3% of rdg,-30°C to 0°C(-22 to 32°F) ±2°C or ±2% of rdg,0°C to 100°C(32 to 212°F) ±3°C or ±3% of rdg, ≥100°C (212°F)

Measurement accuracy of ±3.0 %RH and ±0.3 °C Compact design with a high IP protection Large storage capacity: 32,000 data point memory Programmable start and stop time with the HW4 software MIN/MAX/AVG statistical function Includes HW4-lite programming and analysis software Clear LCD with visual alerts Appropriately long battery life (up to 3 years) FDA 21 CFR Part 11 / GAMP 5 conform software HW4

Availability : 85 g

Availability : 750 gms

Models:PHP 35 Compact, Light Weight, Hand Operated Combined Vacuum & Pressure Pump with Pressure / Vacuum Changeover option Generation (Range) of  Pressure: Upto 35 and Vacuum : Upto 0.9 Bar Fine Adjustment Vernier to realize upto 1 mBar Resolution / Sensitivity Very Low Leakage rate Flexible Nylon Hose (1 Meter) with Swivel Adaptor to connect devices under test Test Connection Port: 1/4″ (F) BSP, Gauge / Indicator Connection Port : 3/8” (F) BSP Weight (approx.) : 750 gms. Instrument Dimension (H x W x D) : 230 x 140 x 65 mm

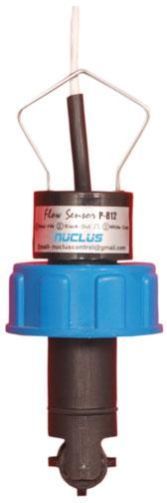

roduct Description Paddle Wheel Flow Sensor: Types of Sensor Installation Fittings: Weld Block S T Fitting with Threaded End S T Fittings with Stud End S. T Fitting with Welded Flange Weld Adapter   Applications: Water Treatment Filtration Systems Chemical / Pharmaceutical Bottling / Distillary Concrete Batching plant Textile / Process machine automation

The EE364 measures water activity (aw), oil temperature (t) and calculates the absolute water content (x). The measured values are available on two 4-20mA outputs and one digital output with MODBUS RTU interface.The analog outputs can be individually scaled and configured using the optional converter cable and the free EE-PCS Product Configuration software.

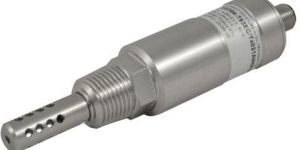

The EE364 is an innovative moisture in oil transmitter, suitable for OEM applications. The high measurement accuracy and excellent long-term stability make the EE364 ideal for online monitoring of moisture in transformer, lubricating and hydraulic oil, as well as diesel fuel.The compact design and rugged stainless steel housing allow a space-saving installation in the most demanding applications. The EE364 measures water activity (aw), oil temperature (t) and calculates the absolute water content (x). The measured values are available on two 4-20mA outputs and one digital output with MODBUS RTU interface.The analog outputs can be individually scaled and configured using the optional converter cable and the free EE-PCS Product Configuration software.

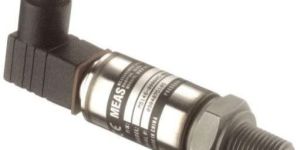

The M5100 series pressure transducers from the Microfused™ line of MEAS, set a new price performance standard for demanding commercial and heavy industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids. The transducer pressure cavity is machined from a solid piece of 17-4 PH stainless steel. The standard version includes a 1/4 NPT pipe thread allowing a leak-proof, all metal sealed system. There are no O-rings, welds or organics exposed to the pressure media. The durability is excellent. The M5100 exceeds the latest heavy industrial CE requirements including surge protection, and is over voltage protected to 16Vdc in both positive and reverse polarity. This product is geared to the OEM customer who uses medium to high volumes. The standard version is suitable for many applications, but the dedicated design team at our Transducer Engineering Center stands ready to provide a semi-custom design where the volume and application warrants.

Purity : APPLICATIONS

Range : Energy Generation and Management

Power Supply : 24 VDc

Mounting Type : head mount

Availability : 82.2 gm

Accuracy : -0.25% to 0.25 %

The M5100 series pressure transducers from the Microfused™ line of MEAS, set a new price performance standard for demanding commercial and heavy industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids. The transducer pressure cavity is machined from a solid piece of 17-4 PH stainless steel. The standard version includes a 1/4 NPT pipe thread allowing a leak-proof, all metal sealed system. There are no O-rings, welds or organics exposed to the pressure media. The durability is excellent. The M5100 exceeds the latest heavy industrial CE requirements including surge protection, and is over voltage protected to 16Vdc in both positive and reverse polarity. This product is geared to the OEM customer who uses medium to high volumes. The standard version is suitable for many applications, but the dedicated design team at our Transducer Engineering Center stands ready to provide a semi-custom design where the volume and application warrants.

Purity : APPLICATIONS

Range : Energy Generation and Management

Valve manifold is used for calibration systems. It is commonly used to regulate the flow of fluids with proper arrangement of the opening and closing of the device. Valve body is manufactured from high grade forged material. Material of construction is depends upon the application area of the valves. It provides leak tight seal. It contains screwed bonnet. It has single piece, weld less body. It is available in different manifold.

The M5100 series pressure transducers from the Microfused™ line of MEAS, set a new price performance standard for demanding commercial and heavy industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids.The transducer pressure cavity is machined from a solid piece of 17-4 PH stainless steel. The standard version includes a 1/4 NPT pipe thread allowing a leak-proof, all metal sealed system. There are no O-rings, welds or organics exposed to the pressure media. The durability is excellent. The M5100 exceeds the latest heavy industrial CE requirements including surge protection, and is over voltage protected to 16Vdc in both positive and reverse polarity.This product is geared to the OEM customer who uses medium to high volumes. The standard version is suitable for many applications, but the dedicated design team at our Transducer Engineering Center stands ready to provide a semi-custom design where the volume and application warrants.
