Compression Testers Dealers in Ahmedabad

"Saumya" Top Load Tester have various test application in plastic Industries application : It is a digital Microprocessor based control system used to check the buckling strength of PET bottles.It replaces huge tensile mc. if you want only compressive strength of any rpoduct it can be used as a pushpull gauge also.

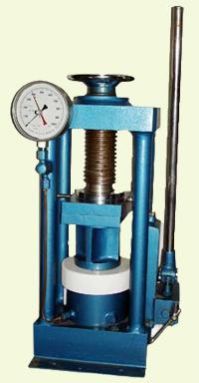

Introduction This machine is quite useful on field Laboratories or mobile testing laboratories or Vans which frequently change site or location. It is particularly useful where constant and consistent Electric power is not available. The load is applied manually and observed on a Pressure gauge. The Pressure Gauge has maximum load indicator which stand still even after the specimen under test crushes and has to be set to zero manually.   Salient Features High Stability Self-aligning platen assembly. Gauges are calibrated in Kilo Newton against certified Proving Ring. Suitable for testing cubes of various sizes Using special platens, bricks also can be tested. Hard chrome plated piston with new type of long life oil seal. Four Pillar Model - superior in design, reliability and accuracy Practically no welded parts, all joints reinforced with heavy nut/bolt to withstand occasional over loading and to ensure center loading. Rounded Corners – add to elegance and safeguard against injury Hardened and grinded platens with guide lines for placing sample for Testing   Optional Accessories (at extra cost) Spare Oil Seal Brick Testing Attachment Hydraulic Oil (Tin of 5 Liters)

The Equipment is known as Top Load Tester, Digital Crushing & Compression Testing Machine, Top Load Tester for Plastic Containers, Digital Crushing & Compression Testing Machine, Plastic Maximum Load Testing Machine, etc.

High Efficiency Reliable, Economical and Durable Compound machine for combined checking of vacuum and air Ranges up to 2000 kg/cm2 All Stainless Steel Construction Carbon Steel with stainless steel wetted parts Construction  Portable machines for on-site Calibration

A compression test determines behavior of materials under crushing loads. The specimen is compressed and deformation at various loads is recorded. Compressive stress and strain are calculated and plotted as a stress-strain diagram which is used to determine elastic limit, proportional limit, yield point, yield strength and, for some materials, compressive strength.

Specification for above Computerized  flexural & Compression testingmachine.:-1) Computerized  compression & flexural testing machine having 4line LCD display unit which shows Actual Load, ActualTravell Distance, Maximum Load & Travell at MaximumLoad2) Auto stop & Auto reverse facility3) Over Load & Over travell Facility4) Digital display unit can save last 5 samples readings5) you can do compression & flexural tests in the same   machine6) Single & Double Load cell available for multiple testing    capacities7) Imported guide rods & Linear Motion Bearings for    friction less and vibration less travell.8) Distance calculation through Encoader for high accuracy.9) Unit selection KG, N & KN10) AC/DC Vareable drive for speed variation11) Software programme which show  the graph for Load V/S      Elongation.12) Speed control through Software Programme.

This New Product Standard Digital Carton Box Compression Testing Equipment is designed for testing the compressive strength of the packaging containers to avoid product deformation, damage and other adverse phenomenon in the product handling, stacking.

The digital compression testing machine has been designed to meet the need for a simple, economic and reliable means to test concrete for its compressive strength. The design expressive of simplicity, both of construction and operation, makes the machine easy to use and maintain. The unit is compact, making it useful for site and Laboratory applications. The digital machines are provided with a pace rate controller, to enable maintain a constant of loading. Features High stability four column load frame Each frame tested for stability and alignment to avoid tension failure during a test and to ensure centre loading Standard Platens for 3 X 6”/ 4 X 8” and 6 X 12” cylinders included. A precise large diameter spherical upper platen for optimum results Variety of optional accessories for cubes, blocks, bricks and flexure test available Motorized hydraulic power pack or pumping unit with rapid approach and automatic overload protection Comes standard with safety Guards on all four sides. The Complete unit comprises a Loading Unit which is of fully welded or two pillar model construction having a cross-head with a spherical seated platen. The lower platen is attached to the top of the piston. The Loading capacity is of 2000 KN, Cubes up to 200 mm & Cylinders up to 150 mm Dia X 300 mm Height can be tested using the appropriate spacers. Pumping Unit with choice of compact power pack attached closely to the loading unit or separate hydraulic pumping unit, attached to the loading unit by high pressure hydraulic flexible hose pipe. The pump facilitates rapid approach of the platens for daylight closure and also provides comprehensive control over the application of load. A control valve provides fine control over the loading rate for accurate pacing. Maximum load is held and retained for approx. 15 min, unless cancelled, using the panel mounted reset switch. Pace rate set for running the test can be maintained manually. Model With digital Readout and pace rate Controller Type of Pumping Electrical Loading Range 2000KN Least Count 1 KN Max. Clearance Between Platen 370mm Max. Clearance Between Side Platen 340mm Platen Size 220 mm sq. Piston Stroke 215.00 mm Optional Fittings Digital Load indicator with RS 232 interface for connection to windows XP based computer system Digital Load indicator with printer interface Batteryback up for Digital Load indicator – in case of power failure Additional Pressure Gauge as `stand by` load indicator for emergency use in case of power failure Spare Oil seal Flexural test attachment (to be ordered at the time of purchase of machine.) Can be accommodated later on, only if request received at the time of placement of order Brick test attachment Block testing attachment Spacers to accommodate small size cubes and cylinders Hydraulic Oil Ram extracting tool

Compression Testing Machines (All Models) Analogue, Digital, Micro Processor Based and Automatic Compression Testing Machines (AIM 302 - AIM 320)   Concrete is a man-made material, essentially mixed at site. The properties of concrete depend on the properties of its ingredients and their proportion and it is likely to  vary from mix to mix. Tests must be conducted, therefore, to ensure that the concrete used is in accordance with design specifications. A frequent test, is the test of compressive strength, in which concrete samples are tested to failure. Compression Testing Machines : Aimil Series Compression Testing Machines are the finest of their types available. Their rugged construction and extreme simplicity makes it possible for even non- echnical personnel to operate them with ease and complete dependability. In particular, the portable units, which are small in dimensions, sturdy and light in weight, make quality control testing possible in areas where commercial testing facilities are not available and where the transportation of larger and much heavier machines would be difficult.Aimil Compression Testing Machines conform to IS: 14858(2000) and calibrated with an accuracy of ± 1% as per the requirement of 1828(Class1) . It can also be supplied as per BS : 1881 and other associated International Standards. These machines are available in 50kN, 100kN, 500kN, 1000kN, 2000kN, 3000kN & 5000kN Capacities. Compression Testing Machines Classification : Analogue models. Digital models with pace rate indicators. Micro Controller based models with automatic pace rate controllers. Fully Automatic models. Salient Features of Compression Testing Machines are : High stability. Self-aligning platen assembly. Load Gauges are calibrated in kN against certified Proving Rings, traceable to NPL / NCCBM. Suitable for testing cubes and cylinders of various sizes. Using special platens, bricks can also be tested. Logged data printing facility through a parallel port interface available in digital and micro controller ased versions. Calibration process accreditated by NABL (National ccreditation Board for Laboratories). Machines with CE mark also available, on special equest. Operator’s safety features like metal door with a erspex window and overload tripping device are  provided in all models. Application Compressive Strength Measurement Industry Civil Infrastructure Cement/RMC Construction Chemicals Dams & Tunnels Fly Ash Irrigation Railways Sleepers Real Estate Refractories Roads, Highways & Bridges Education Architecture Building Technology Civil Department Geotechnical Science Colleges Metal & Material Tiles & Ceramics Special Applications Fly Ash Traffic & Transportation Railways Roads, Highways & Bridges

The concrete is a man-made material, essential mixed at site. The properties of concrete depend on the properties of its ingredients and their proportion, and it is likely to vary from mix to mix. Tests must be conducted, therefore, to ensure that the concrete used is in accordance with design specifications. It is a frequent test of compressive strength, in which concrete samples are tested to failure. For Compression test on Concrete or Similar materials, suitable for use on Concrete cubes of any size upto 5cm x 5cm x 5cm, 7.06 x 7.06cm, 10cm x 10cm x 10cm, and 15cm x 15cm x 15cm also on 10 x 20cm and 15 x 30cm high concrete cylinders. The load is applied through hydraulic assembly. The lower platen is on the Hydraulic Ram, and upper having a spherical seating is adjustable. The machine is provided with an air release valve and the load is automatically indicated on the 15cms dia hydraulic pressure calibrated against an N.C.B.M. tested Proving Ring and fitted with a legless max pointer in addition to the ‘live’ pointer. Features: High stability, Self-aligning platen assembly, Gauges are calibrated in kN against certified proving rings Suitable for testing cubes and cylinders of various sizes Using special platens, bricks can also be tested Hardened and grinded platens with guide lines for placing sample for testing. Compression Testing Machine, Hand Operated 25,000 kgf (250 kN- Channel Model) double plunger pump with hydraulic pressure gauge with our own Calibration Report. Compression Testing Machine, Hand Operated 50,000 kgf (500 kN- Channel Model) double plunger pump with hydraulic pressure gauge with our own Calibration Report. Compression Testing Machine, Hand Operated 100,000 kgf (1000 kN- Channel Model) double plunger pump with hydraulic pressure gauge with our own Calibration Report. Compression Testing Machine, Hand Operated 100,000 kgf (1000 kN- Pillar Model) double plunger pump with hydraulic pressure gauge with our own Calibration Report. Compression Testing Machine, Hand Operated 200,000 kgf (2000 kN – Channel Model) double plunger pump with hydraulic pressure gauge with our own Calibration Report.
