Compression Testers Dealers in Roorkee

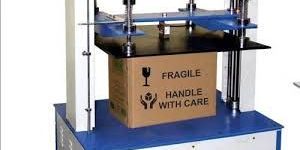

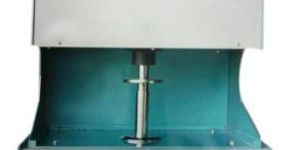

DIGITAL MODEL : Heavy Duty tester to determine the compression strength of corrugated & non-corrugated boxes. The instrument provide the Digital Display of load and elongation. Complete with memory for retaining peak value., automatic or normal zero setting, AC/DC drive provide the variable compressive speed overload and over travel protection facility. Measuring range 1000 & 2000 Kg. Platen size 500mmx500mm, 1mtrx1mtr.   Microcontroller Based System : Heavy duty tester to determine the compression strength of the corrugated box. Load range selected to completely collapsed as peak load or may be with pre-determined load for a given period to evaluate stacking load. Imported AC/DC drives provide the variable compressive speed. Measuring range 1000 Kg. or 2000 Kg. Platen size 500mmx500mm, 1mtrx1mtr.   Computerized BOX COMPRESSION Tester - Monitoring is done through the FBI MONITOR SYSTEM which is a PC-based laboratory data acquisition system designed around the unique operating system such as WINDOWS 9X, ME & XP. The software makes automatic calculations through COMPUTER MICROPROCESSORS and presentation of measured strength values, arithmetic mean, peak value, selection and conversions of units of Kgf or K N. The graphical strength presentation of the test series Vs time is there. All of which ensure accurate and stable test weights. Measuring range 1000 Kg. or 2000 Kg. Platen size 500mmx500mm, 1mtr x 1mtr. Labview based computer software for visual display.

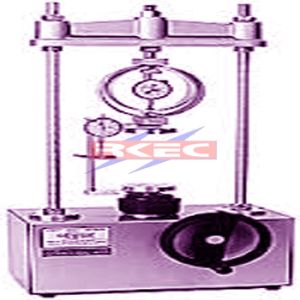

Unconfined Compression Test Apparatus many a time it is essential to know unconfined compressive strength of soils saturated or nearly saturated.These results give an idea of the bearing capacities. Unconfined samples are unidirectional loaded gradually till failure in the test.

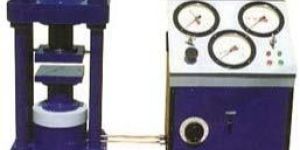

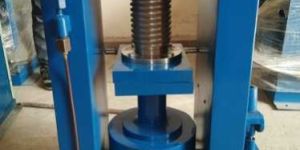

Specification:-A compression testing machine consist of a load frame with suitable platens and a pumping unit with pressure gauge either hand operated or electrically-cum hand operated.We have a range of compression testing machine capacity from 10 tonnes to 200 tones in different models.

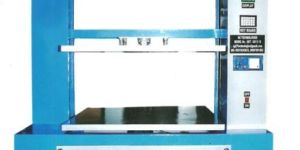

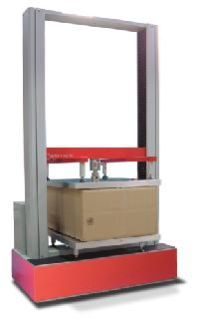

We are engaged in manufacturing and supplying of Box Compression Strength Tester. The Box Compression Strength Tester is designed to measure ability of the container to resist external compression loads during transit and storage. Corrugated and solid fiber board boxes are subjected to compressive forces when stacked and during transportation. It is vital to determine the Compression Strength of the Box in order to make sure that the Box will be able to resist the anticipated compressive forces and to determine the load that the Box will be to withstand during transit and storage. Compression Strength Tester also serves as a useful index of overall quality of the material and workmanship of the Box. The Box Compression Strength Tester is suitable for Testing as per the standards IS 7028 (PART VI)-1973 7028 (PART IX)-1975, TPPI T-8040 om-89 and ASTM D 642-90.Model : SGT-G015/A   Features Force : A precision load cell is used to measure the applied forces and a linear transducer measures the test sample deflection. Construction : The construction is of “A” frame type. Crosshead Assembly : Motor driven ball screw, for fast and accurate operation, reposition the crosshead assembly. Power Pack : The power pack and all the controls are in a separate cabinet, and both are Micro-processor Based.   Salient Features Direct Digital Readout of compression strength Available in capacities : 0-1000 kgf & 0-2000 kgf Peak and hold facility provided Testing speed : Minimum 10.5 mm/minute Provision of faster speed for approach and return to top of specimen Provision for termination of test at pre-selected load

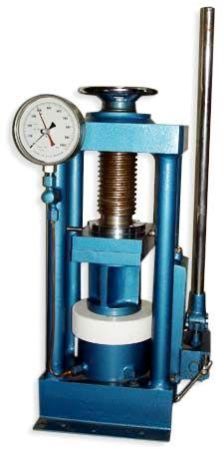

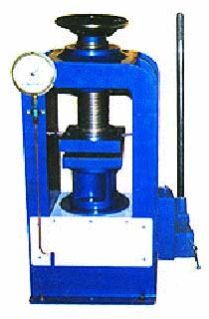

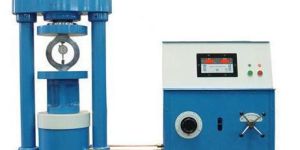

We are prominently engaged in providing Compression Testing Machine to the customers. The Compression Testing Machine is a part of soil testings instruments and is widely used by the clients from all over the world. Concrete Compression Testing Machine is designed to meet the requirements for various Indian, British and American standards for testing cubes up to 15 x 15 x 15cm and cylinders up to 15 x 30cm high of concrete for the compressive strength. Specifications : Compression Testing Machine capacity 100 TON hand operatedPressure gauge 0-100 TON capacity for the above machine Description : The Hydraulic Jack of 100 tone capacity is fixed to the base. The lower platen is on the hydraulic ram and upper having a spherical seating is adjustable for initial clearance. The loading is accomplished by the upward movement of the lower platen. The lower platen and the upper platen of the machine are hardened ground and polished. Guidelines are marked on the lower jack. A dust cover is provided to prevent any dust from going into cylinder. A spacer block with a center locating pin is provided to test small specimen. The double plunger pump special type is hand operated. The load is indicated on 150mm dia dial hydraulic pressure gauge graduated 100 Tone x 500 kg division. Total division in dial 200 nos. A maximum red pointer is provided to facilitate for taking of the reading after the specimen under test fails. Setting Up : The oil is filled in the oil tank. Fix the machine on the foundation by bolts so that there is no shaking of the machine at the time of operation. Operation : Open the air release screw from the inlet of oil tank. Open the adopter of the pressure gauge. Tighten release valve and operate the hydraulic pump with the handle. When few drop of the oil will come out from the adopter of the pressure gauge, immediately open the release valve. Fix the pressure gauge, with the adopter of the pressure gauge. Tighten release valve and place the specimen on the lower platen, upper platen be brought. The lower platen is automatically upstart when you will operate the hand pumping unit with the handle. Check that the nuts are properly tight and there is no leakage. Start the machine by operating it with handle. Start giving load by operating it with handle, ram will start rising and the load with start increasing on the specimen and pressure gauge will show the load. As soon as the specimen is break the needle will indicate it and the black needle will automatically come back to zero. Release the release valve. If you are to start the machine again tighten the release valve and operate it as done earlier. Caution : The pump should never operate where there is no or little oil in the pump tank. Open the air release screw when operate. Oil is in full quantity in the oil tank filled by us and you need not require putting it in the tank. Please check the oil with the oil level. Note : The oil in the machine is TRESSO 40 from ESSO Oil Company. The equivalent of this grade of oil can also be used. Normally a change of oil in the system is advisable under normal use. But this period can be increased or decrease accordingly to the use of the machine. Maintenance : Keep the platens, greased to prevent against rust. Remove the lower platen when not in use. Remove the spacer block.

Box Compression Tester, Paper Cutters, Paper Instrument

Box Compression Tester, Pulp Testing Instruments, Paper Testing Instrument

Box Compression Tester, Brightness Tester, Bursting Strength Teste

Hydraulic Compression Testing Machine, Theodolite, Nautical Compas

Box Compression Tester, Bursting Strength Tester, Paper GSM Teste

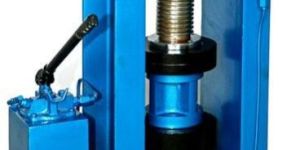

Hand Operated Ctm, Brass Binocular, Antique Brass Globe, Porthole Mirro

Compression Teste

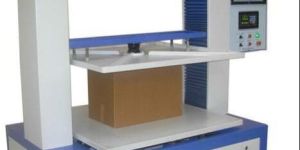

We are offering Box Compression Strength Tester. Box compression tester measures the compression strength of the corrugated box. The system is made of a set of plates one is attached to the load measuring arrangement and the other is movable plate. This plate moves with the help of motor, gearbox, and screw and nut arrangement. We manufacture this tester with good and high quality raw materials. They are tested with standards quality. Compression Strength Tester also serves as a useful index of overall quality of the material and workmanship of the Box. Suitable for Testing as per following Standards. IS 7028 (PART VI)-1973 7028 (PART IX)-1975 TPPI T-8040 om-89 ASTM D 642-90 kgf. ? Peak and hold facility provide. ? Testing speed: Minimum 10 ? 5 mm/minute. ? Provision of faster speed for approach and return to top of specimen. ? Provision for termination of test at pre-selected load Available in capacities: 0-1000 kgf & 0-2000.
