Chain Blocks Dealers in Ahmedabad

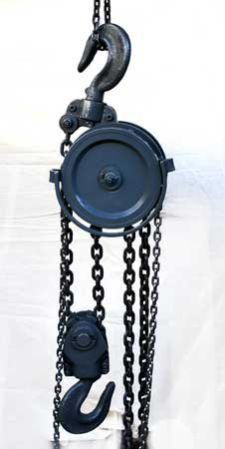

Chain blocks, Robust design for high strength. The chain pulley block is tested at 125% overload before dispatch. Lubrication: Totally enclosed gear case is packed with sufficient grease. Test Certification is provided for all Safe Chain Pulley Blocks.

We offer Power - Master Hand Operated Chain Pulley Blocks that are designed & manufactured in accordance with IS: 3832. Our products render good performance due to their premium quality. The Hand Operated Chain Pulley Block has the capability to lift a load up to 3.0 meters. Features : Minimum efforts involved in lifting load Self-braking system for holding the load in any position Even loading of bearings Easy Installation & Maintenance Compact design

Chain Pulley Blocks find extensive usage in various heavy dusty industries like molding, dyeing, casting etc. These blocks are designed for long and dependable services. The name of our company surfaces prominently among the trusted Suppliers of Chain Pulley Blocks from Gujarat, India. Our Chain Pulley Blocks are assembled with screw & friction disk type brake that ensures full safety at all positions.

The company is one of the reliable Manufacturers, Suppliers and Exporters of the best quality Chain Pulley Block. Chain Pulley Block is made using the best quality raw material under the guidance of our professionals. Our Chain Pulley Block can lift heavy weights and are available in varied specifications. Technical Specifications : Capacity : Started from 500 kg to 10,000 kg Application : Suitable for loading & unloading of material Lift height as per customer requirement

Features:· Heavy Duty: Class II Manufactured as per IS Tested at: 50% Overload Hooks: As per IS: specsLoad Chain: 8 mm, Grade 80, Alloy Steel MaterialLoad Chain Wheel: S.G. Iron Casting – Accurately pocketed, internally grinded for longer life of Main ShaftBraking Mechanism: Screw & Friction Disc Type – Self actuating Hand Chain Wheel: Pressed Steel – Accurately pocketed, Smooth Hand chain Pulling operation Gears: Alloy Steel Material, precise machined, gear hobbed & case hardened – duly annealed. Gears shall be lubricated with a semi-liquid grease instead of oil, which is less likely to leak, eliminates oil level checks and clings to the gears even after long idle periods. Design Type Test: Accomplished successfully as per the requirement of IS: 3832 -2005 (4 times load – lifted for 5 minutes – Once at the time of design stage) Endurance Type Test: Accomplished successfully as per the requirement of IS: 3832 – 2005 (100 Hrs. running on Block at speed of Hand Chain of 20 Mtr./Min – Once in Six Months)

We offer Chain Pulley Block. Power - Master Hand Operated Chain Pulley Blocks are Designed & Manufactured in Accordance to Is: 3832 and Equivalent International Standards. Features : minimum Effort to Lift the Load self-braking System for Holding the Load in Any Position even Loading of Bearings ease of Installation & Maintenance compact Design load Chain alloy Steel Chain Gr-80 as per Is: 6216 Uniformly Electrically Resistance Welded Duly Heat Treated for Ductility, Toughness and Wear Resistance. Chains are Accurately Calibrated for Smooth Running in Chain Sprocket. Hooks : forged Hooks as per Is: 8610 and Fitted in Upper-arm and Bottom Block Made Out of Heavy Duty Malleable Castings.g. Iron. Ball - Bearings : chain Pulley Block Will have Two Ball-bearings for Smoother Running On Load. Load Chain Wheels load Chain Wheels are Malleables.g. Iron Casting with Accurate Chain Sprockets for Smooth Running of Chain. Gears gear Blanks are Made Out of Nickle-crome Alloy Steel. Accurately Machined and Teeth Generated On Hobbing Machines for Involute Corrected for High Bending Stress and Low Wear. All Gears are Hardened and Tempered for Minimum Wear. Hand Chain Wheel accurately Sprocket Chain Wheel Made Out of Graded Casting as per Is: 210 Shall Be Provided. Brake self Actuating Type Load Pressure Brake of Screw & Friction Washer Type Ensures Safety At all the Position. Trolley the Trolley is Geared Type with 4 Wheels Driven By Hand Chain and Has Provision for Mounting the Chain Pulley Block. Trolley is Designed to Suit the Standard I-beam Size.

We are Chain Pulley Blocks Manufacturer, Exporter and Supplier from Rajkot, Gujarat. Our Chain Pulley Blocks are available in various specifications to cater the variegated demands of buyers. The product is high in quality, compact in size and excellent in performance. Customers can purchase Chain Pulley Blocks at the most competitive rates from us.

We offer technically advanced Chain Pulley Block that is designed to offer excellent performance with high speed. Our Industrial Chain Pulley Block is characterized by high efficiency and smoothness in lifting operations of loads. Today, we are counted among the prominent Hand Chain Pulley Block Manufacturers based in India. MM - 28 CHAIN PULLEY BLOCK

Chain Block, Chain Pulley Block, Chain, D Shackle, Electric Chain Hois

We are engaged in manufacturing, exporting and supplying a qualitative range of our chain pulley block, which is light in weight and easy to handle.

Safex chain pulley blocks are designed manufactured in accordance with IS 3832 are available in Hook suspension type

Chain Pulley Blocks and Trolleys, Chain Hoists, Electric Wire Rope Hoist

Chain Blocks, Wire Rope Hoists, Chain Pulley Block, Vital Chain Bloc

Crane Chains, Textile Machiner

Chain Blocks, Roller Chain Sprockets, Tyre Couplings, Chain Attachment

Chain Blocks, Engineering Products, Allied Product

Chain Pulley Block, Safety Items, Welding Electrodes, Welding Machin

We are offering es series chain pully block.
