Concrete Batching Plant Dealers in Ahmedabad

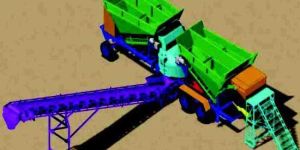

We are offering mobile concrete batching plant. The mobile concrete batching / mixing plant is a very resourceful product of stecofab’s machinery; the plant can produce wet concrete with various capacities from 12m3/hr. To 25m3/hr. Capacity. This is fully automatic plant with electronic load cell type, weighs batching system for aggregates, cement, water and additive. The pan mixer suspended with 3 load cells for weighing of aggregate, cement, water and additive. The recipes selection is to be entered and based on the number of batches selected, all operation are carried out fully automatically i.e. If the plant is set on ‘auto’ mode then weighing of aggregate, cement, water and additive and discharge from mixer are all carried out according to the sequence, for the number of batches selected.

We design and develop an ample range of high grade Mobile Concrete Batching Plant that is manufactured from the optimum quality raw materials. We are well reckoned as the most predominant batching plant exporter and one of the leading suppliers for the same. Our mobile concrete batch plant is designed by our qualified engineers to provide maximum output to the valuable clients. Corrosion resistive property, high durability and excellent performance are some of the salient features of our mobile concrete batch plant. Four Bin System 4 Bin aggregate feeder units with a storage capacity of 2.5M³ each. Feeder bins are mounted on individual loading conveyor. Loading Conveyor Aggregates are discharged sequentially according to the predefined sequence of loading into the mixer by the loading conveyors (500mm X 3 Ply) Chevron Belt. Mixing Unit The mixing is carried out in a Pan type-mixing unit of capacity 0.5m³.The Mixing is carried out with the help of pedal arms, which ensures homogenous mix. Discharge Conveyor The discharge conveyor powered by 7.5HP motor is 900mm X 3ply, endless belt with a discharge height of 2.3 mtrs. Cement Hopper with Screw Conveyor Cement hopper of storage capacity of 50 bags of Cement is employed along with a screw conveyor powered by a 5HP motor is used for discharging the cement in the mixer. Water Pump 2HP water pump is used for dispensing water in the mixer. High Pressure Jet Cleaner System for Mixer Microcontroller Based Control Panel Auto, Hand & Manual Mode. The unit is Fully Dust Proofed. Accommodates 5 different type of mix Recipes. Material Weight Error Indicator. Wired Remote operated System. Emergency switch provided on panel as well as on remote unit operating on 24 V. Electrical motors are provided by O/L Relays & MCB as a back fuse. 1-Inch Digital LCD Display. Stationary Concrete Batch Mixing Plant Capacity - 30 Cu.mtr. / hr. Mobile Concrete Batch Mixing Plant Capacity - 20 Cu.mtr./ hr.

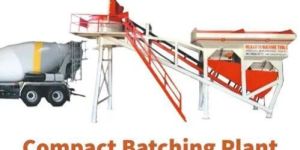

Concrete Batching Plant is used for grinding and mixing of construction material, which is used for making roads. Concrete Batching Plant manufactured by us is a very dependable for many types of projects. The Concrete Batching Plant supplied by us delivers high performance. Promising Highlights Of Concrete Batching Plant : High-speed performanceMade of durable materialCost-effectiveEasy to maintain

When it comes to premium quality Concrete Batching Plant, then Mortek Machinery Pvt. Ltd is known as a one stop destination to obtain the same. We are a prestigious Manufacturer & Supplier of Concrete Batching Plant. This automatic batching equipment is provided with electric scale for accurate measurement. Features With electric scale With belt conveyor discharging���  With one-way discharging It is automatic batching equipment Can automatically carry out batching procedures of sand, stone etc., according to batching requirement Equipped with electric scale, microprocessor control system and digital display device Accurate weighting, high precise batching, high efficiency, strong control ability and easy to operate etc. Combined with corresponding JS series concrete mixer

We are the paramount Concrete Batching Plant manufacturer located in India. We are into the business of manufacturing concrete batching mixing plant and mobile concrete batching mixing plant which is approachable with several technical specifications. These specifications assist us in meeting the furious demands of the users. Concrete batching mixing plant is available with the intricate designs and appreciated for its sturdiness. These are portable and easy to operate. We comply with Indian and international quality standards which marked our products as safe and reliable. FOUR BIN SYSTEM 4 Bin aggregate feeder units with a storage capacity of 2.5 m3 each. Feeder bins are mounted on individual loading conveyor. LOADING CONVEYOR Aggregates are discharged sequentially according to the predefined sequence of loading into the mixer by the loading conveyors Chevron Belt. MIXING UNIT The mixing is carried out in a Pan type-mixing. The Mixing is carried out with the help of Padel Arms, which ensures homogenous mix. DISCHARGE CONVEYOR The discharge conveyor powered by 7.5 HP motor, endless belt with a discharge height of 2.3 mtrs. CEMENT HOPPER WITH SCREW CONVEYOR Cement hopper of storage capacity of 30 bags of cement is employed along with a screw conveyor powered by a 5 HP motor is used for discharging the cement in the mixer. WATER PUMP 2 HP Water pump is used for dispensing water in the mixer.High Pressure Jet cleaner System for mixer. MICRO CONTROLLER BASED CONTROL PANEL Auto & Manual system.The Unit is Fully Dust Proofed.Accommodates 5 different type of mix receipes.Material weight Error Indicator.Emergency Switch provided on panel as well as on remote unit operating on 24 V.Electric motors are provided by O / L Relays & MCB as a back fuse.1. inch Digital LCD Display.

We offer best quality Concrete Batching Machine that is manufactured using finest grades of raw materials. Available in mobile as well as stationary units, the concrete batching plant, offered by us appreciated for their high precision, low maintenance and effective performance. Besides this, these are also available in diverse production capacities as per the desired needs of our customers. We are called upon as one of the most eminent batching plant manufacturers and suppliers from India. These are easily available and at the most nominal prices.

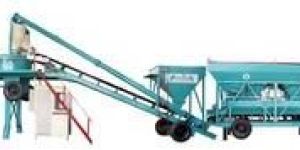

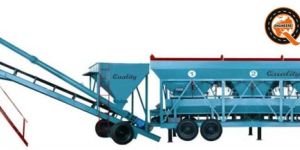

We are offering mobile concrete batching plant.30cu.mhr. (two hopper divide in four bin type) gathering belt 800mm width and load in conveyor is 600mm width is used. aggregate and sand is weighing in gathering belt and cement and water is weighing at the top of mixer in the separate load cell system. mix material output at the 2.5 meter height (height of the pan mixer). four bin capacity 2.5 cu. M per each bin. Total 10 cu. M. Power requirement : pan mixer: 30hp x1440 rpm with planetary gear box. gathering conveyor motor will be 5 hp x 1440 rpm � 1no. load in conveyor motor will be 5 hp x 1440 rpm � 1no. cement t screw conveyor � 10hp x 1440 rpm. water pumps 3 hp x 1440 rpm. additive pump 0.5hp x 1440 rpm. vibratory motor: 1hp x 1440 rpm at the four bin & 0.5 hp x 1440 rpm at the cement filler. four load cell is used for weighing sand and aggregate at the gathering conveyor. Cement and water has separate load cell assembly at the top of the mixer. pan type mixer of the 0.75 cu. M capacity fabricates from 10mm plate with easy replaceable liner.

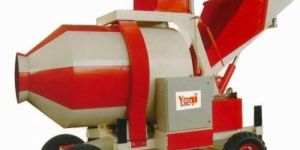

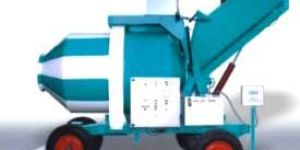

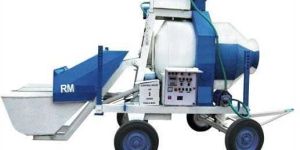

We are offering Concrete Batching Mixer Plant. we hold specialization in providing to the clients supreme quality mini reversible concrete batching mixer plant. mini reversible concrete batching mixer plant is extensively used for grinding and mixing of construction materials used for making of roads. this concrete batching mixer plant is precisely engineered and delivers high output. consequently, we are counted amongst most trustworthy concrete batching mixer plant manufacturers, suppliers and exporters from india. features : compact design durable fast mix minim space requirement smooth operation easy to handle low maintenance cost longer service life applications : highways airports railways optional accessories : 3 bin aggregate mobile storage bin system feeding screw conveyor system of cement manually operated load out belt conveyor for effective release of concrete mixture.

The batching concrete batching plant does not need any prior groundwork. It’s possible to generate a huge amount of mixture in one place over for a longer period and then easily move on to the new place. The container frame of a mobile batching plant is easily equipped with the draw hook that allows a plant to be towed onto a truck with the hook hoist. On the other hand, it can be also lifted onto the truck with the crane.

We are a celebrated Manufacturer, Exporter, and Supplier of cutting-edge Mobile Concrete Batching Plant in India. Most of the functions of the Mobile Concrete Batching Plant can be realized on a chassis like electrical weighing, collecting, lifting, and mixing. Mobile Concrete Batching Plant has easy installation and is portable. The Mobile Concrete Batching Plant is used at building sites and to produce base of bridges, roads, bridges, aerodromes, dams, etc. Salient Features In facility online printer system A single chassis model mobile batching mixing plant Re calibration is not required in change of installation plant Accurate electronic weighing system is reliable & fast Completely mobility free transportation Promote after sales & services & spares backup Free technical guide & online support Loading of aggregate & sand hopper by tractor mounted feeding Loader JCB Separate weighting system aggregate cement water & additive is dosing in system fast & accuracy high Plant only requires electric power supply, water connection aggregated, sand feeding Low investment, low maintenance Easy disassembling and pre-assembling Low cost and high efficiency

Concrete batching plants are produced as mobile batching plants, semi-mobile batching plants, stationary batching plants, winter plants, dosing stations, and special plants. All Concrete batching plants are economical to use, highly flexible solutions, and easy to make ready for production. The operating system for Moon Concrete Batching Plants is also easy to operate and requires no previous knowledge. Mobile batching plants provides you with excellent flexibility. Mobile batching plants from Moon are produced in several variants, ensuring that we are always able to cover your specific requirements.

Model QE-20 is a fully automatic, compact Mobile Concrete Batching Plant on single chassis with two nos. rear axle & one no. swiveling front axle. The towing arrangement in the plant facilitates it to be towed by tractor or equivalent power. The plant comprises of adequate capacity gravel & sand hoppers with conveyors, Pan type mixer unit, electronic load cells, water tank, cement silo with screw conveyor, Rubber belt type discharge conveyor, PLC based control panel and three axles fitted with pneumatic rubber tyres.

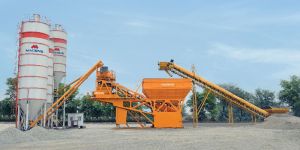

MACONS introduces MAC Model, especially designed for the production of concrete at sites where the quality, flexibility and performance are key features to consider. The flexibility of this plant begins in the different arrangements available. Four types of mixer models can be selected with a broad range of models: Single Shaft Mixer, Twin Shaft Mixer, PAN type Mixer and Planetary Mixer. The main advantage of this plant is that it doesn’t require large foundations and others civil constructions. The time and money can be saved by easy transportation, assemble and disassemble when plant is shifting from one site to another site. The constitution of the plant is made in welded construction of steel profiles. The complete structure is shot blasted before the primary coat of paint being implemented. There are two coats of paint of the color is being applied. Including elements like stairs, balconies, pavements, discharge mouths of the aggregates bins to resist to the attacks of the weather situations. It’s easy to disassemble, transport and assemble again. In one week we assemble your plant in a new site producing concrete, saving you time and money. Salient Features • Available in 25 to 135 m3/hr. capacity. • Compact and economically designed. • Heavy duty structure. • Plug-on & Operate” concrete batching plant. • Less space required because of its compactness. • Civil Foundation work is very fewer as compact design. • Negligible owning & operating cost. • Longer life of wear & tear parts. • In-built control cabin. • Especially quick erection & commissioning. • Inbuilt pipeline of water, additive and pneumatic. • Tilting type control cabin for easy transportation. • One operator can run the plant. • Single Shaft and Planetary Mixer Available on request. Optional • Cement / fly ash storage & conveying system from 20 to 200 MT capacity. • Microwave Moisture Meter. • Computer SCADA System with software. • Radial Conveyor Belt for Aggregate Feeding Technical Specification
