Earth Leakage Relay Dealers in Ahmedabad

• Brand Name: ELLICO
• Supply voltage: 230V AC , 50 HZ, ± 10% , 415V AC , 50 HZ, ± 10%
• Relay Contact: 1 C/O with 6 Amp(Resistive)
• Leakage Current Range: 0.5 to 2.5A,0.5-5A, 2.5 to 5A,0.3A to 3A
• Tripping time: 100 mSec
• Reset: Manual
• Indication: Power ON, Trip
• CBCT types: 70 mm, 110 mm, 200 mm, 300 mm
• Operating temperature: -5°C to +60°C
• Enclosure: Metal Box
• Weight: 0.572 gms
• Dimension (HXWXD): (140 X 83 X 70) MM

• Brand Name: Mistura
• Material: Abs
• Color: Black
• Application: Indistrial
• Size: 96x96x50
• Certification: CE Certified

Model ELR-9611 Dimenssion (HxWxD) mm 96x96x50 Panel Cutout (mm) 92x92 Input  30mA to 3.00A AC30mA to 30.00A through External CBCT Output  Relay 1 For Tripping Accuracy Class 0.5 Supply 85-270VAC,50/60Hz

• Voltage: 250 V
• Number of Poles: 2 Pole
• Current: 12A
• Coil Type: Latching
• Dimension: 96 x 96 mm
• Voltage Type: AC
• Panel Cut Out Flush: 90 x 90 + .1mm

• Usage: Generator control panel , Distribution Control panel , Protection control panel

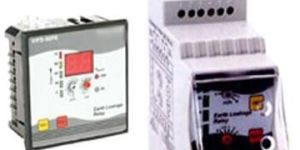

• Brand Name: VERITEK
• Voltage: 230 V
• Model Name/Number: Vips 98Pf
• Current: (0.03,0.10,0.30,0.50,1.0,3.0,5.0,10.0,20.0 & 30.0 A)
• Type: Industrial Relay

FEATURES   => State Of Art Microcontroller Based Design=> Bar Graph To Indicate Leakage Current In Percentage=> Consistent Reliability With High Accuracy=> User Programmable Trip Level Through Rotary elector Switch=> SToroid Open Circuit Detection=> Facility To Seal Front Cover To Avoid Tampering Of Set Points=> Optional: Relay At 50% Of Set Point Caution On Leakage Current
