Efficient Engineers Kathwada, Ahmedabad, Gujarat

Features:-Highly efficient hydraulics design No expensive foundation required.-Easy installations, Small Floor Space. Fabricated Components, Less Friction in System(Pressed Components).Applications:-Can handle Liquids up to 120* C.Boiler frrd, condensate transfer. - RO. DM plants.Booster applications, Hydro pneumatic Systems, Fire fighting.Industrial washing, coolant circulation.Sprinkler irrigation, etc. Moc:-Sealing :- Carbon - Ceramic, SC/SC,TC/TC All wetted parts are of SS-304 / SS-316 Bushes:- Tungsten carbide Motor Support, Foundation base :- cast iron.

All Wetted Parts of Pumps Are Made From Investment Casting Horizontal Self Priming Side Channel/ Segmental type open vane wheel impeller. Also with flame proof motors Can available in Multistage design Low NPSH required Very Quick Priming, No Need of Foot Valves. Suction Capacity Up to 8 Meters Able To Handle Temperature Up To 80° C. MOC : SS-304 / SS-316 / SS-316 L Seal : Mechanical Seal  Application:-   All Clear Liquids Without Solid Suspensions Like Clear & Non Abrasive liquids, Water, DM Water, Mineral Water, Solvents, Light Chemicals Petroleum Products etc. High head Delivery / Booster Service Washing Equipments Barrel Transfer Water Treatment Plants

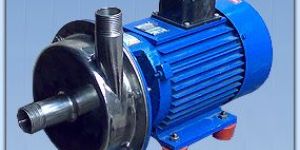

Horizontal Centrifugal Close / Semi- Open/ Open type Impeller Design Minimum working / rotating parts Safe and quite operation levels. Suitable for standard motor or flange type or foot cam flange type motor Monobloc or bare pumps Also with flame proof motors Economic, Efficient & Easy in Maintenance MOC : SS-304/SS-316/SS-316 L Seal: Mechanical Seal Application:-   Ideal for handling of Water, DM/DI Water, Mineral Water, Hot Water, Pharmaceuticals Liquid Drugs & Syrups, Milk, Butter Milk, Soft Drink, Beverages, Solvents, Acids, Alkalis, Light Petroleum products etc. Acid and Light Chemicals Colour Dyes and Pigments Booster Application Water Treatment Plants, RO Plants

Head : 3 to 76 meters

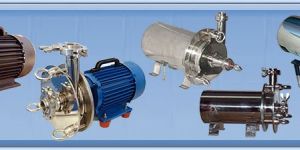

Applications:-  Milk,Cream, Butter Milk Condensed Milk Water Treatment Plants Colour & dyes and Pigments / Pains Natural Cellulose Fiber / Synthetic Fiber System R O Water, DM Water, Pure Water. Water for Injection (WFI) Pharmaceutical Formulations, Syrup etc. Fruit Juice, Beer, Wine, Sugar Syrup Vitamin Solutions, Sugar & Confectionery. Descaling Applications, Paper & Cement Industries Detergent, Soaps, Paste & Shampoo Textile Sizing, Dyeing & Finishing Systems Alkaline Solution / Alcoholic Drinks. Acids, Fine Chemicals Bottling Plants, Soft Drinks & Distillery Food Processing/ Liquid Food Stuffs Hot & Cold Water Pumping. Features:- As all Pumps are made from rolled stainless steel, mechanical properties are far superior then cast material. Designed for CIP (clean in place) or manual cleaning pumps are highly efficient and requires less NPSH to function without cavitation pump can handle liquids having viscosities up to 1500 centipoise The pumps can work under a vacum of 720 mm of Hg, suitable for vacuum evaporators. Dynamically combinations of seal faces as per customer's requirement (Single seal / double seal, seal external cooling) Suitable for standaed motor or flange type pr foot cam flange type motor or engine Monobloc or bare pumps or with trolley Also with flame proof motors Various types of connection like-triclove joints SMS, flanges or threaded nipple/coupling pumps with adjustable legs, available on request pore free, non-pitting and non-adhering smoother surface, so less friction losses, and less crevice corrosion. Super finish surface also ensure no ingress or emission of germs or impurities during pumping or idling which is basic requirement of sterlie / hygienic application Pumps are available with open/semiopen impellers. The best elastomers are used in the pumps to provide optimum resistance for high temperatures and chemicals. minimum working / rotating parts safe and quite operation levels. Gentle product handling with lower maintenance and downline cost.   Pumps with higher capacity and head available on request Pumps which We deliver has   Superior quality Value for money Higher efficiency Innovative design Responsibility of product/performance/ service Trouble free performance Product customization Rapid delivery of both custom & standard pumps     or even seal less in special application

Features :- ideal for handling hot water or some chemicals a part from dirty water & clear water sturdy construction made from graded cast iron/gunmetal/stainless steel very economical price at present available up to 2 HP, but can be made up to 7.5 HP as per customer's requirements. Application :- for cooling of equipments, hot water handling, mild chemicals, dirty water and application where mono blocs are not recommended.

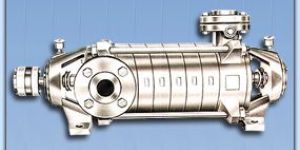

Special Features:- LOW NPSH Requirements. Capable of de-airing long suction lines. Can pump liquid + gas mixtures. Minimum axial thrust leading to longer bearing life. Non overloading power characteristics. Low noise level. Application:- Boiler feeding and condensate pumping. Filter presses and Hydraulic Presses. Booster Service. Mine drainage. Dust Precipitation. Sprinkler System. Water supply in hilly areas. Multi Storage buildings. In descaling equipments. Washing equipments. To handle fuel oil, petrol, diesel, gas and other light chemicals.

Capacity : - upto 14 M3/hr.

Head : - upto 213 meters.

Speed : -1450 RPM

Excellent quick automatic priming action without foot valve up to 8 mtrs. Back pull out design, so easy maintenance without disturbing pipe lines. Minimum parts, fast repairing at low cost, Also pump is available at economical rate. Monobloc pumps can be able to with wide voltage fluctuations. Less expensive & easily available spares. Easy to install:- only the suction hose is immersed in the liquid, the pump can be set up high and dry in the most convenient position for inspection and maintenance. Long Life:-The parts subject to wear can be easily replaced one or more times to restore the original performance. Application:- Dewatering Basements, Trenches, Construction sites. Any application where priming is to be avoided. Industry : Transfer of clean or dirty neutral, acid or alkali liquids containing sand, mud or solids in suspension; clean or dirty low viscosity petroleum products or solvents: milk of lime, caustic soda; washing, cooling, circulation; smoke scrubbing; emergency duty. Waste treatment : Pumping polluted, hot or corrosive water containing sand, mud or solids in suspension; dosing neutralizing liquids; pumping out settled sludge.

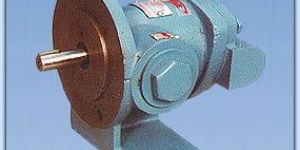

Special Features :- Unidirectional flow designs. Very high suction lifts & low noise level. Single piece shaft supported by self lubricating bearings on both end for long life of pump. Pulsation free continuous flow. Compact & light weight. High volumetric & overall efficiency.   Application:- Lubricating oils, fuels and all liquids which has lubrication properties. Emptying barrels and tanks of oils. To increase fuel oil pressure for oil burner service and fuel injection pressure. Pressure lubrication and cooling of bearings, oil circution through cooler, gear lubrications etc.

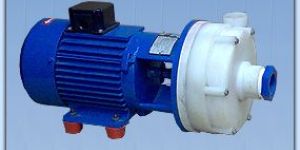

PP pumps are Specially design for highly corrosive liquids.Casing are made from injection molded poly propylene (Single piece).Semi-Open impeller made from UHMW for Low NPSH Performance.Pumps are fitted with Teflon-carbon gland packing or Teflon bellow mechanical seal.SS 316 Shaft Protected with ceramic sleeve.The pumps are also available in monoblock version.   Application:- Highly corrosive, Acids, hydro carbons, effluent, slurries, Caustic solutions.The pumps are used in gas washing plants, Rayon plants, For Corrosive acid & basics.Electroplating Solution Circulation & itching Solution for electronic circuit board. Filter Press for dyes, Decaling.Picking of Steel in Cold Rolling Mills.

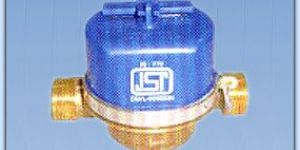

Single / Multi Jet Class A & B, 15mm-40mm (1/2"-11/2")   An inferential, Single / Multi jet, Super dry, Straight reading type, hermetically / vaccum Sealed water meter with magnetic drive.Standards:- Complies with class A & B of IS-779 / 94 also ISO & EEC. & ISO 4064 Class B. Features:- Highly Sensitive to low flow rates and very accurate over is entire flow range. Sealed against tampering. Totaliser leakproof, totally dry. Long maintenance free life. Self lubricating gears & bearings. Brass / Cast iron Construction Having low loss of head which allows water to reach upper floors. Options:- Remote reading facility / pulse output Hot Version available up to 90 °C. Also Available, Magnetic Flowmeter, Mass Flowmeter, Ultrasonic Flowmeters, Rotameters etc. Zenner / Minol Water Maters with EEC Mark.

Salient feature :- Food graded grinding blade Auto off and auto cleaning Continuous running at low voltage Flour Mill are with washable filter Digital balance rotor and motor coding system   Low Power consumption due Special CRNO Stamping Special type of double cutter system for fine grinding millet and jawar Chamber with attractive Zinc Plated cutter and bitters so no Corrosion occurs Cabinet and made up of new wood- teak wood and special digital control system for different

Features :-  available from 0.16 HP to 5 HP Std ranges are as per IS 2161 available in 1 phase / 3 phase All motor are with class 'B' insolution, class 'I' & 'H' available on request Capacity from 40 Lpm to 600 Lpm Flame proof motors available on request Available in different MOC like cast iron / stainless steel / gun metal etc. Single stage to 24 stages. Head from 2 mtr to 230 mtrs. All motors are rated for continuous duty Application :- Cooling for turning, grinding, Milling circulation, temperature control, filtration, edm wire cut, cnc machines.

Application:- RKB are used for general water supply sprinkling, irrigation and booster plants, for the circulation of water, delivery of condenste and boiler feed water and fire fighting pumps.     Materials

Pump With, All Gun Metal/Bronze/S.S. Construction Can Be Supplied Against Specific Requirement.   Materials of Construction

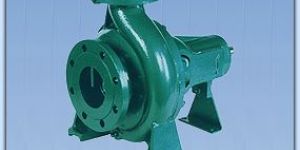

BCP Series Centrifugal Pumps Are Horizontal Back Pull Out Design, Single Suction and having dimension correspond to Din 24256 / ISO 2858 with end suction and top center discharge design The pumps are also available with semi open /open type impeller for liquid having suspended particle some solid and  abrasive in nature Either soft Packed gland or Various mechanical Seal can be used as per liquid to be handled.The design permits dismantling of the complete bearing unit towards the drive end, without the pump casing having to be disconnected from the piping. Application:- For pumping clear  turbid water, chemicals &  Volatile liquids Air conditioning plants, Power Stations Mine drainage, Sprinkler System, Fire fighting,  booster Service oils, petrochemical, fertilizer, sugar, paper and other process ind.

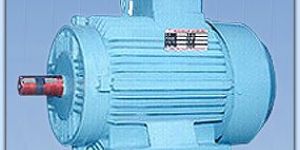

Special Feature:   Range :- Reliable Ind. Has a wide range of standard & special motors. It market motors from frame size 63 to 250 in 2,4,6 and 8 pole design. Standard :- Dimensions  are as IS: 1231 electrical Specifications are as IS:325 Voltage & Ferq. :- Motors are designed for 415 V + 6%, 3 Phase, 50 Hz+3% 230 V+6% in 1 Phase supply. Any other change required in supply of Voltage & frequency available on request. Winding :- The Stator winding is of copper wire covered with Synthetic enamel. The slot insulation materials is of very high dielectric and mechanical strength is used. Rotor :- Specially high pressure aluminum die-cast ed rotor with dynamically balanced which ensures low vibration and long bearing life. Insulation Class :- Provided with class E insulation system. Application :- All kind of pumps, Blowers, Fans, Lathes, compressors, Lifts, Hoists, Cranes, Extruders etc. Also for larger equipments and plants. Special Motor are made on regards.
