Engraving Machine Dealers in Ahmedabad

Overview of CNC Engraving Machine ME II 4242 The machine is based upon an upgraded DX-3525 machie, which is one of earliest mould making machines in the market. This is an extremely popular model. To satisfy the needs of market, we increased the precision and the efficiency of this model. This is very sturdy machine with a high quality - price ratio It is equipped with a 1.5 kw spindle and a water coolant and can satisfy the basic mould making requirements. This machine is capable of making electrodes for EDM and steel mould dies.

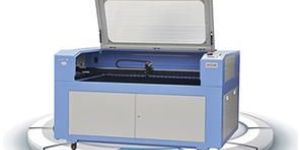

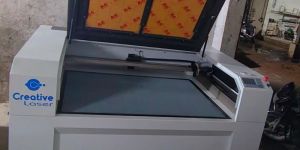

Features of elita 32 â�¢ special design of carriage where 2" lens or 5" lens both can be used. 5" lens gives you better quality of cutting, if the thickness of material is more than 10mm and 2" lens should be used for cutting media less than 10mm thickness. Â�¢ high quality touch panel display - very easy to use â�¢ pass through design for long length of work piece in y-axis direction â�¢ machine is provided with foot-mounting legs so that there is no vibration in machine and machine can be adjusted on zero level â�¢ as it is made in india, no waiting period for spare parts & quick service support â�¢ machine is provided with heavy duty compressor which has air-assist combining adjustable focus systems in coaxial jet air to prevent cutting edge from burning down â�¢ laser cut software with window based software enhance cutting speed and angel curve performance â�¢ laser seals the edges of fabric while cutting â�¢ maximum cutting thickness of acrylic - 20mm â�¢ high quality of chiller unit for better performance and long life of laser tube technical specifications of elita 32 x, y cutting area : 3' x 2' (918 x 610 mm) laser power : 80w travelling speed : 0.1 to 400 mms reposition accuracy : â±0.025mm minimum letter size : 1 mm (english font) x y movement system : linear guide way z - axis movement : manual power adjustment : 0.1 to 100% maximum cutting thickness : up to 20mm acrylic driving system : stepper motor operating system : windows xp, windows 7 32bit interface : usb interface supported format : plt, ai, dxf, bmp working voltage : single phase 220v50hz (require earthing) running environment : 45â°c, humidity 5% - 80% operating display : touch panel memory buffer : 100 mb (max. 33 files) overall dimension : 1200 x 1780 x 1060 mm weight : 243 kg power consumption : 2 kw

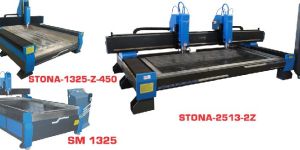

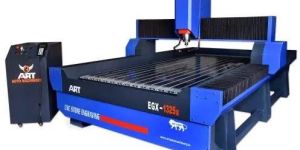

Features of Mehta CNC Stone Engraving Router Machine • Profiled Steel Welded Lathe Bed, Stabilizing treated under artificial prescription ensures minimum distortion, excellent rigidity and vigorous strength.• Precise traveling of Y axis driven by double motors ensures stable performance of machine.• High Precision rack transmission ensures high accuracy, fast speed and strong power.• Imported sqaure linear guide rail ensures high accuracy, maximum work load and service time.• Best Mechanical and electrical design with well selected brand parts minimum breakdown rate.• Overall dust proof and water proof design protects all moving parts of machine.• Filtration system provided which filters the cutting oil from stone dust and re-circulate cutting oil ongoingly.

Simple and easy operation of ‘Laxmi’ Exposing Machine guarantees an extremely perfect exposure. One end of the robust frame contains drive motor, clutch, & electronic controls.The motor drives a ground shaft carrying the inflatable tube and rotary screen.The opposite end of the shaft is supported by a special bearing which can be lowered and hinged back.   Removable pneumatic inflatable tube on the driving shaft established screen during operation. Two centering rings position the screen. The machine can trickster repeat height and full printing width, and with the help of ruling device transfer repeat height and apart of printing width. Ruling device consist of trolley which is mounted on bearings carries a marking point. By means of a repeat stoppers, ruling and marking-device identical marking can be reproduced exactly on any number of screens.The light source comprises of U.V. cold light fluorescent tube in dome arrangement.The tube attain their full power immediately after switching on with comparatively minimum heat radiation.

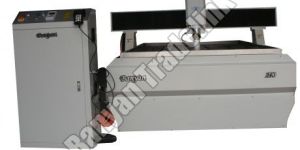

The machine is based upon an upgraded DX-3525 machie, which is one of earliest mould making machines in the market. This is an extremely popular model. To satisfy the needs of market, we increased the precision and the efficiency of this model. This is very sturdy machine with a high quality - price ratio It is equipped with a 1.5 kw spindle and a water coolant and can satisfy the basic mould making requirements. This machine is capable of making electrodes for EDM and steel mould dies.

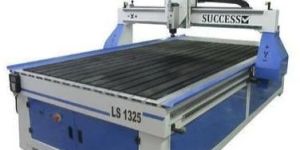

Designed with our passion and commitment to cater the engraving industry, Gravieren series machines will be your first choice for any kind of 3D engraving work. A solid casted structure provides excellent vibration dampening, and yields the superior surface finishes needed to produce 3D molds, stamps, and dies of the best quality. Different supporting materials are Stainless Steel, Mild Steel, Oil Hardened Nonshriking Steel, Die Steel, P20, EN31, Copper, Brass, Aluminium, Plastic, Rubber, Wood, Stone, Acrylic and Granite. Features: Rigid Casted and Machined Main Structure Extremely Economical option that serves Best Quality, Accuracy and Precision Good Ergonomics High Precision Ball Screws with LM Guide in all Axis with Flexible and Disk Type Couplings Microstepper Motor in all Axis / Panasonic Servo Motor in PRO model 4KW Water Cooled Spindle DSP Handle / Hust H6 series premium controller in PRO model Very Good Repeatability upto

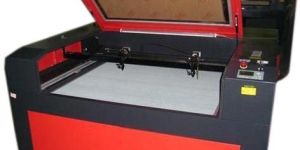

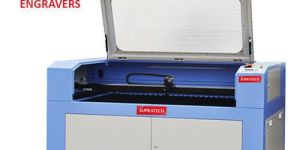

Application: Plexiglas, Acrylic, Wooden Board, Plastic, Crystal, Rubber, Ceramic Tile, Bamboo, Granite, Marble, etc. (Non – Metal Materials) Configure Higher Power Laser Tube. Owns Functions of Restoring From Power Off, Continuation On BreBreakPoint transmit Files Directly From CorelDraw, AutoCAD etc.

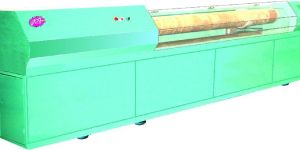

The Digital Printing Laser Engraver, which is creative and advanced at home and abroad, applies to rotary screen-printing and integrates laser technology, precision mechanism manufacture technology and computer control technology. Laser controlled by digital information from color separation system engraves points on the nickel screen coated with sensitive glue to make the digital information reduced in lattice and by making use of the function of laser instantaneous ablation, we can obtain quires patterns.
