FFV Process Solution Rakhial, Ahmedabad, Gujarat

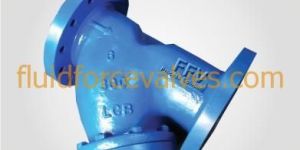

FFV make Y Type Strainer Bolted Cover,Self Cleaning by opening the blow-off connection.Strainers are employed in pipelines to protect downstream mechanical equipment such as Condensers,heat exchangers,pumps,compressors,meters,spray nozzles,turbines and steam traps from the detrimental effect of sediment,rust,pipe scale or other extraneous debris. On-off type or modulating type FFV make control valves are widely used for machinery, and plant engineering for steam controlling lines,thermic fluid lines,various liquid lines,heat exchanger,pumps pipes lines & gases.   Features A pipeline strainer is a device which provides a means of mechanically removing solids from A flowing fluid. This is accomplished by utilizing a perforated metal, mesh or wedge wire straining element. The most common range of strainer particle retention is 1″ to 40 micron (0.0016″).

Size : 15 mm to 200 mm

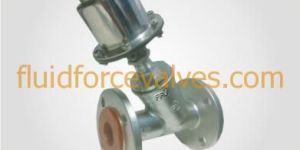

FFV Manufacture Y-type Pneumatic Flow Control valve is designed for quick opening and gives high flow, non-water hammering and are specially designed for on-off Application. It is widely used in control of air, gas, steam, oil, water in textile, power generation, atomic energy, paper pulp,dry cleaning machines, dryers, sterilizers, autoclaves,food Production plants, chemical and petrochemical industries etc.   Features FFV Y type Control Valve have High flow capacity Compact,Light weight,Easy to install and maintain Small actuator, low air consumption Gland Packing is self adjustable,self-regulating seal & self cleaning Simple design,Easy to assembly Valve can be assembled in horizontal,vertical or angled position   Seat / Seal Teflon (PTFE) / Metal Seated VITON/ EPDM, Buna Nitrile Gland Packing Self adjusting, spring loaded Teflon Media Air,Water,Oil,Gas & Steam Ends Screwed type, Socket welded type, Flanged type, Triclover End (BSP/ NPT)

Size : 1/2" to 2"

FFV make Hinge Pin Design Non return Wafer Check Valve.   Features Hinge Pin Design assures free movement of the Disc and eliminates seizure under extreme conditions. Manufacturing Std: API 600 Testing & Inspection Std: API 598

Size : 25 mm to 600 mm

End Connection : Wafer type

Safety Valve (Pressure Relief Valve) which automatically releases a substance from a boiler, pressure vessel, or other system, when the pressure or temperature exceeds preset limits. Also pilot-operated relief valves could have the function of safety valves. Safety Valves are used on Pressure equipments,Containers or Pipeline as over Pressure in the equipment increase and exceeds allowance.the valve can automatically open to discharges some mediums to prevent the pressure keeping raised.when the pressure decreases till to the stipulated value,the valve can close in time to avoic the pressure too much reduced,so that normal production will be carried out.

Size : 1/2" to 4"

A rotary union is a union that allows for rotation of the united parts. It is thus a device that provides a seal between a stationary supply passage (such as pipe or tubing) and a rotating part (such as a drum, cylinder, or spindle) to permit the flow of a fluid into and/or out of the rotating part. Fluids typically used with rotary joints and rotating unions include various heat transfer media and fluid power media such as steam, water,thermal oil,hydraulic fluid and coolants.A rotary union is sometimes referred to as a rotating union, rotary valve, roto seal,rotary couplings,rotary joint,rotating joints,hydraulic coupling, pneumatic rotary union,through bore rotary union,air rotary union,vacuum rotary union. A rotary union will lock onto an input valve while rotating to meet an outlet. During this time the liquid and/or gas will flow into the rotary union from its source and will be held within the device during its movement. This liquid and/or gas will leave the union when the valve openings meet during rotation and more liquid and/or gas will flow into the union again for the next rotation. Often functioning under high pressure and constant movement a rotary union is designed to rotate around an axis. A rotary union’s design can be altered to change this or to increase the psi or rpm it needs to withstand as well as the number of valves required. Rotary unions are also heavily used in Various Industries Like crude oil processing,the chemical industry,commercial food production,Paper,Plastics,Printings,Steel,pharmaceutical applications etc.

Size : 1/4" to 2"

Due to mechanically force or pressing of roller lever cam results in shifting of spool of the valve to different position and the valve is been actuated.The valve is returned to the normal position through return spring after release of the Roller lever.Through exhaust port the air is been discharges for positive return.   Features FFV make 3/2 Way 5/2 Way Roller Lever Valve Compact Design & Light Weight High endurance spool valves High flow in package small size Air piloted spring & exhaust port for positive return Dry or lubricated operation

Quick release coupling is a coupling used to provide a fast,make-or-break connection of fluid transfer lines.Operated by hand, quick connect fittings replace threaded or flanged connections,which require wrenches. When equipped with self-sealing valves, quick connect fittings will upon disconnection,automatically contain any fluid in the line. Quick Release Couplings are used in a wide variety of plumbing,heating,electrical and fire suppression systems.Quick Fitting is the original inventor of quick connect for electrical,fire suppression and plumbing technologies,Quick connect works by inserting the tubing into a connection mechanism that deploys fastening teeth onto the tubing surface. When opposing force is applied to the union, the teeth are forced deeper into the tubing, preventing separation of the union. Quick connect fittings offer a significant time saving benefit over traditional technologies and require little skill for their usage.

FFV manufacture Push Pull Valves such as 3/2 Way & 5/2 Way Design Spring Return and Detent which one is Easy to operate push/pull valve to control the flow and dispense your product. Features MOC Aluminium of best grade Compact Design & Light Weight Seals Nitrile Useful for controlling flow of air Detente Type for neutral in centred position Dry or lubricated operation

Media : Compressed Air

FFV Offer For Various types of High Quality Push in Fittings Like Male & female Straight Connector,Equal and Unequal Y, Tee,Elbow,Union Reducer,Union cross banjo elbow,branch tee,run tee,speed controller,Bulk head union,Plug in reducer,Stop fitting exhaust,Standard flat & Plastic silencer   Description Push connect fittings are compact and single piece which are rated for certain temperature & pressure. The offer product ranges is made up of high quality basic material such as metal & alloys. These products offer superior performance and are available in a variegated range of shapes & sizes. The tightness is made possible by the presence of material gripping and an o-ring inside the Push fitting. Once the tube is inserted to the bottom of the fitting, the steel collet inside grips the tube and prevents it from being released. The tubing is disconnected by simply pushing the metal release inside and removing the tube from the push-to-connect fitting.Push-to-Connect fittings enable quick tubing connection and disconnection.Clients can also avail these fittings in customized forms as per their requirements.   Features Compact and light weight. Variety of shapes & sizes manual connection and disconnection, resulting in time-saving excellent performance with full flow, automatic sealing suitable for both nylon and polyurethane tubing

Direct Activated Pressure Reducing Valve directly opens and close valve gate by the outlet pressure. When outlet pressure is under setting pressure,Valve gate automatically opens, to make valve gate fully open,adjustable pressure range and setting pressure are relative points.

Single Piece / Three Piece Design Body / Ball / Stem Material Polypropylene 25 mm to 200 mm available size Seat Material Teflon / PTFE Flanged End / Screwed End / Socket Weld End   Butterfly Valve Description Body / Disc / Stem Material Polypropylene 25 mm to 200 mm available size Seat Material Teflon / PTFE Wafer type   DIAPHRAGM VALVE DESCRIPTION Body / Bonnet Polypropylene 25 mm to 200 mm available size Diaphragm Neoprene Rubbers Flanged End

FFV make 3/2 Way & 5/2 Way Single Coil / Double Coil Solenoid valves are commonly used in various sizes & variety of Pneumatic Actuator.Suitable for lubricated or non-lubricated supplies exchangeable solenoid for all.Used in application,including petrochemical,pulp and paper,filling equipment,food processing and water treatment.It has a high flow rate capacity and Large Internal Flow Area which Enables usage on a large range of actuators also.It has a Rapid response time (up to 4 cycles/sec) continuous duty cycle with reliable NBR Soft seal Spool.   Features High flow-rate capacity Reduced power consumption Moisture proof Epoxy Molded Coils For corrosion protection Aluminum Anodized Parts All Standard voltages available Long reliable working life

Media : Compressed Air

FFV Makes Round Body / Square Body Pneumatic CylinderPneumatic cylinders are devices for converting the air pressure into linear mechanical force and motion.Based on application and usage Air cylinders are classified, as light duty, medium duty or heavy duty types.Single acting cylinders have single air inlet line.Double acting cylinders have two air inlet lines.   Features Cylinder Barrels are high-strength aluminum Alloy Cylinder Barrels are square & round type Piston Rod hard chrome plated Long seal and bearing life Smooth operation & Lower maintenance costs Trouble-free installation and extended service life. Multiple mounting configurations are possible Special Mountings For Pneumatic Cylinders are available on Request

FFV make Pneumatic rotary actuators butterfly valves are available in double acting or single acting type.These are simple and reliable method of automating butterfly valves.   Features Compact Modular Design Provides direct mounting Butterfly Valves Low Friction Piston and Rings Provide maximum efficiency and long life Quick opening & closing compared to electrical actuator butterfly valve Easy maintenance and long life cycle Can be installed in door as well as outdoor environment Actuators have high bore finished and are factory lubricated for good life cycle in normal conditions Extruded Aluminium Hard Anodised for Corrosion Protection & wear resistance

FFV make Pneumatic Rotary Actuators Ball valves are available in Double Acting or Single Acting type. These are simple and reliable method of automating Ball Valves. Double Acting Air Actuator Ball Valve are Design Air to Open and Air to Close type. Single Acting Air Actuator Ball Valves are Design Air Pressure to open and springs to close the valve. can be automated in Various types of ball valve like 2 ways,3 ways and 4 ways flow Path.     Features Quick opening & closing compared to Electrical Actuator Ball Valve Lightweight due to their compact rack and pinion Construction Easy maintenance and long life cycle Can be installed in door as well as outdoor Environment Actuators have high bore finished are factory lubricated for good life cycle in normal conditions Extruded Aluminium Hard Anodised for Corrosion Protection & wear resistance Pneumatic Actuator ball valves give higher flows and wider media compatibility

Fluid Force Valves Offer Quarter Turn Electrical Actuator operated butterfly valves are design for on-off duty, inching type & modulating applications.These are widely used in control of Air, Gas, Steam, Oil & Water in various sector like power generation, water treatment plant, sugar industries, chemical, petrochemical industries,pumps testing units, Steam boilers, HAVC & Plumbing, Gas Generator, Textile and in Process Automation,Damper Actuators.   Features Power supply availability of wide ranges Have less noise pollution Have less maintenance on over all accessories equipped by system Less friction & lubrication Components are lightweight Comparable life to pneumatic operators Optional manual override Top indicators optional

Number Of Flower : On off type, Inching duty & Modulating Type

FFV Valves Offer Quarter Turn Electrical Actuator operated ball valves are design for on-off duty, inching type & modulating applications.These are widely used in control of Air, Gas, Steam, Oil, & Water in various sector like power generation, water treatment plant, sugar industries, chemical, petrochemical industries,pumps testing units, Steam boilers,    Features Power supply availability of wide ranges Have less noise pollution Have less maintenance on over all accessories equipped by system Less friction & lubrication Components are lightweight Comparable life to pneumatic operators Optional manual override Top indicators optional

Generally, compressed air is vulnerable to various types of contaminations that greatly reduce its value as a power source and can have a profound effect on the machinery that it operates. Moisture is the most common and the most hazardous contaminant present in the air.Moisture Separatos are used to Separate Moisture From Compressed Air Line Application and can be protect the expensive pneumatic instruments.   Features Moisture Separator does not need any maintenance or repairs Compact & easy operation Moisture Separator performs constantly and consistently 99.99% working efficiency Fine adjustment of lubrication 4 to 5 Years Expected Life

FFV Make Centric Disc,Off Set Design,Double Off Set Design,Damper Valve- Fabricated Butterfly Valve.   Standards Design & Mfg: EN 593/ API/609/BS 5155/MSS SP 67/ ASTM /MSS / BS / JIS / IS Valve Face to Face Dimension : ISO 5752/ API/609/BS 5155 Top Flange Drilling :ISO 5211 Valve Inspection & Testing : API/598/ BS 6755 Part-I / EN 12266-I Flange Standard Conformity : ANSI 150# / ANSI 125#/ BS 10 TABLE D & E, IS 6392

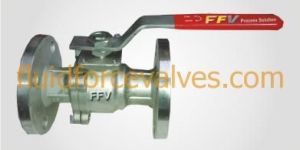

FFV Manufacture Single Piece,Two Piece & Three Piece Design Ball Valve. Cast Steel Ball Valves Have Been Designed To Meet The Requirements BS 5351/ASME B 16.34 /API 6D /API 608. Face to Face an End to End dimensions conform to ASME B 16.10 / BS 2080 /API 6D/ DIN End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN Butt weld end dimensions conform to ASME B 16.25 Screwed Ends to BSP / BSPT / NPT Female Threads Socket Weld Ends to ANSI-B-16.11

FFV offers Low Pressure Solenoid Valve Pilot Type / Low Pressure Solenoid Valve Piston Type.   Features Low Pressure and Low Voltage Solenoid Valve Specially for RO application For Direct acting type design Lower operating voltage Used in cold beverages or water dispensing,juice dispensing and vending machine These are normally closed solenoid valves (Opens when energized) Operating pressure 0-1000 mm WC   Temperature Of Pilot Valve Up to 140°C(High Temp. On Request) Temperature of Piston Valve Up to 85°C End Connection Screwed/Flanged/Triclover Coil Voltage All Standard Voltage Available

FFV offers Double Acting / Single Acting Pneumatic Cylinder Operated Knife Edge Gate Valve.   Features FFV Make Knife Edge Gate Valve Can withstand high temperature Sturdy construction Corrosion resistance suspended solids & slurry knife ‘shaped’ to allow for precise flow control at low flow rates   Design & Inspection MSS SP-81 Hyd-Test Press: Body 11 Kg/Cm2 & Seat 2.8 Kg/Cm2 Flange Dimension: ANSI B 16.5 ( But SIZE 22″ & LARGER: MSS SP-44)

Size : 80 mm to 700 mm

FFV Make Single Piece Design High Pressure Needle Valve,Stainless Steel,Bar Stock Body Needle Valve.

FFV Make Single Piece Design High Pressure Ball Valve.Forged Ball Valve,C.S Ball Valve Round Body / Square Body / Short Pattern Ball Valve.

Media : Air,Water,Oil & Gas
