Butterfly Valves Dealers in Ahmedabad

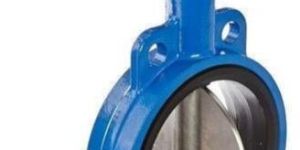

Normex make butterfly valve: the control application in pumping systems attracted normex to come out with control valves i.e. Butterfly valve. The normex butterfly valve superseded the gate valve, ball valve and globe valve in most spheres of applications. Gas tight sealing with excellent control characteristics and uni directional flow has qualified normex valves by most of the industries. The centrally mounted disc, shafts and bearings has minimised head loss.it’s low weight and compact design has achieved acceptability in industries like chemical and petrochemicals, watertreatment, agriculture and many more.. excellent flow control in quarter turn operation low pressure drop low weight, low maintenance, long service life 100% tight shut of

Size øA B C øD E F L øH DN 40 82 33 58 44 94 123 245 63 DN 50 95 43 64.5 53 103 132 65 DN 65 105 46 69.5 65 115 143 90 DN 80 127 46 80 77 137 165 DN 100 160 52 100 103 150 178 DN 125 190 56 118 127 165 198 330 DN 150 215 56 127 144 178 211 DN 200 269 59 155 196 216 249

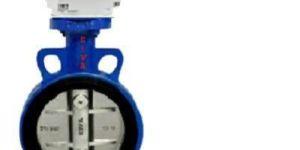

Supreme quality Motorized High Performance Butterfly Valves that we offer is high on demand in the national and international markets. Compact design, easy functioning, high torque, trouble free operation and longer working life best define the range of Motorized High Performance Butterfly Valves we manufacture. Applications : Brine Waters & Oils Hygienic Powder & Slurries Pharmaceutical Industry Stream Lines, Gas Lines /Vaccum / Air For Chemical and Dyeing Fluids in Textile Processing   Electrical Actuator Details   Manufacturer Cair Euromatic Automation Brand / Model Cair / MOD Characteristic On - Off Type Travel 90 Degree Indicator Continuous Position Indicator Phase Single Phase Power Supply 220V AC, 50 Hz Body Material Aluminum Alloy Ambient Temperature 20oC ~ 80oC Motor Insulation Class F Protection Class IP - 67 Weather Proof Manual Adjustment Wrench Setting Limit Switch 1NO + 1NC output of 220V AC Position Power Failure Stay Put Manual Override Provided   Accessories   Modulating Controller 4 ~ 20 mA (Available on request) Potentiometer Feedback Available on request Integral Starter unit Available on request Control Panel Available on request 5 Special Effects : Compact Design - Full Port-Offers Mass Flow Simple Structure, Light & Smooth - Takes Very Short Time For Opening & Closing With Very Low Torque Easy Maintenance - Replaceable Seals Design Self Sealing - Self Cleaning The Under Cut Disc Segment And Seal Tends To Wipe Away The Material From The Sealing Area, Gland Pressing Plate - Ensures Complete Utilization of Gland Seals Spherical Disc Valve has been Proved as Superior to Other Valves in Many Aspects, Particularly in............. Weight Space Pressure Range Multiple Operations Maintenance Ease Torque & Economy   Material of Construction Manufacturer Cair Euromatic Automation Brand / Model Cair / MOD Characteristic On - Off Type Travel 90 Degree Indicator Continuous Position Indicator Phase Single Phase Power Supply 220V AC, 50 Hz Body Material Aluminum Alloy Ambient Temperature 20oC ~ 80oC Motor Insulation Class F Protection Class IP - 67 Weather Proof Manual Adjustment Wrench Setting Limit Switch 1NO + 1NC output of 220V AC Position Power Failure Stay Put Manual Override Provided   CV Value in GPM   1.1/2" (40)702" (50)922.1/2" (65)1503" (80)2604" (100)4605" 125)7606" (150)13508" (200)220010" (250)320012" (300)470014" (350)580016" 400)800018" (450)1050020" (500)1400024" (600)2100026" (650)2340028" (700)2700030" (750)3330032" (800)4020036" (900)5650040" (1000)7000048" (1200)90000 Size Cv  Full Open (GPM) Class 150   Torque Values in Kgf.m   Size Differential Pressure (AP) 5 kg/cm2 10 kg/cm2 15 kg/cm2 20 kg/cm2 1.1/2" (40) 0.8 1 1.2 1.5 2" (50) 0.9 1.2 1.5 1.7 2.1/2" (65) 1.6 2.2 2.4 3 3" (80) 3 3.4 4.2 5 4" (100) 4 4.6 5.4 6.4 5" 125) 5.8 8 9.5 11.5 6" (150) 9 11.5 12.5 14.5 8" (200) 14 17.5 24 28 10" (250) 23.5 26.5 28 30 12" (300) 32 36 40 50 14" (350) 50 65 83.5 108.5 16" 400) 69.4 94.5 120 160 18" (450) 95.5 128 157.2 205 20" (500) 122.5 193.3 210 293.4 24" (600) 213.3 293.4 366.7 440.1 26" (650) 265 35O 400 510 28" (700) 300 395 480 595 30" (750) 321 420 519 617 32" (800) 481 630 780 920 36" (900) 518 663 850 992 40" (1000) 641 850 1060 1300 48" (1200) 850 1166 1485 1632   Standards Series 5500 (40 NB TO 600 NB) Series 5501 (650 NB TO 1200 NB) Design and Manufacturing API 609 CATAGORY B. MSS SP-68 Valve Face to Face Dimensions API 609 CATAGORY B /ANSI B 16.10 ISO 5752 SERIES 20, MSS SP - 68 Flange Standard Conformity ANSI B 16. 5 CLASS 150 ASME / ANSI B 16.47 SERIES W Inspection & Testing Standard API 598 / ANSI FCI 70 -2 API 598 / BS 6755 Fire Safe Testing API 607 API 607 Pressure Temperature Rating ASME/ANSIB16.34 ASME /ANSI B 16. 34 Pneumatic Actuator Operated Spherical Disc Valve     VLV.SIZE A B B1 C H Ã�E Ã�D Weight 1.1/2" (40) 42 46 29.5 59.5 144.5 38 82 1.6 2"    (50) 45 46 29.5 68.5 163.5 50.8 95 2.2 2. 1/2" (65) 48 46 29.5 74.5 188 60.6 108 3 3" (80) 48 56 41.5 80 200 72 127 3.8 4" (100) 54 56 50 95 228 100 159 5.6 5" (125) 57 60 51 117 268 123 186 7.7 6" (150) 57 60 60 132 300 143 217 10.4 8" (200) 64 60 60 157 36.5 192 270 15 10" (250) 71 60 60 172 396 239 323 25.75 12" (300) 81 69.5 60 200 465 290 380 36 14" (350) 92 69.5 69.5 224 534 335 406 46.9 16" (400) 102 86.5 86.5 250.5 592 387.5 490 66.85 18" (450) 114 86.5 86.5 355 745 425 540 117 20" (500) 127 112.5 112.5 384 805 475 594 146.5 24" (600) 154 112.5 112.5 460 960 560 705 290 26" (650) 165 - - 455.72 938.5 608 755 360 28" (700) 165 - - 480 988 661.5 810 390 30" (750) 190 - - 512 1047 696 855 475 32" (800) 190 - - 550.2 1126.4 755 913 524 36" (900) 203 - - 605 1255 864 1032 675 40" (1000) On Request 48" (1200) On Request Pneumatuc Operating Pressure 45 PSI to 150 PSI Handle Operated Spherical Disc Valve   VLV.SIZE A B C Ã�D H1 L Weight 1.1/2"(40) 42 85 59.5 85 146 265 2.250 2" (50) 45 95 68.5 95 150 265 2.60 2. 1/2" (65) 48 113.5 74.5 108 172 265 3.550 3" (80) 48 120 80 127 181 265 4.30 4" (100) 54 133 95 159 197 265 6.100 5" (125) 57 151 117 186 231 265 8.60 6" (150) 57 168 132 217 245 265 11.050 Worm Gear Operated Spherical Disc Valve

Needle Valve India is a manufacture a wide range of Butterfly Valves. which are automatically better, structurally sound, easy to operate and totally dependable. Our Company Supply the complete range of Butterfly Valves in different size and different Types depending upon on users partiality and order. Butterfly Valves are widely established among customers due to excellent performance and minimum preservation quality. Needle Valve india is Manufactured in equally flanged and flangeless construction. They are also available at manufacturing leading rates that always keep us one to watch in the competitive market and clients select us first.   Item Part Material Options Body: Cast Iron I .S 210 Grade FG200 /GG 25: Ductile cast iron GGG 40: Cast carbon steel ASTM A-216 Grade WCB: Cast Stainless steels CFB & CF8M Seat: Nitrile, EPDM, Virton, Silicone Shaft: AISI 410 / PTFE O-ring : Nitrile, EDPM, Viton, Silicone Taper pin: AISI 410 / 316 Plug: Steel Bush: Polyacetal. Range: Handle Type Butterfly Valve Water Type Butterfly Valve Flange Type Butterfly Valve Gear Type Butterfly Valve
