Butterfly Valves Dealers in Rajkot

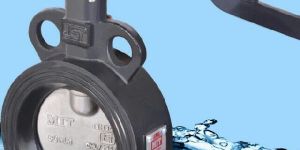

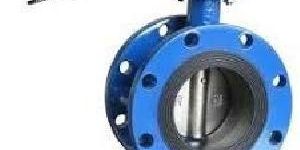

We are offering butterfly valves. Our butterfly valves are designed to isolate or regulate the flow. The body liner which also functions as the soft seat, is integrally epdm molded. The body has universal design to fit between pipe flanges of almost all popular flange standards. Pressure rating as per pn10pn16 disc :: sgi, ss 304.316

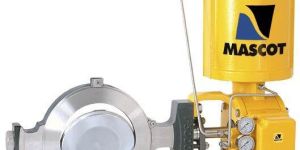

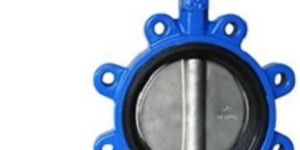

The high-performance DiskFlo Butterfly Valve is used to achieve bi-directional bubble-tight shutoff while maintaining low breakout torque at high and low pressure drops. The high-performance DiskFlo Butterfly Valve uses pressure assisted Jam-lever toggle seating concepts. By utilizing the pressure drop across the valve to aid the seating process, Jam-lever toggle seating assures low breakout torque. The need for strong actuator seating force is reduced since much of the force is supplied by the fluid pressure. To achieve especially high-performance throttling, even in large pressure drops close to the seat, it is combined with a MASCOT high thrust cylinder actuator and a double eccentric cammed disc. Soft Seat: To help energize the soft seat to bubble-tight shutoff in either flow direction, including alternating flow applications, Jam-Lever Toggle seating concepts utilize the pressure drop across the valve. Jam-lever Toggle soft seats achieve ANSI Class VI shutoff. Metal Seat: For applications involving temperatures higher than those permitted by the Jam-lever Toggle soft seat, metal seats are used. A highly flexible lip, which assures full circle contact between the seat and disc when the valve is closed, is incorporated in the design. The lip flexibility permits breakout torque for the metal seat is the same or less than soft seat breakout torque. ANSI class IV shutoff is achieved through DiskFlo metal seats. Dual Seat: DiskFlo dual seats incorporate both the Jam-lever Toggle soft seat and the flexible lip metal seat for added protection in unclean fluids or demanding applications. It also makes the DiskFlo a Firesafe Butterfly Valve. DiskFlo Double Eccentric Cammed Disc To lift it out of the seat immediately upon actuation, a double offset has been designed into the disc. This avoids wear on the seat and disc, reducing leakage and parts replacement. The throttling also improves as the friction is eliminated. Flow Direction Jam-lever Toggle seating allows DiskFlo to flow either shaft downstream or shaft upstream, depending on service conditions. With the shaft downstream the flow tends to open the valve. With the shaft upstream the flow tends to close the valve. Flow Characteristics The inherent flow characteristic of the DiskFlo valve is a modified parabolic. Other characteristic curves are achievable by means of a MASCOT HiFlo Positioner or a SMART positioner.

  All our offered range of product has been made using the best technology. This Lined Butterfly Valves is highly demanded in the market for their best quality and cost effectiveness

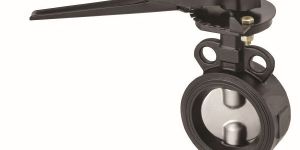

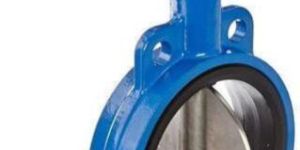

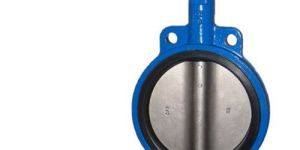

Butterfly Valves are designed and manufactured to have optimal mix of structural stability, flow efficiency and effective seating coupled with advantage of light weight, compact design and ease of operation. Only a quarter turn is needed to fully open or close the valves. The valves are provided with integrally moulded elastomer body liner to provide perfect seating and complete isolation of body material from fluid media to prevent it from any corrosive and abrasive impact of fluid.   Specifications and Standards Body and Trim BS- 5155, IS- 13095, API 609, ISO 10631, EN 593   Face to Face Dimensions BS-5155 PN 10 / PN 16, IS 13095 ( PN 1.0 / 1.6), ISO 5752, MSS SP67, API 609   End Connections BS- 4504 PN 10 and 16, BS- 1560- Class 125 and 150, ANSI B 16.5 Class 150, ANSI B 16.1 Class 125   Size Standard wafer and lug type valves are available from 2" to 24" and require only one set of mating flanges, also only set of studs and nuts thus saving installation time and cost.

We are actively engaged in offering Lined Butterfly Valve to the clients. We are based in Gujarat, India. It is manufactured in accordance with the latest industrial standards and norms. Due to its smooth functioning, corrosion resistance, and long working life, it is highly acknowledged by our clients. We offer it in various specifications, to suit the variegated industrial applications. We offer it at a cost-effective rate.

Triple Offset Butterfly Valve, Strainer, Industrial Valves, Globe Valv

Stainless Steel Butterfly Valve, Wafer Butterfly Valv

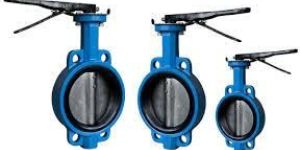

We are offering slimseal butterfly valve.
