Butterfly Valves Dealers in Ahmedabad Cantonment, Ahmedabad

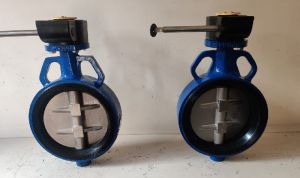

Butterfly Valve have been developed with extensive application, design and manufacturing expertise. J. D. High Performance Slim-Seal, Concentric design Butterfly Valves are reliable, maintenance free shutoff with permanently gas-tight seal with an integrally moulded or replaceable elastomer body liner. J. D. Butterfly Body having two nos. flange locating holes for sizes up to 12 and from size 14 and above 04 nos. for easy alignment of valve during installation. Flange locating hole confirm to as per ANSI B 16.5 Class 125 & Class 150 BS 10 Table D, E, F PN 6, PN 10, PN 16 or other international standard. J. D. High performance b

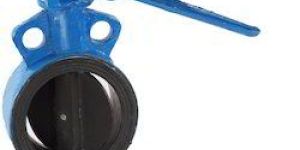

Well acknowledged for our exclusive range of butterfly valve , with set industry standards. We are looking from Gujarat only. brand / kartar / audco / sant ect other brands

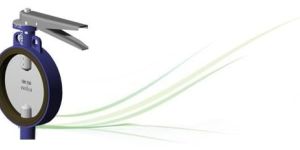

A wide range of Butterfly Valves that gives high performance and extremely useful for controlling the flow of different substances is manufactured by us and supplied all over India. It comes with a friction-less lever, making it easy to operate and is used widely for water treatment and distribution. We provide Butterfly Valve in different specifications as per the client’s demand. Specifications DescriptionMaterialQty.BodyCast Iron Is210 Gr, Fg, 200 Min/s.s.304/316 with Intergrally Moulded1DiscCast Iron/s.s.304/s.s.316 Approxy Nylon Coated1StemS.S.1"O" RingNitrile Rubber1Leaver BracketS.S.1Leaver BracketM.s./cast Iron1

Gate Valves, Pfa Lined Valve, Plug Valves, Fitting

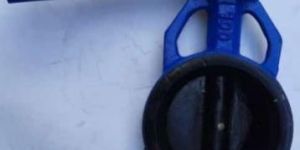

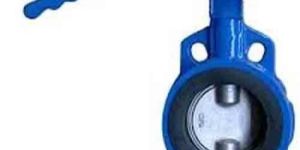

Product description: Butterfly valves are quarter-turn rotary motion valves used as throttling valves to control flow through a system. They can be used with many different media. Butterfly valves offer several advantages including quarter-turn, openness for less plugging, and good control capabilities. They may be used in a wide variety of chemical services, are available with small dimensions allowing for use in areas where space is limited, and allow a high coefficient of flow. Disadvantages include difficulty cleaning internal parts; therefore they should be avoided in situations that call for sterile, medical or food processing applications. Additionally, some styles may have difficulty dispensing slurries. Features and Benefits   Extended Neck –  Allows for 2″ insulation Ductile Iron Body– High Strength body when in tension (lug body) Non-Corrosive Bushings–  Elimination of shaft to body seizure Cartridge Seat –  Excellent in full vacuum distortion proof primary shaft seal, minimal seat movement and consistent displacement on closing Two-Piece Shaft, Splined –  High torsional capabilities with zero disc deflection

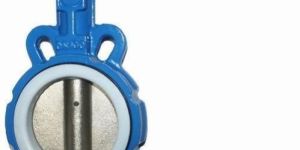

Salient Feature Meets manufacturing standard design as per BS 5155/ API 609 / IS 13095 AWWA C-504 /ANSI B 16.34 and inspection testing standard as per API 598/ BS 6755 / MSS - SP -61. SPLIT body compact design for open/close cycle with very low torque. 2PC SPLIT body with replaceable PTFE seat type valves can be supplied on specified request. Multipurpose water design. REPLACEBAL/ Molded rubber seat in various material. 100% tight shut off in both flow directions. A fully universal body design ensures suitable for mounting between all popular standards (VIZ: - ANSI, BS, DIN, IS, JIS, etc.) Lower torque requirement because of bearing support to the shaft. The notch disc & band lever ensures locking of the valves in 8 intermediate positions in addition to close and open position. Option Log type body design available on request. Flanged end design butterfly available on request. Valves can be opened by manual gear unit or pneumatic /electrically actuator. PTFE lining / coating. Valves can be supply with PTFE lining /coating in corrosive application. Ring joint facings available in higher classes Body & disc supply in difference M.O.C such as CI -IS 210 GR. FG- 200, SG IRON GGG 40, ASTM A 216 GR. WCB, ASTM A 351 GR CF8 / ASTM A 351 GR CF8M Seat supply in difference M.O.C. such as 1) nitrile 2)epdm 3) hypalon 4) silicon 5) viton 6)neoprene 7) Stellited seating hard facing are provided on requestOffset disc design available in 350 NB above size butterfly valves. High performance metal to metal contact valves for high temperature application for hot gases. Alternatively device of the disc to shaft connection can be provided at our option. The valve can be supplied with matching pneumatic or electrically operated actuator for remote / automated control and operation. The design and technical data furnished here are subject to change due to continuous product development.   C/F:- Neck flange according to ISO -5211 hand lever can be locked through pad lock. Excellent flow control in quarter turn operation. Body & stem to tally protected from service fluid. Centrally mounted disc, shafts and bearings, therefore valves give higher cv valves. Face to face water short dimensions conform to BS 5155 / API 609 / IS 13095 / AWWA C 504. Uniflow direction installation. Pressure rating PN 10 / PN 16 Testing body : 1.5 * PN Seat : 1.1 * PN Temp range: - 20'c to 180 'c (depending on MOC)   Application COMPRESSED AIR PLANTS. CHEMICAL INDUSTRY. SUGAR INDUSTRY. DRILLING RIGS. GASES AND VAPOURS PLANTS. PAPER INDUSTRY. PHARMACEUTICAL PLANTS. MILK & FOOD INDUSTRY. AGGRESSIVE CHEMICALS. REFRIGERATION & AIR CONDITIONING PLANTS. HIGH VACCUM APPLICATION. COOLING WATER CIRCULATION. CONSTRUCTION INDUSTRY. WATER TREATMENT PLANT. PESULPHURISATION PLANTS.

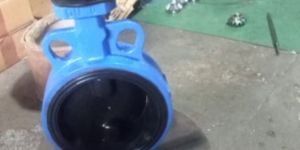

Wafer Butterfly Valve, Globe Valve, Industrial Safety Valve

We are the leading exporter and supplier of this products.

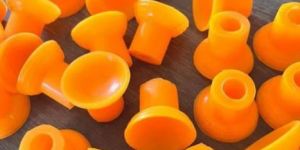

Rubber Valves, Rubber Valves, Dry Magnetic Seperation Machin
