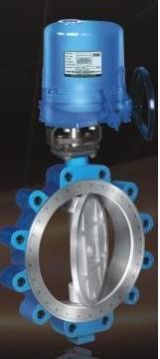

Motorized Actuator Butterfly Valve
01 Piece(s) (MOQ)
Motorized butterfly valve item code: mod-bfv-eco we offers rubber lined butterfly valves for hvac & utilities. These valves are truly 'fit & forget valve', which requires minimum maintenance. The body lines which also functions as the soft seat, comes in an integrally moulded version & offers bi-directional sealing against vacuum upto the pressure of pn 10/pn 16. electrical actuator details: manufacturer: cair euromatic automation brand / model: cair / mod characteristic: on -off type travel: 90 degree indicator: continuous position indicator phase: single phase power supply: 220v ac (±10%), 50 hz body material: aluminum alloy ambient temperature: 20° c ~ 80°c motor insulation: class f protection class: ip 67 weather proof manual adjustment: wrench setting limit switch: 1no + 1nc output of 220v ac position on power failure: stay put manual override: provided accessories: modulating controller: 4 ~ 20 ma potentiometer feedback integral starter unit control panel size range: 25 mm to 1800 mm butterfly valve details: body: cast iron / s g iron / wcb / ss 304 / ss 316 disc: cast iron / s g iron / wcb / ss 304 / ss 316 seat: nitrile / epdm / ptfe / viton shaft: aisi 410 valve type: centric disc butterfly valve body type: short wafer (sandwiched between flanges) seat type: integrally moulded with the body end connection: wafer sandwiched (lug on request) pressure rating: pn 10 seat leakage: tight shut off operation: motor operated actuators butterfly valve, butterfly valve actuators, actuated butterfly valves,electrical acuator operated butterfly valve, motorized butterfly valve key features: integrally moulded seat liner on the body, which ensures excellent dimensional stability & guaranteed seat tightness. seat liner extending on to the contact faces ensures perfect sealing and eliminates the need for separate flange gaskets. narrow land disc ensures perfect sealing with least operating torque requirements. a fully universal body design ensures fitting of the valve between companion flanges of all popular standards (viz : ansi, bs, din, jis, is etc.) the notch disc & band lever ensures locking of the valve in 8 intermediate position in addition to close and open position. Hand lever can be locked through pad lock. body castings made of superior fg 260 grade cast iron to ensure additional strength. valve disc made of stainless steel / ductile cast iron which enable protection against possible water hammer or pressure surges. a truly line size body bone to ensure maximum flow capacity with the lowest pressure drop.

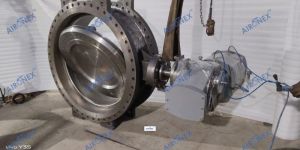

Butterfly Valves
700 - 700,000 Per Piece
1 Piece (MOQ)
We are the main supplier of this product.
Butterfly Valve with Pneumatic Actuator Wafer Type
End Connection : Wafer Type To Suit ANSI 150 # Flanges (Other Standard Also Available On Request)
Model : ECO
Valve Design : Centric Disc Butterfly Valve with Single Piece Rubber Lined Body
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 1.1/2” To 48”
Body : Gry Iron,Cast Steel,Ductile Iron,CF8,CF8M,CF3M,CD4MCUN
Disc : Gry Iron,Cast Steel,Ductile Iron(Powder Coated),CF8,CF8M,CF3M,CD4MCUN,S.G.Iron with Teflon/Powder/Nylon Coated & Rubber Line
Seat : Nitrile,EPDM,Viton,Hypelon,Sillicon,Neopren
Shaft : AISI 410 / AISI 304 / AISI 316 / AISI 316L
Seat Type : Integrally Moulded with the Body(Renewable Seat)
Pressure Rating : PN 10 / PN 16 (PN 20 on Request)

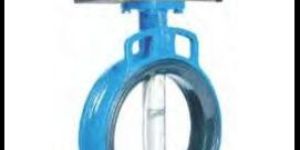

Wafer Butterfly Valve
10,000 - 1,000,000 Per Piece
Material : Carbon Steeel, Cast Iron, Stainless Steel
Color : Blue, Red, Sky Blue, White
Power : Manual, Solenoid
Pressure : pn10/16/20
Application : Water Fitting
Size : 2" to 86"
Certification : ISO 9001:2008 Certified
Feature : Casting Approved, Investment Casting
Technics : Gear Operated, Hard Sealing
Type : Wafer Butterfly Valve
Country of Origin : India
Number Of Way : 2way
Rubber Lined Butterfly Valve
We are an incomparable name in offering a superior quality Rubber Lined Butterfly Valve that ensures an unrestrained flow of the liquid. The offered butterfly valve is manufactured utilizing optimum quality raw material and lined with optimum grade rubber that assures its high sealing capacity. Furthermore, the offered butterfly valve is meticulously checked on various quality parameters by quality controllers to render a flawless supply at clients’ end. Features: Minimum bearing friction torque. Precise design Damage-resistance

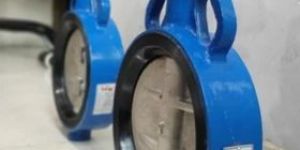

Cast Iron Butterfly Valve
Cast Iron Butterfly Valve, Wafer Type, Rubber Lined Body, Conforming to IS 13095 : 1991, Rating PN 1.0 / Class 125, Regulating Type, Hand Wheel & Gear Box Operated, ISI Marked.

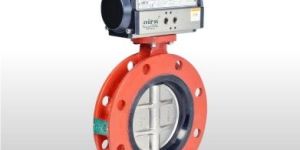

Dual Flanged Butterfly Valves
Water treatment & effluent treatment plants Refrigeration & Air- conditioning plants Sugar factories / Breweries Food processing Industries Chemical/Petrochemical industries Seawater & Brine Pumping

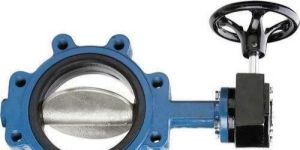

Butterfly Valve
BODY | DISC : MS FABRICATED (IS 2062 Gr. B)
SEAT : METAL TO METAL
INSP & TEST STD : BS 6755 | BS 5155
LEAKAGE CLASS : CLASS IV AS PER 16.104
RATING : 5 Kg/Cm ²
OPERATING TEMPERATURE : UPTO 1200 °C
ENDS : DOUBLE FLANGE
OPERATION : LEVER | GEAR | PNEUMATIC OPERATED | ELECTRICAL ACTUATED
SIZE RANGE : 200 MM TO 2000 MM
Butterfly Valve
We are the leading manufacturers, exporters and supplier of this products.
Butterfly Valves
Suitable For : : Water , Oil
Design: : Wafer / Lugged
Seating: : Moulded / Replaceable
Mfg.Ins. & Test Std.: BS - : 5155 / API - 609 / IS - |3095 BS -6755
Butterfly Valve
Nominal pressure : PN16, PN25
Medium Temperature : 10°C
Body Material : 210, FG 220 CI
Stem Material : ASTM A276, GR SS 410
Disc Material : Epoxy Coated Ductile Iron Disc
Lever : CRCA SHEET
Leakage Rate : No visible leakage
Medium Type : Water
Flange standard : IS 1538
Shell Test pressure : PN16-24bar/PN25-37.5 bar
Seal Test pressure : PN16-17.6bar/PN25-27.5 bar
Lined Butterfly Valve
2,000 Per Piece
1 Piece (MOQ)
Power : Hydraulic, Manual
Pressure : Triple Offset Butterfly Valve
Application : Gas Fitting, Oil Fitting, Water Fitting
Country of Origin : India
Body1 : DI/SGI/WCB/SS-304,316
Body2 : DI/SGI/WCB/SS-304,316
Sleeve : PFA/FEP/PTFE
Fastener : MS/SS-304,316
Bush : PTFE
Flapper : SS-304,316 +PFA/FEP
Actuator : Standard
Handle : MS/SS
Lining Thickness : 3-6mm
Visual Test : As Per API 598
Hydro Test For shell : 20 Kg/cm
Hydro Test For Sleeve : 10 Kg/cm
Pneumetic Test : 6 Kg/cm
Spark Test : 15 KVDC

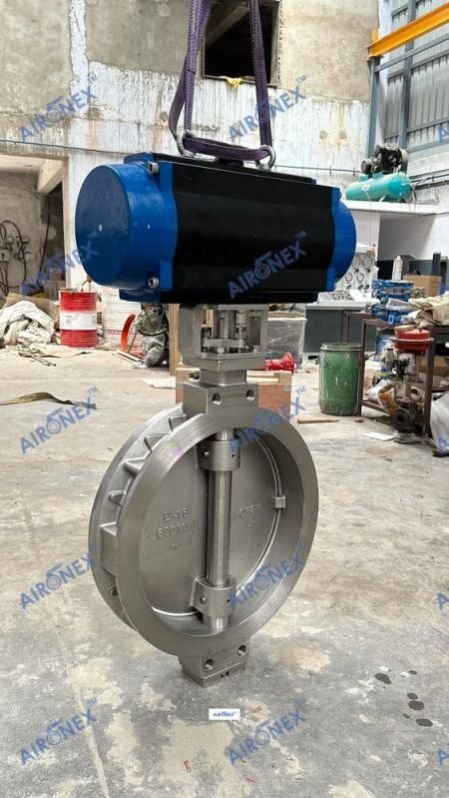

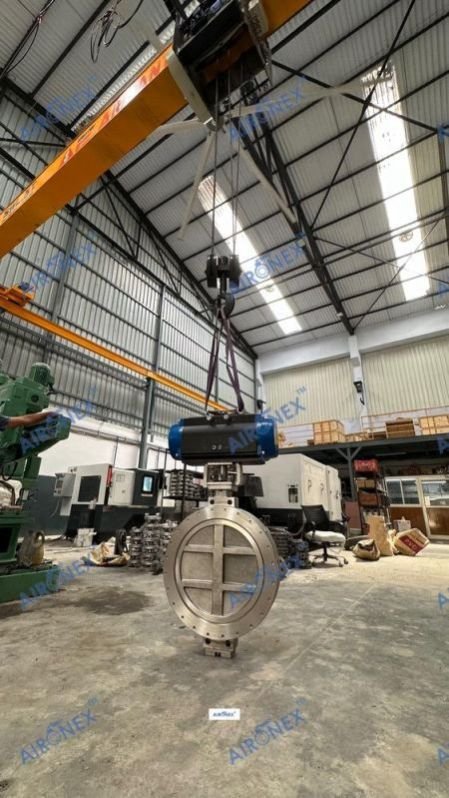

Triple Offset Butterfly Valve
100 Pieces (MOQ)
Size : 1.1/2inch, 1.1/4inch, 1/2inch
Material : Metal
Application : Water Fitting
Feature : Casting Approved, Durable
Power : Manual
Ptfe Lined Butterfly Valve
Butterfly Valve provides excellent chemical resistance through the use of flouropolymer line body and disc. Many features have been added to this as standard features to elevate butterfly valve of design, reliability & performance. Butterfly Valve is available in sizes ranging from 25 mm to 300 mm.
SS Butterfly Valve
In order to deliver quality content, our entire production process is commenced under the strict eyes of quality examiners. In order to settle the financial transactions with our customers, we offer secured payment procedures to them. The procedures include online and offline methods suiting the convenience of the clients.
Pneumatic Actuated Butterfly Valve
Material : Carbon Steeel
Application : Gas Fitting
Color : Blue
Power : Manual
Feature : Casting Approved, Durable
Port Size : 0.1mm-5cm
We can be contacted for purchasing premium Pneumatic Actuated Butterfly Valve. We are a renowned Importer and Supplier of Pneumatic Actuated Butterfly Valve in Karnataka, India. It is sourced from the reliable manufacturers who design it in accordance with the international quality norms. We pack the order in qualitative material so as to ensure easy handling during storage and transit. Be it small order or bulk one, we are focused to deliver the same well in time.
Motorised Butterfly Valve
15,000 - 1,500,000 Per Piece
1 Piece(s) (MOQ)
Butterfly Valves
We offer Butterfly Valves that are widely demanded in different parts of the country. The Butterfly Valves offered by us are tested on different parameters for ensuring their flawless range. Moreover, we are one of the celebrated Manufacturers and Suppliers of Butterfly Valves in India.
pp butterfly valve
Type : 50MM TO 200MM
Material : PP/PPH/PVDF
Pressure : 10KG UPTO 4" 6KG ABOVE 4"
Structure : ONE PIECE BODY
We are one of leading manufacturers of pp butterfly valve in india.
Butterfly Valve
Feature : Weather resistant,Light weighted,Easy installation

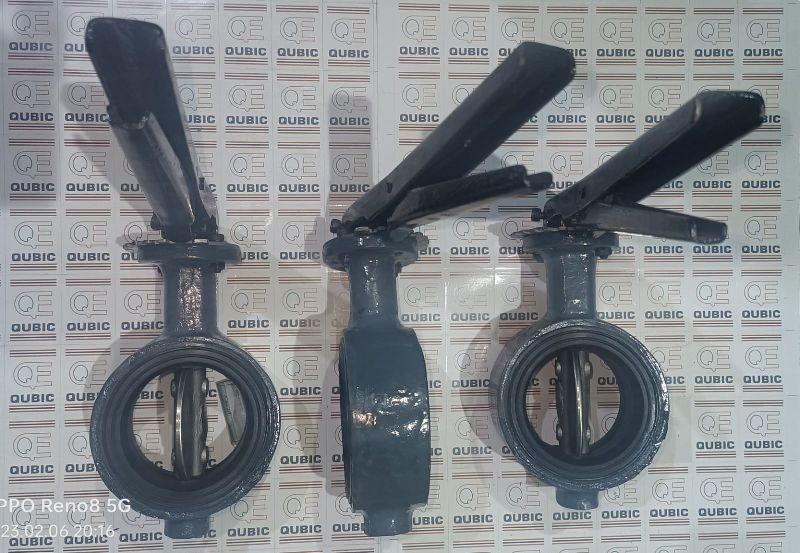

Butterfly Valves
1,000 - 25,000 Per Piece
Brand Name : QE
Material : Cast Iron
Finishing : Coated
Color : AS PARTY REQIRED
Condition : New
Automatic Grade : AS REQUIRED
Actuation Type : BOTH
Usage : ALL
Certification : ISO 9001: 2015
Operating Temperature : AS REQUIRED
Packaging Type : AS REQUIRED
Mounting Type : ALL
Overall Length : DEPAND ON SIZE
Valve Size : UP TO 8
Working Pressure : AS REQUIRED
Packaging Size : AS REQUIRED
Specialities : Non Breakable, Investment Casting, Heat Resistance, Durable, Casting Approved, Blow-Out-Proof
Type : Industrial Valves
Thickness : DEPAND UPON SIZE
Weight : DEPAND UPON SIZE
Structure : Pinless
Warranty : 1 Year
Country of Origin : India
Diameter (mm) : DEPAND UPON SIZE
End Connection : WAFER TYPE
Media : ALL
Voltage Range : AS REQUIRED
Corrosion Resistance : Yes
Number Of Way : 2way
Temperature Pressure : High Temperature Pressure
Driving Mode : AS REQUIRED
Sandwich Butterfly Valve
Material : SS304,304L,316,316L
Standard : ISO, DIN, SMS, 3A
Application : Dairy Produce, Brewery, Food, Pharmacy, Beverage, Cosmetics, Chemical Industry.
Specification : 1” to 12"
G.T. Metals & Tubes is a certified company engaged in SS Sandwich Butterfly Valve. By following systematic production approach, we are supplying our products in all India and across. Our skills and expertise in this field make us reliable and the buyer favorite organization in the market. These products are used in different industries such pharmaceutical, engineering and food industry according to application. These valves are designed & developed using our latest and upgraded technology to meet the diverse need of the client. We use high grade raw material to ensure its quality and performance. Our all products are offered with customized solutions. Owing to its silent attractive features these are widely appreciated by the users.Moreover, in order to cater the challenging and changing need of the customer, we offer our verity in various dimensions and designs. Characteristic points Durable, wear & tear resistance User friendly Customer specific production facility Various verity and designs
Plastic Butterfly Valve
Owing to our enormous years of industry experience, we are putting forth a gigantic cluster of Butterfly Valve. The offered reach is fastidiously tried on different quality parameters and is generally requested in different commercial enterprises. Gave valves are made by using ideal quality crude material and most recent engineering. In accordance with universal standard we furnish the whole extend in different altered alternatives and at moderate costs. Features:» Robust construction» Compact size» Durability
Butterfly Valve
Butterfly valves are one of the most common types of valves that are used in pipelines to regulate its flow. There is a disc inside this valve which is positioned perpendicular to the flow of the fluid. Basically, it is installed in the closed position, but it can turn to open position when the buttery valve is rotated. As this type of valve is a quarter-turn valve, all it takes to open and close the flow is rotating the switch quarterly. When it comes to performance, butterfly valves are quite similar to ball valves. Its design is very compact so it can be handled and installed easily. Adding to it, our butterfly valves are designed in such a way that it provides enormous benefits when applied in the industrial sector. It doesn’t demand much maintenance unlike many of its alternatives and is quite reliable. It can operate manually as well as electronically. ADVANTAGES :- DISADVANTAGES :- Compact size Opens and closes quickly Suitable for industrial applications Reliable Requires minimum maintenanc Some portion of disk always restricts the flow Pressure switches across the valve. FEATURES :- OPTIONS: Bidirectional design Absence of internal cavity Seat replacement Innovative butterfly valve to blend with pipes. Variety of materials to be used in valves’ design.
SS Butterfly Valve
2,500 Per Piece
Material : Stainless Steel
Pressure Type : Medium Pressure
Media : Water
Diameter : 1 to 4 Inches
Cast Iron Butterfly Valve
2,550 Per
1 Piece (MOQ)
Material : Cast Iron
Feature : Blow-Out-Proof, Casting Approved
Media : Water
Country of Origin : Made in India
Valve Size : 150 mm
Connection Form : WAFER / FULL LUGGED
Usage/Application : AIR, WATER
Operation Type : By Lever, By Gear, By Actuator
Butterfly Valves
King Valve have ButterFly Valve in various range. Contact us for more details.
Wafer Type Lined Butterfly Valve
We are offering wafer type lined butterfly valve technical specification design standard : bs en 593:2004 (formerly bs 5155) drilling : ansi b16.5 din pn1016 face to face : api 609 din 3202 k1 bs 5155 iso 5752 bs en 558-12 lining thickness : 3 to 5 mm testing standard : bs en 12266-1&2 (2003).
Lug Type Butterfly Valve
Size : A CATEGORY 'A'
DESCRIPTION : SPECIFICATIONS
BODY : C.I. / SG Iron / WCB / CF8 / CF8M / GM (LG2,LG4) / AB2
DISC : C.I. / SG Iron / WCB / CF8 / CF8M / GM (LG2,LG4) / AB2
SEAT : NITRILE / EPDM / SILICON / VITON / HYPALON
SHAFT : SS 410 / SS 304 / SS 316 / MONEL
Type of Valve : Centric Disc Butterfly Valve with Rubber Lined Body
Body Type : Single Piece, Short Wafer / Wafer Lugged / Double Flanged
Seats Type : Integrally bonded, replaceable
Size Range : DN50 TO DN 800
Pressure Rating : PN 6 (DN 650 TO DN 1200) / PN 10 & PN 16 (DN 50 TO DN 600)
Operating Temperature Range : -25° C to 200° C (Depending on MOC)
Seat leakage performance : Tight Shut off
Operation : Hand Leaver/ Worm Gear Operation- Optional
: Electrical / Pneumatic actuator operation - Optional.
A CATEGORY 'B' : D
E : F
G : FLANGEMOUNTING(I.S.O 5211)
MM : INCH
FACE TO FACE : 150
300 : 50
2 : 43
- : -
28 : 180
200 : 15
F07 : 65
2 1/2 : 46
- : -
48 : 180
200 : 15
F07 : 80
3 : 46
48 : 48
67 : 180
200 : 15
F07 : 100
4 : 52
54 : 54
88 : 180
200 : 15
F07 : 125
5 : 56
57 : 59
114 : 180
200 : 15
F07 : 150
6 : 56
57 : 59
142 : 240
250 : 15
F07 : 200
8 : 60
64 : 73
194 : 285
350 : 15
F10 : 250
10 : 68
71 : 83
243 : 285
350 : 18
F10 : 300
12 : 78
81 : 92
292 : 285
350 : 18
F10 : 350
14 : 92
92 : 117
330 : 300
350 : 22
F12 : 400
16 : 102
102 : 133
375 : 305
500 : 22
F14 : 450
18 : 114
114 : 149
425 : 305
500 : 24
F14 : 500
20 : 127
127 : 159
470 : 370
450 : 26
F16 : 600
24 : 154
154 : 181
570 : 350
600 : 26
PNEUMATICS BUTTERFLY VALVE
