BODY ASTM A 216 Gr WCB | WC1 | WC6 | WC9 | LCB BALL AISI 304 | ASTM A 351 Gr CF8 STEM AISI 304 SEAT & SEALS PTFE MFG STD GENERALLY CONFORMING TO BS 5351 | ISO 17292 TESTING BS 6755 ENDS FLANGED TO BS 10 TABLE “F ” FLANGED TO ASME B 16.5 RF (150#) HYD-TEST PRESSURE BODY : 425 Psig (30 KgCm ²) SEAT : 300 Psig (21 KgCm ²) SIZE RANGE 15 MM TO 600 MM

BODY COVER COWL CAST IRON, DUCTILE IRON, CAST IRON SEAT RING NITRILE | EPDM SMALL ORIFICE NIPPLE BRONZE (STANDARD) | STAINLESS STEEL SMALL ORIFICE BALL STAINLESS STEEL (STANDARD) | RUBBER LINED SEASONED TIMBER MFG STD IS 14845 | MARCK 016 MAX. C.W.P PN 10 | PN 1.6 ENDS FLANGED END TO IS 1538 | ASME B 16.5 HYD-TEST PRESSURE BODY : 225 PSIG (15 KGCM²) SEAT : 165 PSIG (11.5 KGCM²) SIZE RANGE 50 MM TO 200 MM

BODY | BONNET ASTM A 182 Gr F 304 | F 316 TRIMS 18 Cr 8 Ni | 18 Cr 10Ni -2MO MFG STD BS 5352 INSP & TEST STD BS 5146 | BS 6755 ENDS SCREWED TO BSP | BSPT | NPT SOCKETWELD TO ASME B 16.11 HYD-TEST PRESSURE BODY : 3000 Psig (211 KgCm ²) SEAT : 2000 Psig (140 KgCm ²) SIZE RANGE 15 MM TO 50 MM

BODY | BONNET ASTM A 182 Gr F 304 | F 316 TRIMS 18 Cr 8 Ni | 18 Cr 10 Ni - 2 MO MFG STD API 602 | BS 5352 INSP & TEST STD API 598 | BS 6755 ENDS FLANGED TO ASME B 16.5 RF HYD-TEST PRESSURE BODY : 1100 Psig (77 KgCm ²) SEAT : 800 Psig (56 KgCm ²) SIZE RANGE 15 MM TO 50 MM

BODY WCB | CF8 | CF8M DISC ASTM A 351 Gr CF8 | CF8M SEAT PTFE | GRAPHITE FILLED PTFE | GLASS FILLED PTFE MFG STD API 609 INSP & TEST STD API 598 SHAFT AISI 410 | AISI 304 | AISI 316 ENDS WAFER TYPE TO SUIT ASME B 16.5 (150#) OPERATION FLOW CONTROL LEVER | GEAR |PNEUMATIC | OPERATED | ELECTRICAL | ACTUATED HYD-TEST PRESSURE BODY : 1100 Psig (77 KgCm ²) SEAT : 800 Psig (56 KgCm ²)

Operation : MANUAL | GEAR | ELECTRICAL ACTUATED

Size Range : 50 MM TO 1800 MM

BODY | BONNET IS 210 Gr FG 200 | WCB TRIMS GUN METAL | BRONZE | SS 410 MFG STD 50 MM TO 300 MM -IS 780 PN 1.0 | 1.6 300MM -IS 2906 RATING PN 0.4 | 0.6 | 1.0 | 1.6 INSP & TEST STD 50 MM TO 300 MM -IS 780 RATING PN 1.0 | 1.6 300MM -IS 2906 PN 0.4 | 0.6 | 1.0 | 1.6 RATING PN 0.4 PN 0.6 PN 1.0 PN 1.6 ENDS FLANGED TO IS 1538 | ASME B 16.1 (125#) OPERATION MANUAL | GEAR | ELECTRICAL ACTUATED HYD-TEST PRESSURE BODY : 0.6Mpa 0.9Mpa 1.5Mpa 2.4Mpa SEAT : 0.4Mpa 0.6Mpa 1.0Mpa 1.6Mpa SIZE RANGE 50 MM TO 1800 MM

BODY ASTM A 361 Gr CF8 | CF8M | CF3 | CF3M DISC SS 304 | SS 316 SPRING STAINLESS STEEL SPRING RETAINER AISI 304 | AISI 316 SEAT METAL TO METAL | EPDM | NiTRILE | PTFE INSP & TEST STD API 598 ENDS WAFER TYPE FOR 15 MM TO 200 MM SCREWED END FOR 15 MM TO 100 MM HYD-TEST PRESSURE BODY : 854 Psig (60 KgCm ²) SEAT : 569 Psig (40 KgCm ²) SIZE RANGE 15 MM TO 200 MM

BODY AISI 304 | AISI 316 BALL AISI 304 | AISI 316 | ASTM 351 Gr CF8M STEM AISI 304 | AISI 316 SEAT & SEALS PTFE MFG STD GENERALLY CONFORMING TO BS 5351 TESTING BS 6755 PORT FULL BORE | REDUCE BORE ENDS FLANGED TO BS 10 TABLE “F ” FLANGED TO ASME B 16.5 RF (150#) HYD-TEST PRESSURE BODY : 425 Psig (30 KgCm ²) SEAT : 300 Psig (21 KgCm ²) SIZE RANGE 15 MM TO 100 MM

FLANGES SS 316 GLASS TOUGHENED BOROSIL SEAT PTFE MFG STD MARCK | 019 TESTING 100 Psig (7 KgCm ²) ENDS FLANGED TO BS 10 TABLE “F ” FLANGED TO ASME B 16.5 RF (150#) SIZE RANGE 15 MM TO 150 MM

BODY | COVER IS 210 Gr FG 200 TRIMS GUN METAL MFG STD IS 5312 PART I INSP & TEST STD IS 5312 PART I ENDS FLANGED TO IS 1538 HYD-TEST PRESSURE RATING:PN 0.6 PN 1.0 PN 1.6 BODY : 0.9 Mpa 1.5 Mpa 2.4 Mpa , SEAT : 0.6 Mpa 1.0 Mpa 1.6 Mpa

BODY ASTM A 351 Gr CF8 | CF8M TRIMS AISI 304 | AISI 316 WEDGE SS 304 | SS 316 PLATE MFG STD GENERALLY CONFORMING TO MSS SP 81 INSP & TEST STD GENERALLY CONFORMING TO MSS SP 81 MAX. C.W.P 100 Psig (7 KgCm²) ENDS WAFER TYPE SUITABLE FOR

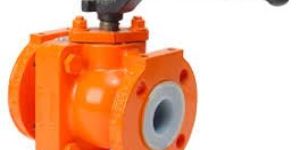

BODY GGG 40 WITH FEP | PFA COVER GGG 40 PLUG ASTM A 216 216 Gr WCB + FEP | PFA LINED DIAPHRAGM PTFE LINING THICKNESS MINIMUM 3.00 MM TO 4.00 MM OPERATING TEMPERATURE FEP : MAXIMUM 200 ºC | PFA : MAXIMUM 260 ºC SPARK TEST 15 KVDC ENDS FLANGED TO ASME B 16.5 (150#) HYD-TEST PRESSURE BODY : 10 KgCm ² SEAT : 10 KgCm ² SIZE RANGE 15 MM TO 200 MM

BODY GGG 40 WITH FEP | PFA COVER GGG 40 PLUG ASTM A 216 216 Gr WCB + FEP | PFA LINED DIAPHRAGM PTFE LINING THICKNESS MINIMUM 3.00 MM TO 4.00 MM OPERATING TEMPERATURE FEP : MAXIMUM 200 ºC | PFA : MAXIMUM 260 ºC SPARK TEST 15 KVDC ENDS FLANGED TO ASME B 16.5 (150#) HYD-TEST PRESSURE BODY : 10 KgCm ² SEAT : 10 KgCm ² SIZE RANGE 15 MM TO 200 MM

BODY GGG 40 WITH FEP | PFA LINED BONNET ASTM A 216 Gr WCB LINING THICKNESS MINIMUM 3.00 MM TO 4.00 MM OPERATING TEMPERATURE FEP : MAXIMUM 200 ºC | PFA : MAXIMUM 260 ºC SPARK TEST 15 KVDC ENDS FLANGED TO ASME B 16.5 HYD-TEST PRESSURE BODY : 10 KgCm ² SEAT : 10 KgCm ² SIZE RANGE 25 MM TO 200 MM

FLANGES ACTACTIC POLYPROPYLENE COPOLYMER GLASS TOUGHENED BOROSIL GLASS SEAT PTFE ENDS FLANGED TO BS 10 TABLE "E" | "F" FLANGED TO ASME B 16.5 RF (150#) SIZE RANGE 15 MM to 300 MM

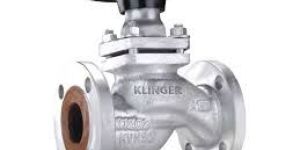

BODY ASTM A 216 Gr WCB | IS 210 Gr FG 200 TRIMS 13 Cr PISTON RING CAF 40 MFG STD MARCK | 018 INSP & TEST STD MARCK | 018 MAX. C.W.P 175 Psig (12.3 KgCm ²) ENDS FLANGED TO DIN 2533 (PN 16) HYD-TEST PRESSURE BODY : 341 Psig (24 KgCm ²) SEAT : 225 Psig (16 KgCm ²)

BODY GGG 40 WITH FEP | PFA COVER GGG 40 PLUG ASTM A 216 216 Gr WCB + FEP | PFA LINED DIAPHRAGM PTFE LINING THICKNESS MINIMUM 3.00 MM TO 4.00 MM OPERATING TEMPERATURE FEP : MAXIMUM 200 ºC | PFA : MAXIMUM 260 ºC SPARK TEST 15 KVDC ENDS FLANGED TO ASME B 16.5 (150#) HYD-TEST PRESSURE BODY : 10 KgCm ² SEAT : 10 KgCm ²

BODY ASTM A 361 Gr CF8 | CF8M | CF3 | CF3M DISC SS 304 | SS 316 SPRING STAINLESS STEEL SPRING RETAINER AISI 304 | AISI 316 SEAT METAL TO METAL | EPDM | NiTRILE | PTFE INSP & TEST STD API 598 ENDS WAFER TYPE FOR 15 MM TO 200 MM SCREWED END FOR 15 MM TO 100 MM

BODY WCB | ASTM A 351 Gr CF8 | CF8M BALL ASTM A 351 Gr CF8 | CF8M STEM AISI 304 | AISI 316 SEAT & SEALS PTFE | GFT MFG STD GENERALLY CONFORMING TO BS 5351 TESTING GENERALLY CONFORMING TO BS 6755 (PART -II) PORT "L" | "T" ENDS SCREWED TO BSP | BSPT | NPT TRICLOVER | SOCKET WELD HYD-TEST PRESSURE BODY : 15 KgCm ² SEAT : 10 KgCm ² SIZE RANGE 15 MM TO 100 MM

BODY IS 210 Gr. FG 200 | WCB | WC1 | WC6 | WC9 | LCB | CF8 | CF8M | CF3 | CF3M SEAT NITRILE | METAL TO METAL INSP & TEST STD MSS SP -81 KNIFE PLATE ASTM A 351 Gr CF8 | CF8M | CI | WCB | CF3 | CF3M LEAKAGE CLASS CLASS - IV ENDS FLANGED | LUGGED TO ASME B16.5 RF (150#) OPERATION MANUAL | CHAIN WHEEL OPERATED | CYLINDER OPERATED

PRODUCT DESCRIPTION INQUIRY BODY ASTM A 351 Gr CF8 | CF8M | 216 Gr WCB BALL ASTM A 351 Gr CF8 | CF8M | 216 Gr WCB ENDS SCREWED END | SOCKET WELD END HYD-TEST PRESSURE BODY : 104 KgCm ² SEAT : 70 KgCm ² SIZE RANGE 15 MM TO 50 MM
