Filter Components Dealers in Paldi, Ahmedabad

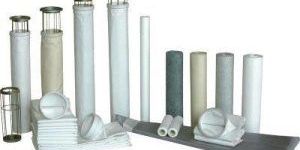

Our firm offers a complete range of Pleated Dust Collection Bag that is commonly used in the field of dust collection system. These bags are made from 100 per cent Spun Bonded polyester media with various coatings on it. Then this spun bonded media are pleated in different pleated depths & heights to accommodate filtration area according to the demand. It offers surface filtration which makes pleated bags to offer high throughput & lower pressure drop across the filter compared to any conventional tube type filter bags. Pleated configuration offers almost 3 to 4 times higher filtration area in comparison to conventional bags.   Construction: Pleated spun bonded polyester filter media is basically placed in a cylindrical configuration with support cage of Galvanized / stainless steel / Polypropylene & encapsulated with EPDM / Natural rubber / Polyurethane or metal end caps to form a pleated dust collection bag Longitudinal joints of pleated bags are ultrasonically fused for leak proof & very stable design The end caps are configured to mount as clean side or dirt side fitments In case of metal caps these bags are supported with soft sponge rubber or snap band cuff sealing to ensure positive sealing of filter while fitments

10” to 40” cartridge length Micron ratings from 0.5 to 25 SS304 / SS316 / SS316L materials 2.5” outer diameter Double Open End (DOE) / 222 and 226 Single Open  End (SOE) Special sizes can be offered

CE, IP67/IP68 STANDARD  Entirely made of AISI 316 stainless steel* Cylindrical body enclosed by two 9mm-thick circular flanges* 2 PG13, 5 cable glands nickel-plated brass for external connections* IP68, submersible up to -50m (-130ft), equal to 5 BAR max pressure* Accessories available: sun shield, heater kit and double power heater (for temperature down to -40°C (-40°F), camera power* Usable area (WxHxL): 88×86×334mm (3.5×3.4×13.1in) * supply, air barrier + filtering group, wiper and washer General * Made of stainless steel (Austenitic alloy stainless steel, corrosion and heat resistant according to the following standards):- UNI 6900-71: X 2 Cr Ni Mo 17 12- AISI: 316L DIN 17006: X 2 Cr Ni Mo 18 10- N° WERKSTOFF: 1.4404 AFNOR: Z2 CND 17-12- BSI: 316 S 12* The screws utilized are in austenitic alloy stainless steel, corrosion and heat resistant according to the following standards:- UNI 6900: X 5 Cr Ni Mo 1712- AISI: 316- ISO quality: A4- Resistance class ISO: 80* Supplied with instruction manual, desiccants bag, accessories for camera and lens mounting* UNI: Ente Nazionale Italiano di Unificazione, AISI: American Iron and Standard Institute, DIN: Deutsche Industrie Normen, AFNOR: Association Française de Normalization, BSI: British Standard Institution, ISO: International Organization for StandardizationMechanical * 2xPG13.5 cable glands in nickel-plated brass for external connections* External body polishing* 9mm (0.35in) thick front and back flanges* O-ring gaskets Tempered window glass: 4mm (0.15in) thick, Ø 97mm (3.8in)* External dimensions: Ø 154mm (6in) length 370mm (14.5in)* Internal usable area (BxH): 88x86mm (3.4x3.4in)* Internal usable area with double heater (BxH): 55x100mm (2.2x3.9in)* Internal usable length* NXM 334mm (13.1in)* Internal usable length with heater and/or power supply* NXM 245mm (9.6in)* Wiper* Wiper blade and enclosure made of AISI 316 stainless steel* Dimensions (ØxL): 100x169mm (3.9x6.6in), not comprehensive of blade* Connector 3+1 pins* IN 230V AC, consumption 7W max* IN 24V AC, consumption 7W maxCompliance To * NXM* CE according to EN 61000-6-3, EN 60065, EN 50130-4* IP68 according to EN 60529 IP66/IPx8 (5 Bar for 48 hours)* VIPNX* CE according to EN 61000-6-3, EN 60065, EN 50130-4* IP67

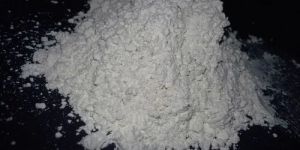

Diatomite Filter Aid, Acyclovir Usp, Expanded Perlite, Perlite Filter Ai

Filter Housing, Bag Filter, Bag Filter Housing, Cartridge Filte

Perlite Filter Aid Powde
