Industrial Molds Dealers in Khodiyar Nagar, Ahmedabad

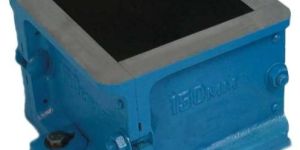

Cubes of fresh concrete are made to test a variety of properties on the eventually cured and hardened concrete. Fresh concrete is subjected to a standard compaction regime in the cube mould and is then normally initially cured under specific laboratory conditions. The moulds are manufactured, subject to tight dimensional, hardness, square ness and surface finish requirements. General Description & Specifications Complete with base plate. The faces of the mould are machined flat to +/- 0.02mm accuracy and finished to within +/- 0.2mm of specified dimensions. Material for construction of moulds is Cast Iron or Mild steel. The moulds are stout enough to prevent distortion and facilitate the removal of the moulded specimen without damage. The Moulds are so machined that when they are assembled ready for use, the dimensions and internal faces are accurate within the specified limits. Internal faces of the moulds are smooth.The base plate is attached to the mould by cleats .The parts of the mould, when assembled, are positively and rigidly held together during filling, subsequent handling and vibration where applicable.SIZES AVAILABLE : 50MM/ 100MM/ 150MM OPTIONAL ACCESSORIES SPANNER FOR DEMOULDING AND MOULDING,TAMPING ROD WITH SAUQRE FACE. CUBE MOULD 7.06 CMS(FOR CEMENT MORTAR) As per IS : 10086-1982, The cube mould is so constructed so as to facilitate separation into two parts. The mass of the mould together with the base plate will be 2.8 +/- 0.2 kg. Material for construction of these moulds is mild steel. BEAM MOULDS For casting concrete specimens for flexural tests. The mould is made of 4 plates assembled together. Each mould with base plate, made of Mild Steel. Faced are machined flat to +/-0.2mm and finished in size to 0.2mm. AS PER IS: 516

Plastic Pipe Fittings Mould, Base Mould, Kitchen Knife Moul

Moulds-Cube Moulds, Beam Moulds, Cylindrical Moulds, Prism Mould (AIM 343, AIM 344, AIM 346, AIM 347, AIM 349 - AIM 354), AIM 376   AIMIL Moulds are made of high quality metal, strong enough to resist distortion & retain their shape and size even under rugged conditions.We offer moulds of different sizes for cube, beam & cylindrical moulding required for compressive strength testing.   Application Moulding Industry Civil Infrastructure Cement/RMC Construction Chemicals Dams & Tunnels Fly Ash Irrigation Railways Sleepers Real Estate Refractories Roads, Highways & Bridges Education Architecture Building Technology Civil Department Geotechnical Science Colleges Metal & Material Tiles & Ceramics Special Applications Fly Ash Traffic & Transportation Railways Roads, Highways & Bridges

Plastics Mould, Pressor Cast Mould, Blow Mould, Plastics Moulded Part

Precision Injection Moulds, Textile Machinery Parts, Bakelite Traverse Dru

Plastic Injection Molded Heat Sealed Battery Containe

Plastic Mould, Plastic Moulded Component

Plastic Molding, Extrusion Blow Molding, Pet Blow Molding Machine

Injection Moulds, Die

Injection Moulding, Ancillary Equipment, Rotomouldin

Cube Mould, Aggregate Testing Equipment, Bitumen Testing Equipmen

Rubber Part Moulded, Rubber Fender, Pneumati
