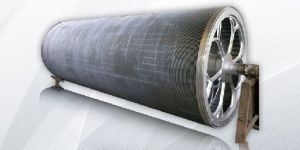

Cylinder Moulds
Get Price Quote
It is the heart of a Paper / Board machine. It controls stick flow, pick-up on the felt and is responsible for good single layer / multi layer formation and substance profile across the full web. It also contains C.I. Spiders with S.S. strip and wounding S.S. 304, 10 gauge wire. It is also duly balanced.
Principle :
The principle of the cylinder mould is to provide the forming surface through which water drains to leave the fibres matted in a sheet. The cylinder is designed to allow drainage uniformly across its width with no turbulence to disturb the fibres during formation.
Sheet formation cannot be improved later in the paper making process. It is produced once and for all on the cylinder mould.
Features :
We make cylinder moulds of circular strip type, very precisely assembled and machined for giving maximum durability, maximum life of wire mesh & best possible formation of paper web as open area is resulting into more & more de-watering.
We produce regular Dia. 1250mm mould with face-length up to 4000mm (as per customer’s need & requirement). Machines with cylinder mould supplied by us are running beyond 300 MPM speed. Cylinder Mould VAT in S.S. fabrication with uniflow, dry-wet flow, counter flow & any other modified version as per party’s technical needs & requirement.
