Jai Industries Rakhial, Ahmedabad, Gujarat

It is used to cover laminates / papers / acrylics / veneers / PVC foil on the materials such as MDF, particle board / plywood Hard rubber rollers and four heater elements, that ensures perfect fix of laminates on board. Motorized up / down movement for thickness adjustment. No waiting period like other press, No limit to the workpiece length, easy to use. Consumes less energy as compare to other press. Adjusting roller speed and temperature gives the best results. Easy accessible mobile control Panel for convenient operations.   In-feed & out-feed wide conveyers, for mass production.

Able to mount maximum 300mm (12") saw blade. Two speed for saw blade for better selection. Mitre fence at the other end.     Heavy Duty Precision sliding table with linear bearing developed with advanced technology with multi-chamber system for maximum rigidity of the double roller carriage       Anodized alluminum rip fence with sliding system on heavy round bar for parallel cutting up to 1150mm.       Easy & fast, saw-scoring blades changing. Also entire saw unit on heavy duty cast-iron trunnion.

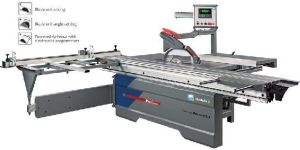

Now you have an option that's equivalent to Euro-quality precision machines, with a 'Pride of India' stamp. Panel Saw of maximum strength & rigidity with value added features, with Jai assurance of quality, services and spares.   The table will never require adjustment due to its structure with arch-ground steel slide ways (SCM exclusive & patented solution) so it can carry loads four times higher than others     It has maximum torsional rigidity and total absence of vibration due to closed loop structure, which ensures perfect alignment of the blades during tilted & difficult cuts.     A dedicated gear box fully protected from dust (SCM patented solution) provides smooth, direct transmission & precise blade adjustment every time

Designed for high speed production routing for getting clean, fast cuts when routing, moulding, making dovetails, grooving, mortising, tenoning & rebatting. Pneumatic control up-down movement of spindle through footswitch gives faster setting Ground and electronally balanced spindle for vibration free operations Easy up and down movement of table   Spindle drive assembly easily accessible for belt tension & maintenance   Engraving can be done on workpiece by copying the design of master jig.

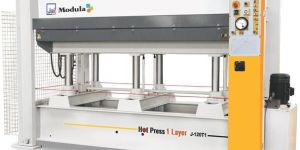

Heavy duty rigid construction to take care of thermal destoration with specially designed platens to have uniform temperature distrubution system throughout its surface. Suitable for pressing & laminating of fibre boards, decorative papers, plywood & other lamination sheets on Particle / MDF / HDF board. Control panel for controls and display with digital temperature controller and adjustable timer for fully automatic cycle.   Heavy duty 6 cylinders for lifting Steel Platen for uniform pressing of work piece. Steel Platen not only can avoid the Platen broken easily, but also it can very easy to clear the glue which adhibit on the Steel Platen.

Sturdily built heavy duty m/c that suit Indian working condition for precise cut with burr free cutting Lifting and tilting of saw unit by hand wheels both on front side for more convenience Electronic digital readout of saw unit tilt Rip fence with fine setting for precise positioning Made in India with best service support & very economical spares   Heavy Duty Precision sliding table with linear bearing developed with advanced technology with multi-chamber system for maximum rigidity of the double roller carriage       Scoring saw precision lever mechanism for manual adjustment controls of the scoring saw.       Anodized alluminum rip fence with sliding system on heavy round bar for parallel cutting up to 1250mm. Fine setting with pinpoint mechanism allows for precise measurements for parallel cuts.       Easy & fast, saw-scoring blades changing. Also entire saw unit on heavy duty cast-iron trunnion.       Smooth-running and powerful saw unit. Runs incredibly smooth, because it is electronically balanced as a fully assembled unit, made of cast components.       The sturdy frame provides a rigid support for all cutting with telescopic cross-cut fence. Also panels to be squared and cuts at an angle up to 45�.

Condition : New

J-2100.in (Single Head) Multi Boring is also available Salient Features : Heavy duty frame to hold boring heads with Quick change spindles chucks. Pneumatic cylinder for head tilting of the tiltable head assembly from 0-90 degree. Elegantly designed, electro-pneumatic control panel. Horizontal & vertical Boring   For vertical boring application. Both heads work parallel vertically (In Model J-2102.in)

Machine suitable for pressing various types of lamination on MDF, particle, plyboards, conposite wood cork boards, fiber board, honey comb board for furniture industries.   Manual & semi-automatic controls, Emergency stop switches, Motor overload relay. Timer control, can set pressing time according to production technology.       Heavy duty rigid construction to take care of pressing distrotion with specially desighned platen and base to have uniform pressure system on workpiece.

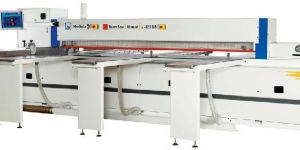

Advanced saw carriage with high feed rate driven by rack / pinion and guided on hard guide rods that ensures high cutting accuracy Precision saw stroke control by sensor A uniform holding pneumatic clamping beam ensuring synchronized cylinder actuation at both ends. Equipped with infeed air floting tables   Advanced Saw Carriage:An advanced saw carriage with high feed rate driven by rack / pinion and guided on hard guide rods that ensures high cutting accuracy. A uniform holding pneumatic clamping beam ensuring synchronized cylinder actuation at both ends.Saw Carrige Drive Motor:The saw carriage is driven by a motor. Variable feed speed for different applications.       Touch screen with PLC control, provide safety and quick speedy cutting.       Scoring Saw blade Adjustment:Can be adjusted vertically for depth of cut control. Once wear occurred, adjust its position for compensation.The scoring saw blade also can be adjusted laterally for alignment to main saw blade       Three front air floating tables for smooth & better feeding movement of workpiece

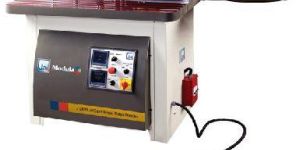

The most efficient entry-level edge-bander, the panel industry can get in this category. Do all your basic edge-banding work on it with Euro standard features like optimal and consistent glue-spreading, heat bonding and pneumatic edge-cutting. The machine guarantees perfect glueing on board as well as on tape at all times and is versatile and suitable to be used by small and large manufacturers.   Efficient bonding system The glue in the glue pot, glue leveler, wiper, the extrusion screw and the heating element all make a bonding system.       Pneumatic cutter on the work table The pneumatic cutting device can be set to actuate the pneumatic cuttur to cut the band. Electronic counter can be used to cut the pre-defined length for curvilinear jobs.

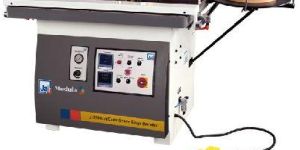

The machine has a specially designed hylum surface working table for heat insulation and side roller support at both ends, which helps in easy movement and feeding of workpiece on the table. The machine guarantees perfect glueing on board as well as on tape at all times and is versatile and suitable to be used by small and large manufacturers. The pneumatic cutting device can be set to actuate the cut of band for a pre-defined length using an electronic counter.       The glue pot, glue leveler, wiper, extrusion screw and the heating element all make a bonding system.       Hylum surface working table can be tilted from 0 to 45° & a unique "Swivel BAr Roller system" for guiding & supporting the work piece.       Easy accessible user friendly PLC control panel positioned at machine front, for easy & quick operations.

The bed is made of square steel, analyzed and designed with heavy duty structure, relieving stress, so the working table is more stable Transmitting system parts with long years work, it can guarantee high precision and less machinery gap. Working table is vacuum table.7.5Kw vacuum pump is Air Type. Double linear bearing to drive the Y shaft, which improve speed and more stable, it can cut repeatedly. High speed and efficiency, empty speed is up to 50000/min, for engraving wave plank, the speed can reach 20000mm/min. Auto lubrication makes maintenance much easier. Compatible Software: Compatible various CAD/CAM software like; Art Cam/ Type3 Self made mold, Heavy Duty and stable casted steel supporting bar. Whole structure processed with heat treatment for long run, error free accuracy.   Linear type 6 auto tool changer with HSK tool holder, which reducing the unproductive time.     Stronger and larger helical rack/ pinion and linear rail. The Rails are specially protected by hairbrush that installed in the blocks, When the machine in running, the clean rails working all the time. This will keep the rails with long time work without being abrasion and last the life of blocks and bearings in the blocks.   9 kw (HSD) Italian Air Cooled Spindle   A convenient, separate control panel box allows flexibility and efficiency in machine operating. High quality & accurate Syntec system from Taiwan.   Precision Vacuum Table: For vacuumed fixing and sure clamping of the workpiece, to ensure steadiness during the entire routing operations   Additional Vacuum pads 8 pcs for special through cutting work.

  Sturdily built heavy duty m/c that gives precise cut with burr free cutting Motorized scoring unit up-down and manual lateral adjustment. When scoring blade is switched-on, the scorer moves to the stored height Extra second support for wider work pieces Central lubrication system facilitate smooth & precise movement Made in India with best service & spares support   The motorized ripfence It has an accuracy of +/- 0.1 mm. The high precision ball spindle system guarantees precise adjustment of the ripfence.   Smooth-running and powerful saw unit It is a powerhouse produced with the latest manufacturing technology. The saw shaft runs incredibly smoothly, because it is electronically balanced as a fully assembled unit, and extensive use of cast components in the making. The high precision vertical movement of the unit is linear with maintenance -free guide bearings & allows the whole unit to tilt easily & precisely to exactly the correct angle.     Eye-level operating panel for the ease of operation All major control functions are always visible. The panel pivots into the most convenient position & is accessible from both sides of the machine.     Heavy duty precision Sliding Table Runs on large rollers sandwiched between hard chromed guide bars. Hollow multi-chamber alu. extrusion guarantees optimal torsion resistance & rigidity     Sturdy Multi Chamber section The multi-chamber system builds superior torsion-resistance and maximizes the rigidity of the double roller carriage, assuring precision movement     Easy & fast changing of saw-scoring blades The machine allows the ease of scoring adjustment from front side. Entire saw unit is on heavy duty cast-iron trunnion.     Digital Read Out (DRO) – Optional Crosscut mitre fence is equipped with DRO that displays the job length digitally. This enables a setting precision accuracy of +/- 0.1 mm.

Sturdily built heavy duty m/c that gives precise cut with burr free cutting Easier & quick scoring unit up-down movement & lateral adjustment Extra second support for wider work pieces Central lubrication system facilitate smooth & precise movement Made in India with best service & spares support. Ripfence with fine adjustment Manual fine adjustment enables the ripfence to be adjusted precisely. The fence can be set with pinpoint precision by means of the adjusting screw.     Smooth-running and powerful saw unit It is a powerhouse produced with the latest manufacturing technology. The saw shaft runs incredibly smoothly, because it is electronically balanced as a fully assembled unit, and extensive use of cast components in the making. The high precision vertical movement of the unit is linear with maintenance -free guide bearings & allows the whole unit to tilt easily & precisely to exactly the correct angle.     Control Panel & Saw unit up-down wheels Lifting and tilting of saw unit by means of hand wheels on the machine. Both wheels are placed on front side for more convenience. Along with user friendly control panel with Electronic Digital readout of saw unit tilt.     Heavy duty precision Sliding Table Runs on large rollers sandwiched between hard chromed guide bars. Hollow multi-chamber alu. extrusion guarantees optimal torsion resistance & rigidity     Sturdy Multi Chamber section The multi-chamber system builds superior torsion-resistance and maximizes the rigidity of the double roller carriage, assuring precision movement     Easy & fast changing of saw-scoring blades The machine allows the ease of scoring adjustment from front side. Entire saw unit is on heavy duty cast-iron trunnion.     Digital Read Out (DRO) – Optional Crosscut mitre fence is equipped with DRO that displays the job length digitally. This enables a setting precision accuracy of +/- 0.1 mm.
