Are designed for safe & Positive visual indication of liquid level in vessels under high pressure & Temperature conditions in Petrochemicals , Fertilizers ,Pharmaceuticals and Chemical industries involving inflammable toxic liquids.
In Reflex level gauge ,the glass has precision groves cut on its inner side .When light strikes on glass cover by liquid is absorbed into the liquid & makes this portion black . Where as light covering the vapour space is reflected back & makes this silver white. It is mainly used for colourless liquid.
In Transparent Level Gauge, the glasses are without grooves and arranged at the front & rear of a slotted liquid Chamber .It is mainly used for coloured liquid ,Steam -Water level measurement.
°
Both can be available in 3000 mm in Single piece length.
°
Imported /Indigenous Glass on request.
Are designed for safe & Positive visual indication of liquid level in vessels under high pressure & Temperature conditions in Petrochemicals , Fertilizers ,Pharmaceuticals and Chemical industries involving inflammable toxic liquids.
In Reflex level gauge ,the glass has precision groves cut on its inner side .When light strikes on glass cover by liquid is absorbed into the liquid & makes this portion black . Where as light covering the vapour space is reflected back & makes this silver white. It is mainly used for colourless liquid.
In Transparent Level Gauge, the glasses are without grooves and arranged at the front & rear of a slotted liquid Chamber .It is mainly used for coloured liquid ,Steam -Water level measurement.
°
Both can be available in 3000 mm in Single piece length.
°
Imported /Indigenous Glass on request.
Mascon make Pneumatic cylinder actuator operated 'Y' Type 2/2 way Globe Valve & same construction is also available with 'T' Type 3/2 way globe valve
Selling Points:
1) Completed valve is made in ANSI304 Invest cast including Actuator and Bonnet.
2) Compact design preferred by OEM when there is lack of space in the equipment.
3) Flow capacity is marginally less than ball valve but largest than conventional globe valve. Fluid: Air, Water, Steam and Chemical
Temperature:- 15 to 180 deg. C.(Temperature above 180 deg. C. refer Mascon) pressure: Vacuum to 10 bar.
...more
Pneumatic cylinder actuator operated 'Y' Type 2/2 way Globe Valve
Mascon make Pneumatic cylinder actuator operated 'Y' Type 2/2 way Globe Valve & same construction is also available with 'T' Type 3/2 way globe valve
Selling Points:
1) Completed valve is made in ANSI304 Invest cast including Actuator and Bonnet.
2) Compact design preferred by OEM when there is lack of space in the equipment.
3) Flow capacity is marginally less than ball valve but largest than conventional globe valve. Fluid: Air, Water, Steam and Chemical
Temperature:- 15 to 180 deg. C.(Temperature above 180 deg. C. refer Mascon) pressure: Vacuum to 10 bar.

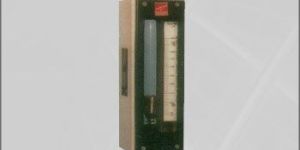

ainly used for measuring rate flow of liquied or gases in pipes.The metering tube Shielded from all sides from all sides with clear front & rear visibility Gland packing construction provided tension free tube installation and perfect stopages of leaking.
°
Various material of construction - C.S, SS-304 ,SS-316 ,P.P., HDPE ,Ptef or PP lined.
°
Flanged or Screwed or Hose connections.
°
Available from 15 MB to 100 NB pipes size and Ranges berween 15 to 15,000 LPh of water ambient temperatuure.
°
End connection ratatable through 360 .
°
No threads in body, avoid corrosion.
°
Linear Scale having Accuracy + 2% FSD
ainly used for measuring rate flow of liquied or gases in pipes.The metering tube Shielded from all sides from all sides with clear front & rear visibility Gland packing construction provided tension free tube installation and perfect stopages of leaking.
°
Various material of construction - C.S, SS-304 ,SS-316 ,P.P., HDPE ,Ptef or PP lined.
°
Flanged or Screwed or Hose connections.
°
Available from 15 MB to 100 NB pipes size and Ranges berween 15 to 15,000 LPh of water ambient temperatuure.
°
End connection ratatable through 360 .
°
No threads in body, avoid corrosion.
°
Linear Scale having Accuracy + 2% FSD
This valve is designed to control and regulated upstream pressure that is inlet pressure of the valve. The basic working principal of the valve is spring and diaphragm type .This design is especially to meet the stringent sanitary and pharma cleanliness norms. There are no cavities in the valve body as well as in the diaphragm chamber as this is made out of pharma tube and the actuator, spring chamber is made out of stainless steel sheet metal .this valve is 100 % drainable there will be no dead leg in the valve at the Outlet. Being diaphragm type construction this is more technically advance and suitable for CIP application compare to other compact valves because those valves are designed on the principal of spring and piston which is not suitable for zero dead leg as there are always be deposition in the aria of 'O' ring and again the piston requires greasing also which is not Acceptable to FDA
This valve is designed to control and regulated upstream pressure that is inlet pressure of the valve. The basic working principal of the valve is spring and diaphragm type .This design is especially to meet the stringent sanitary and pharma cleanliness norms. There are no cavities in the valve body as well as in the diaphragm chamber as this is made out of pharma tube and the actuator, spring chamber is made out of stainless steel sheet metal .this valve is 100 % drainable there will be no dead leg in the valve at the Outlet. Being diaphragm type construction this is more technically advance and suitable for CIP application compare to other compact valves because those valves are designed on the principal of spring and piston which is not suitable for zero dead leg as there are always be deposition in the aria of 'O' ring and again the piston requires greasing also which is not Acceptable to FDA

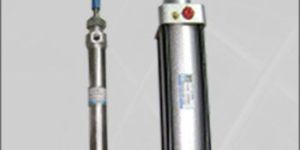

Material• End caps : Aluminum
• Barrel :Stainless steel,
• Piston rod : S.S. 410 Roller burnished, / En8 Hard chrome plated,
• Seal :Polyurethane
Piston Nominal size (mm)12 16 20 25
MediumCompressed air (filtered, Lubricated)
DesignPiston cylinder
Sensing typeNone
Type of cushioningInternal cushioning ring(Non-adjustable)
Operating pressure Min1 bar
Operatingpressure Max10 bar
Min.ambien ttemperature-20°C
Max.ambient temperature80°C
accordance with standard ISO 6432• Bore sizes dia 12, 16, 20, 25 mm• Wide variety of mountings and accessories• High Finish cylinder barrel and piston rod• Low friction and long life
accordance with standard ISO 6432• Bore sizes dia 12, 16, 20, 25 mm• Wide variety of mountings and accessories• High Finish cylinder barrel and piston rod• Low friction and long life
Material : • End caps : Aluminum
• Barrel :Stainless steel,
• Piston rod : S.S. 410 Roller burnished, / En8 Hard chrome plated,
• Seal :Polyurethane

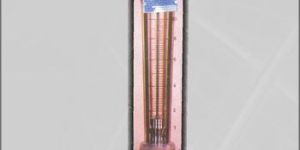

It is precision machined from Imported Transparent solid Acrylic Block Tapering tube is done by special tools. Scale directly Engraved on body.
°
It is mainly used for water, Saline Water , Air , Nitrogen ,Hydrogen , Natural gases.
°
Available from 15 to 150 NB pipes Size and ranges between 15 to 40,000 LPH water of ambient temp
°
Limitation -Max.50 C .temp. fluid
It is precision machined from Imported Transparent solid Acrylic Block Tapering tube is done by special tools. Scale directly Engraved on body.
°
It is mainly used for water, Saline Water , Air , Nitrogen ,Hydrogen , Natural gases.
°
Available from 15 to 150 NB pipes Size and ranges between 15 to 40,000 LPH water of ambient temp
°
Limitation -Max.50 C .temp. fluid
