N K Pharma Industries Vatva, Ahmedabad, Gujarat

Direction Left to Right Production Rate 60 to 250 Carton/min , Depend upon Carton size Electrical Supply 230 v Single Phase, 60 Hz Power Requirement 2.00 HP Height of Conveyor 800 mm to 850 mm Dimensions 1600mm(L) x 700 mm (W) x 1710 mm (H) Net Weight 400 Kgs. (Approx.) Gross Weight 650 Kgs. (Approx.)

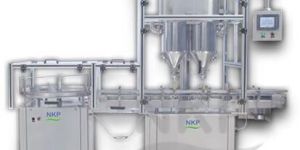

We are offering dry syrup powder filling machine. Model no. af - d - 100 direction left to right production rate 40 to 45 bottlesmin. (for 15 to 20 grms. Filling) fill capacity 5 grams to 50 grams (with different set of auger and funnel) fill range depending upon bottle opening and bulk density of powder. Accuracy ± 2% depending upon consistency and the uniformity of bulk density of powder under controlled level of humidity (i.e. 35%) electrical supply 3.0 hp

We are offering automatic visual vial inspection machine. Model no. nkins - 120 nkins - 250 direction left to right left to right electrical supply 1.0 hp 1.5 hp power characteristics 230 volts, single phase, 50 hz. 230 volts, single phase, 50 hz. Dimensions 3065 mm (l) x 1030 mm (w) x 315 mm (h) 4290 mm (l) x 1230 mm (w) x 1300 mm (h) net weight 450kgs. (approx) 700kgs. (approx) gross weight 625kgs. (approx) 1075kgs. (approx) input specification 5 ml to 30 ml 5 ml to 30 ml

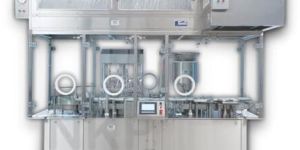

We are offering automatic six head injectable liquid filling machine model no. nklfrs - 150sp direction left to right production rate up to 100 to 120 vialsmin. (for 5ml. Fill size) fill capacity 0.5 ml to 100 ml ( up to 50 ml single dose & for 100 ml double dose) accuracy ± 1 % electrical supply 9.0 hp power requirement 415 volts, 3 phase (4 wire system), 50 hz. Height of conveyor adjustable from 900 to 950 mm dimensions 3000 mm (l) x 1150 mm (w) x 1550 mm (h) net weight 950 kgs. (approx.) gross weight 1250 kgs. (approx.)

Direction Left to Right Production Rate Up to 100 to 120 Vials/Min. (For 5ml. fill size) Fill Capacity 0.5 ML to 100 ML( Up to 50 ML single dose & for 100 MLdouble dose) Accuracy ± 1 % Electrical Supply 9.0 HP Power Requirement 415 Volts, 3 Phase (4 Wire System), 50 Hz. Height of Conveyor Adjustable from 900 to 950 MM Dimensions 3000 MM (L) x 1150 MM (W) x 1550 MM (H) Net Weight 950 Kgs. (Approx.) Gross Weight 1250 Kgs. (Approx.) Type of Rubber Stoppering Pick & Place Syringes available forDifferent Fill Volume 0.5 ML to 2 ML2 ML to 10 ML10 ML to 50 ML No. of Syringes 06 Nos. Fill Sizes 0.5 ml. to 100 ml. Vial Sizes 2 ml. to 100 ml. Rubber Stopper Sizes 13mm, 20mm, 28 mm & 32 mm

We are offering automatic single head vial sealing machine. Model no. nkcs - 80 direction left to right production rate up to 50 to 60 vialsmin. Electrical supply 3.0 hp no. Of sealing heads one power requirement 415 volts, 3 phase (4 wire system), 50 hz. Height of conveyor adjustable from 900 to 950 mm

we offer Automatic Self Adhesive Vertical Labelling Machine. Model No. ASAL - 120 ASAL - 250 Production Rate Up to 120 VialsMin. Up to 240 VialsMin. Electrical Supply 2.0 HP 2.0 HP Power Requirement 230 Volts, Single Phase, 50 Hz. 230 Volts, Single Phase, 50 Hz. Height of Conveyor Adjustable from 800 to 850 MM Adjustable from 800 to 850 MM Dimensions 1830 MM(L) x 800 MM (W) x 1300 MM (H) 1830 MM(L) x 800 MM (W) x 1300 MM (H) Net Weight 350 Kgs. (Approx) 350 Kgs. (Approx) Gross Weight 575 Kgs. (Approx) 575 Kgs. (Approx)

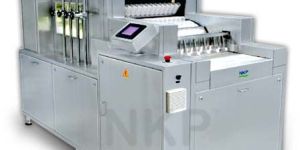

We are offering automatic linear vial washing machine.

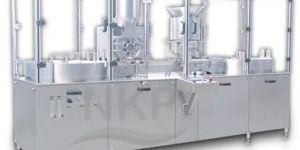

Direction Left to Right Production Rate Up to 120 Fills/Min. for single dose.Up to 60 Fills/Min. for double dose.Up to 40 Fills/Min. for triple dose.Up to 30 Fills/Min. for four dose. Fill Capacity 50 Mg to 1.5 Grms. single dose (with help ofchange parts).1.5 Grms. to 6 Grms. double, tripleand four dose. Fill range depending upon vialopening and bulk density of powder. Accuracy ± 1% depending upon consistency and theuniformity of bulk density of injectable powderunder controlled level of humidity (i.e. 25%). Electrical Supply 5.0 HP Power Requirement 415 Volts, 3 Phase (4 Wire System), 50 Hz. Height of Conveyor Adjustable from 900 to 950 MM Dimensions 3028 MM (L) x 1093 MM (W) x 1885 MM (H) Net Weight 800 Kgs. (Approx) Gross Weight 1200 Kgs. (Approx) Fill sizes 50 mg. to 6 grms Vial Sizes 5 ml. to 30 ml. Rubber Stopper Sizes 20 mm

We are offering automatic external vial washing & drying machine. Model no. nkew - 100 nkew - 200 direction left to right left to right production rate up to 100 vialsmin. (for 5 ml vial) up to 200 vialsmin. (for 5 ml vial) electrical supply 5.0 hp 5.0 hp power requirement 415 volts, 3 phase (4 wire system), 50 hz 415 volts, 3 phase (4 wire system), 50 hz height of conveyor 900 mm (approx) 900 mm (approx.) dimensions 3400 mm (l) x 915 mm (w) x 1400 mm (h) 3470 mm (l) x 980 mm (w) x 1400 mm (h)

Direction Left to Right Production Rate 40 to 45 Bottles/Min.(For 15 to 20 grms. filling) Fill Capacity 5 grams to 50 grams (with different set of Augerand Funnel) Fill range depending upon bottleopening and bulk density of powder. Accuracy ± 2% depending upon consistency and theuniformity of bulk density of powder undercontrolled level of humidity (i.e. 35%) Electrical Supply 3.0 HP Power Requirement 415 Volts, 3 Phase (4 Wire System), 50 Hz. Height of Conveyor Adjustable from 900 to 950 MM Dimensions 2400 MM (L) x 1100 MM (W) x 1800 MM (H) Net Weight 550 Kgs. (Approx) Gross Weight 800 Kgs. (Approx) Bottle Sizes 15 ml. to 250 ml.

We are offering automatic airjet cleaning machine. Model no. atecp-250cr direction production rate 60 to 250 cartonmin , depend upon carton size electrical supply 230 v single phase, 60 hz power requirement 2.00 hp height of conveyor 800 mm to 850 mm dimensions 1600mm(l) x 700 mm (w) x 1710 mm (h) net weight 400 kgs. (approx.) gross weight 650 kgs. (approx.)

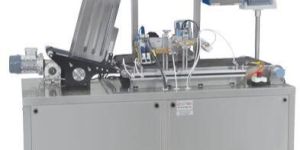

We offer carton coding machine. Model no. atecp-250cr direction left to right production rate 60 to 250 cartonmin , depend upon carton size electrical supply 230 v single phase, 60 hz power requirement 2.00 hp height of conveyor 800 mm to 850 mm dimensions 1600mm(l) x 700 mm (w) x 1710 mm (h) net weight 400 kgs. (approx.) gross weight 650 kgs. (approx.)
