Naman Automotive Solutions Kathwada, Ahmedabad, Gujarat

Naman Computerized Wheel Balancer Model - Truck Static (Single plane) and Dynamic (Two plane) balancing. Two modes of measurements  Normal and Fine. Manual measurement of Rim Diameter & Rim width. Auto unbalance recalculation without Wheel Run on input parameters change. Adjustable unbalance threshold (Weight cutoff) (9 gm to 15 gm for Cars). Self diagnostic, On-line error display facility & Self calibration. Pneumatic wheel lifter allows to lift the heavy truck wheel up to 200 kgs.

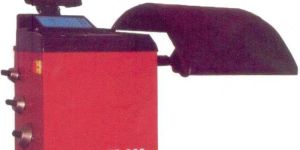

Naman Computerised Video Graphic Wheel Balancer Model FS-968 - 3 aluminum alloy rim programs and static program. Automatic distance and wheel diameter measuring. It is equipped with the standard protection cover. There are self-calibration and self-diagnostic function.

Application : Measuring Wheel Balance

Total Carbohydrate : 1year

Rim diameter : 10" - 24" (254 to 610 mm)

Rim Width : 1.5" - 20" (38 to 508 mm) Noise

Naman Computerized Digital Wheel Balancer Model FS-966 - 3 aluminum alloy rim programs and static program. Automatic distance and wheel diameter measuring. It is equipped with the standard protraction cover. There are self-calibration and self-diagnostic functions

Total Carbohydrate : 1year

Rim diameter : 10

Rim Width : 1.5

Application : Measuring Wheel Balance

Country of Origin : 110V

Driven Type : Electric

Total Carbohydrate : 1year

Specifications : Max. Wheel Rate 65 Kg. Max. Tyre Width 400mm RPM 180 - 270 Precesion 1 g Power Supply 220 V Balancing Type : Statetic / Dynamic 60g counterweight for calibrating Weight Plier Locking Nut

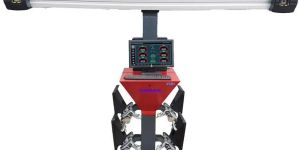

Wheel Aligner (Naman) - 3D Wheel aligner is stable, accurate, low cost and easy to maintain 2 camera wheel alignment system, specially designed for clients who need to expand their business with high performance equipment requirement. This product has outstanding & unique features and the most advanced technology to ensure the growth of your company frame.   Features : Measuring Range with Accuracy Clamping range (inch) - 11 - 22. Wheel base (mm) - 2010 - 4570 Wheel Size Range - 10" - 20" Total Toe -20° with 4' Individual Toe - 10° with 2' Camber - 15o with 2' Castor - ±28o with 6' Kingpin Inclination - 20° with 6' Wheel Setback: 25 mm with ±2 mm Thrust Angle - 6o with 2' Power Supply - 110V / 220V, 1 phase

Brand : Naman

Country of Origin : Ahmedabad

Computerised PC based with CCD having facility of generate & maintain customer's data bank and facility for customised print out. Specifications : Display : Colour LCD with high pressure resolution graphics Measuring Range with Accuracy Wheel Size Range 10" - 20" Total Toe ±20° with ±2' Individual Toe ±20° with ±1' Camber ±10° with ±5' Castor ±18° with ±5' Kingpin Inclination ±18° with ±5' Wheel Setback ±5° with ±2' Load Capacity of Turntables 600 Kgs Power Supply 220V, 1 phase

We are offering video graphic wheel balancer.

An electro-pneumatic Tyre Changing machine designed to cope with the toughest duties and guarantees maximum efficiency and ensures fitment and removal of tyres (without touching the arm) in the fastest possible time. Specifications : Maximum Tyre Diameter 38" External Rim Clamping 10" - 18" Internal Rim Clamping 12" - 20" Drive Motor 55 KW, 3 phase, 415 volts Rim Width Max. 10" Compressed Air Supply 6 - 12 bar Bead Breaking Pressure 16.5 KN at 12 bar

Tyre Changer (Truck) - An electro-pneumatic Tyre Changing machine designed to cope with the toughest duties and guarantees maximum efficiency and ensures fitment and removal of tyres (without touching the arm) in the fastest possible time.

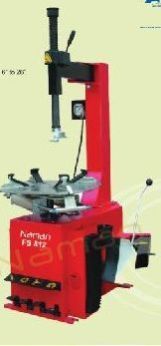

Tyre Changer (RFT) - An electro-pneumatic Tyre Changing machine designed to cope with the toughest duties and guarantees maximum efficiency and ensures fitment and removal of tyres (without touching the arm) in the fastest possible time. Pneumatically operated tilting column.Simultaneous pneumatic horizontal and vertical arm locking. Capable of handling stiff, wide and low-profile tire. The clamping jaws and mounting and de-mounting head are made of high-quality alloy steel and of scientific structural design protects steel rim form any damage during operation.

We are offering two post lift, as attached in technical catalog.

Mig-Mag Gas Shielded series can perfectly weld on lots of material including carbon steel, alloy steel, alluminium and copper alloy etc. Different alloy wires can be chosen according to other different alloy materials. Specifications : Main Voltage 1PH220V/50Hz Input Power 5.7 KVA Electric Welding Current Range 35 - 210A Duty Cycle 25% Weight 71 Kg Flux Cored Wire 0.5 - 1.0 Wire for Aluminium 0.8 Instulation Class F Protection Degree IPS21S Dimension 920 x 390 x 640

Total Carbohydrate : 1 Year

Diesel Smoke Meter (SM054) - The Namtech Diesel smoke meter is a high quality microprocessor based instrument that combines optical precision with a robust design to give long and trouble free service. The equipment allows two different measurement methods -contineous measurement and free acceleration test - average. Naman Diesel smoke meter meets with all requirements specified by the Central Motor Vehicles Rule and is suitable for use at service stations, Filling Stations and automobile workshops for pollution checking.

Gas Analyzer (GA 954) - The Namtech Gas Analyzer is a high quality microprocessor based instrument that combines optical precision with a robust design to give long and trouble free service. The equipment allows normal acceleration measurement method. Naman Gas Analyzer meets with all requirements specified by the Central Motor Vehicles Rule and is suitable for use at service stations, Filling Stations and automobile workshops for pollution checking. Gas Analyzer measures exhaust gas of LPG/CNG and Petrol vehicles.

Application : Industrial

Automatic Grade : Semi Automatic

Feature : Easy To Carry, Light Weight

DIESEL MACHINES For Diesel Vehical PUC Checking DIESEL SMOKEMETER (SM054) WITH OIL TEMPERATURE AND PIEZO RPM SENSOR (SIZE : 6mm DIA) *** : With this Piezo Sensor, one can check vehicles with Diesel Cars with Fuel Line 6mm dia DIESEL SMOKEMETER (SM 054) WITH ALTERNATIVE TECHNOLOGY BY UNIVERSAL RPM ADOPTER *** : With this, one can check any Diesel Cars RPM Specifications : Gas Sampling Partial Flow Measuring Light Path : 40 cm fixed   Temperature : Gas Temperature Display   Measurement Range Opacity in % 0 - 99.9% with ± 1% resolution Measurement Range K 0-9.99 with ± 0.01 resolution Measurements Oil Temp and Enginne RPM Power Requirement 220V, 50Hz

We are offering pollution check equipment.

Heat exchanger and diesel burner for painting and drying car in most suitable ambient conditions.

Country of Origin : 380v/ 3ph/ 50hz

Total Carbohydrate : 1 Year

In order to deliver consistent quality products, we keep our vigil eyes on product development, storage and final dispatch. Backed by a productive network, our company is able to cater to buyers all over Ahmedabad(India) and other Ahmedabad(India)s with ease.   Technical Specifications : FS 7000 Intended to generate nitrogen from compressed air with carbon molecular sieve based on PSA separation technology. Mainly constructed with filtration device, carbon molecular sieve, Nw reservoir and control system. Pressure regulator is equipped to limit pressure of input compressed air. Pressure sensor with high precision made by US Nova sensor.

Driven Type : Electric

Total Carbohydrate : 1year

Technical Specigications: FS 4000L Vehical Applicable Two, Four Wheeler Power Supply 220V, 50Hz Power 60W Max Compressed air pressure 145Psi/ 10bar / 10Mpa Nitrogen Purity 95 - 99% Nitrogen Capacity 70L Nitrogen Producing Speed 66L/Min Output Nitrogen Pressure 58-87 Psi/ 4-6Bar / 4-6Mpa Gross Weight 194 Kg Built in Electric Control Vacuum Device 10M High Pressure Charge Hose

Ac Recovery, Recycling & Recharging System (nac 540p) - Recovery, Vacuum, Charge. LCD Display, Operation & Service prompt, High/Low pressure protection, Drain & charge compressor oil manually. Built in Printer(Optional).

Naman offers 4 post lift of international standard quality and dependibility. The lift consist of 4 steel posts with platforms to raise vehicles upto 3.5 tons on all four wheels. Specifications : Lifting Capacity 3.5 T Lift Time 60 Sec. Lowering Time 55 Sec. Over all Weight 1000 Kgs. Motor 2.2 Kw / 400V Standard Accessories Power Pack Sliding Plates Turn Tables Steel Ramps   ELECTRO-HYDRAULIC LIFT WITH BASE TH090 :One piece formed steel post, hydraulic pressure for lift drive, double safety with double locking devices on lifting chain and cable on both posts, use un-symmetry arm, the stabilization is better for lift drive.
