Nirmal Poly Plast Industries Satellite, Ahmedabad, Gujarat

Specially Designed Lever & Links For Automatic Plate Shifting After reaching a predefined pressure, usually around 3 - 7 bar, depending on the sludge characteristics, sludge feeding is stopped & the rubber membranes inflated, using either water or air as squeeze medium.

Special High Temperature Resistant Elements Many filtration conditions are with feed slurry temp. of upto 60-70 Degree Cent. & working pressure upto 4-5 Kg.cm2. But there are such requirements where filtration take place with higher temp. then 70 degree cent.

Automatic filter cloth washer system consists of hydro motor driven washer trolley constructed of structural steel, sliding on specially designed side bars having uhmw slide, fixed on both sides of filter press side bars. The vertical washer hyd. Cylinder is fixed on the center of the washer trolley for the vertical movement of washer nozzles head. The washer nozzles are located on a S.S.304 fixed hex head coupled with the washer cylinder. High pressure water hose is connected to the hex bar, guided by the drag chain, which allows the cloth wash water from high pressure cloth wash pumps to the spray jet wash nozzles.

Operation Of Hydraulic Side Cylinders Auto Plate Shifting mechanism to shift all the Filter Plates in different groups in different bunch operated through extra side Hydraulic Cylinders located on the side supports i.e. M.S. Flats of Filter Press simultaneously one after the other along with the opening of the Filter Press.

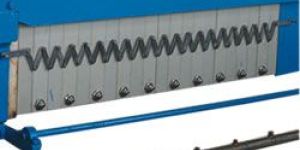

In Palm oil Refinery and down stream fractionation and specialty fats processing industry, the fully automated side bars designed membrane filter presses are used to separate various types of Palm stearine from Palm olein in crystallised slurry palm oil fractionation processes. Fractionation of palm oil can be described as follow. The triglycerides found in the oil have different melting points. At certain temperature, the lower melting temperature triglycerides will crystallize into solid separating the oils into both liquid (Olein) and solid (Stearin) fraction. The fraction can then be separated by filtration.

Specially for palm oil refinery, fractionation process is required in which palm olein and palm stearin are separated by scientifically cooling the refined palm oil by chilling plant and then filtering the oil. For this purpose crystallizing vessel is used in which chilling pipe coils cool the oil for fractionation. Palm stearin crystals are formed due to chilling which are separated in Specially Designed Fully Automatic Membrane Chamber Filter Press and pure liquid of palm olene is obtained and palm stearin cake is retained in the Membrane filter press.

Because of its simplicity and flexibility, the chamber Filter Press has been widely applied in clarification and dewatering applications. Membrane Filter Press technology is gaining increased acceptance because it reduces subsequent processing or disposal costs for filter cake.

Automatic mechanical Filter Presses require only operation supervision. In short, YOTANA manufactures a complete range of filter presses, able to satisfy even the most difficult filtration requirements.

Mechanical Chain Drive Operated Plate Transport Dogs Automatic Individual Mechanical Chain Driven Plate Shifting Mechanism by the help of specially developed shifting Dogs.

I-Beam Type Over Hanging Huge Sludge (Solid) Handling capacity upto 10 M.T.Single Batch (Dry). As Plates are Overhanging Type no Handles Sliding on The Side Bars Hence. No Wear & Tear of Side Bars Thereby Increase Strength as Main Supports Are I – Beams on The Top. Easy Access to the Centre Hole For Cleaning.

Capacity : upto 10 M.T./Single Batch (Dry).

Hydro-Motor Driven Automatic Individual Plate Transport Carriage The Plate Shifting Device shifts individual plates (One after the other) immediately after the filter press opens (i.e. after the moving end body is retracted )

High Pressure Rubber Membrane Chamber Recess Plate its simplicity and flexibility, the chamber Filter Press has been widely applied in clarification and dewatering applications. Membrane Filter Press technology is gaining increased acceptance because it reduces subsequent processing or disposal costs for filter cake.

High Pressure Pp Combination Chamber Plate In both cases the careful selection of plate and membrane materials is essential to the successful performance of the process.Membrane Filter Press Plates have a chamber below the drainage surface that can be inflated.

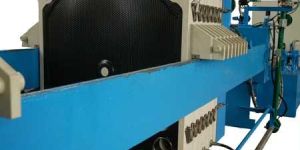

High Pressure Membrane Filter Press manufactured by us is very efficient and offers various advantages. Once the filtration cycle is complete and final filtration pressure is achieved the feed into the filter press is stopped which is the only difference with its recessed chamber counterpart. We provide these to our clients at industry leading prices and ensure prompt delivery. Installation The High Pressure Membrane Filter Press can be installed as either A full plate packAlternately in conjunction with recessed companion plates which is a more economical option Membrane filter plates are used to Reduce filter cake moisture contentReduce filtration cycle timeImprove cake washing Features Manual & Hydraulic Conventional Filter PressFully Automatic Filter Press with auto Plate Lifting - Shifting MechanismHigh Pressure Membrane Fiilter PressesHigh Temperature Resistent PP Filter Elements (Plates) suitable for working Temperature upto 95oC Sizes Available 300x300 mm to 1500x1500 mm

High Pressure Epdm Rubber Membrane Chamber Recess Plate Because of its simplicity and flexibility, the chamber Filter Press has been widely applied in clarification and dewatering applications. Membrane Filter Press technology is gaining increased acceptance because it reduces subsequent processing or disposal costs for filter cake.

We have a strong foothold as Manufacturer, Exporter and Supplier of GMP Filter Press from Gujarat, India. We are engaged in making available preeminent quality Yo-Tana Semi as well as Fully Automatic GMP Press. It is specifically designed making use of top grade S.S. Cladding so as to enhance its functionality. The Filter Press is intended to be used specially for Pharma & other allied industries where the corrosion is affected. Moreover, our GMP Filter Press can be added in Full Flame Proof Electric Components Package.

We are leading manufacturers, exporters and suppliers of fully automatic membrane filter press with multi group plate shifting. As the name suggests it consists of group of multi group plates. These are provided at reasonable prices to our clients. We deliver the fully automatic membrane filter press with multi group plate shifting within a short period of time. sizes available 300x300 mm to 1500x1500 mm

Material : Metal

Number Of Flower : Membrane Filter Press

Application : Filtration

Nirmal poly plast industries manufactures a wide range of fully automatic membrane filter ranging from 150 mm sq. To 1500 mm sq. Type of plates like chamber plates. Plate & frame are available in one eyed, two eyed, three eyed, four eyed and five eyed design. The plates are being molded by a special technique called icm process. Both the high pressure filter plates come with standing a pressure upto 25 bar, and low pressure filter plate upto 7 bar. We have the capacity to produce 15000 nos. Of filter plates per year and 250 nos. Of filter press of different size /year.

Material : Metal

Number Of Flower : Fully Automatic Membrane Filter

Fully automatic membrane filter press individual plate transport system manufactured, exported and supplied by us has a plate shifting device which shifts individual plates immediately after the filter press opens (i.e. After the moving end head is retracted ). It is operated by hydro motor with necessary chain and sprocket design. All the essential controls for speed and pressure are incorporated in the hydraulic power pack unit. The system contains high temperature resistant pp filter elements suitable for working temperature upto 95 degree centigrade. sizes available 300x300 mm to 1500x1500 mm

Number Of Flower : Membrane Filter Press

Material : Metal and Polypropylene

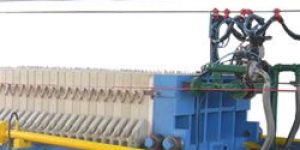

Fully Automatic Membrane Filter Press is Manufactured, Exported and Supplied by us contains P.P. Rubber Membrane Filter Plates and a mechanical de- watering of the filter cake is possible. These are equipped with an exchangeable soft rubber squeezing Membrane. The two squeezing Membranes are of the same design and can thus be exchanged with one another. This Membrane plate is always used in combination with a recessed Filter Plate. Due to this combination one squeezing membrane is acting in each Filter Chamber. Features Uses air as a pressure medium The squeezing pressure can be chosen up to 6 to 18 Kg./cm2 Offers more convenience as compared to the traditional filter press with recessed plates

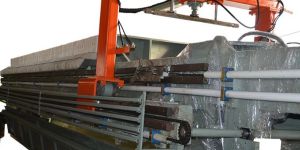

We have carved a niche as Manufacturer, Exporter and Supplier of Fully Automatic Filter Press from Gujarat, India. Our Automatic Filter Cloth Washing System consists of Hydro Motor driven Washer Trolley that is designed using premium steel. Non-corrosive and resistant to weather, corrosion and abrasion, our Fully Automatic Filter Press is comprehensively in demand. Buyers can purchase it from us at the best market prices. Details : Sliding on specially designed side bars having UHMW Slide, fixed on both sides of filter press Side BarsThe Vertical Washer Hyd. Cylinder is fixed on the center of the Washer Trolley For the Vertical Movement of Washer Nozzles HeadThe Washer Nozzles are located on a S.S. 304 fixed Hex Head coupled with the Washer CylinderHigh Pressure Water Hose is connected to the hex bar, guided by the Drag Chain, which allows the Cloth Wash Water from High Pressure Cloth Wash Pumps to the Spray jet wash Nozzles. The Cloth Washer Cylinder and Washer Trolley both are operated through the common Hyd.Power Pack and controlled by a set of Proximity Sensors to sense the Filter Plate Shifting Operation.

The automation level can also be adapted to meet your requirements: Semi-Automatic Filter Presses need operator intervention during some cycle phases;

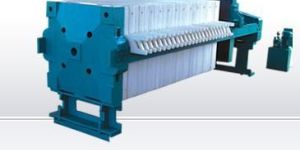

We offer filter press. Conventional filter press used in many solid - liquid separation like chemicals,waste water, etp, stp, oil, marble etc.

Number Of Flower : Conventional

Application : Solid-liquid Separation In Chemicals, Wastewater Treatment, Oil Industry, And Marble Industry,Industrial Filtration Processes

Material : Stainless Steel, Cast Iron, And Polypropylene

Packaging Type : Multicolor

Size : Standard

Purity : Pressure-driven Operation, Filter Cloth For Separation, Hydraulic

Dual Pump Unloader Type Hydraulic Motorized Power Pack Special plates can be designed for higher feed & squeeze pressure. Replaceable membranes can easily changeable. EPDM thermoplastic and other compounds are used for specific conditions.
