Perfect Engineering Corporation Odhav, Ahmedabad, Gujarat

This machine eliminate Acid treatment machine or other highly toxic chemical coating used for preventing lapping tendency on cots. The machines can process all types of cots like Draw frame, Combers, Sliver lap Ribbon laps and all the variety of cots from Ring frames & Speed frames.

With Three oil Tanks- For Topping Oil,Flushing Oil & Fresh oil. Two Oiling Guns – For Bolster Flushing and Filling bolster with Fresh oil. Fine filter for flushing oil Flushing oil tank capacity: 23 Litre. Topping oil tank capacity: 13 Litre. Used oil tank capacity: 9 Litre.

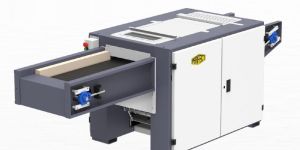

For Opening loose Roving waste Better Griping thanks to special design of Feed Plate Pinned type beater ensures zero fibre damage Power 5.2 kw.

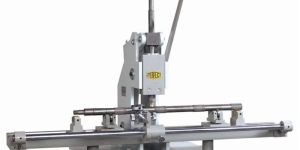

Manual operated press. For Truing the Bottom roller/Shafts . Can handle rollers up to 40 mm diameter. With a dial gauge to measure Eccentricity.

Suitable for mounting wire on rollers upto 1600 mm Length Can be used to mount wire on Licker in, Feed Roller, Redirecting Roller, Stripping Fillet, Blow Room Beaters , etc Traversing assembly with bearing guiding unit & wire Tension Indicator Drive unit driven by A.C geared motor, Speed Control by Variable frequency Drive.

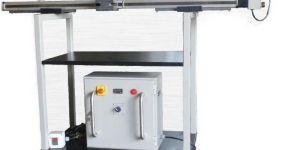

Having Liner Drive main unit A.C. variable Driver Grinding stone Force is, on Gravity Froce Bracket for holding one any one make of card Extra bracked for other make of card will be at extra cost Also available for Tc 11 & Rieter c-70 Cards.

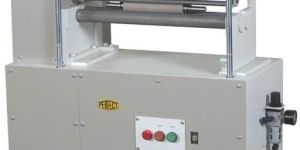

Pneumatic cot calendaring machine (PCC) for removing air trapped in long cots of Draw frame and Combers after mounting. Pressure by pneumatic cylinder motor driven. Auto off Connected load. Also available with manual pressure(MCC).

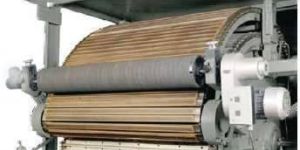

The OCFG-1 will grinding flat from all types of 40” card (60” version on request). Full width on Card Grinding Roller for Rieter C-60 Card, mounted with Ceramic Stones. Also available for 40” Card. Dressing bed for stone dressing of On Card Flat Grinder for Rieter C-60 Card .

Manual operated press. For Truing the Bottom roller/Shafts . Can handle rollers up to 40 mm diameter. With a dial gauge to measure Eccentricity.

Accurate & precise truing of Bottom rollers, Shafts etc. Can handle rollers up to 40 mm diameter. Hydraulic operated press Eccentricity checking gauge is included.

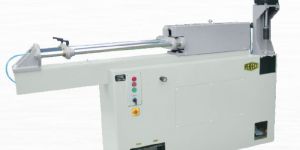

Suitable for mounting long cots ( Draw Frame, Comber ) with Aluminium core. Possible to adjust stroke as per the cot length Maximum pressure that can be exerted - 7.5 tons Horizontal version available on request .

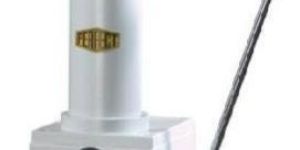

Greasing tank having 2 kg capacity (Approx). Calibration system to control delivery of grease. Machine is operated by single handle with dual function, arbour is pushed upward to the nozzle and pump the grease.

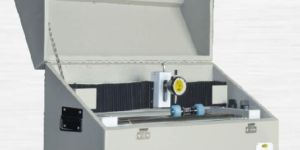

For checking eccentrincity and taper of all types of top Rollers Fully Motorized, equipped with one dial gauge having motorized traverse.

Hydraulic Fluted Roller Truing Machine Accurate & precise truing of Bottom rollers, Shafts etc. Can handle rollers up to 40 mm diameter. Hydraulic operated press Eccentricity checking gauge is included.

Diameter : 40 mm

For milling worn out flat ends, bring the original accuracy of Heel & Toe. With fixed cam arrangement. Novel arrangement of fix cam for accurate and easy Heel & Toe Milling. Machine should be supplied with one pair of cam suitable for one make of card. Control bar with supports and dial indicator. The FEM-2 will mill flats types of 40” cards (60” version on request) Two speed gear box to change RPM of cutter. Clamping of flat by pneumatically operated clamp. Pair of cam for any make of card.

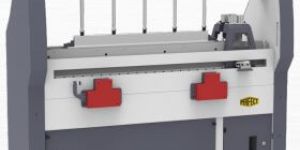

All fully automatic PLC control machine Flat clamping unit, pre-bending and form rolling unit is pneumatically control. No manual clipping is required at end of top. Highest precision with respect to straightness of the flat bar in the clipping process. Old Top Tear of attachment - for any one make of flat can be supplying with machine PFC-3.

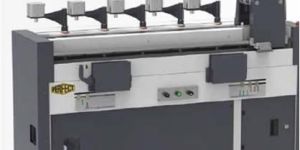

Fully automatic PLC control machine Pneumatic cylinders for all actions No need for manual hammering for clipping at both ends Ensuring safety, thanks to safetylight curtain Quick and easy pre-programmable for different make of card’s flats Carriage movement guides by LM guide for rigidity Top pressing and clipping to the flat is simultaneous operation ensures highest precision of clipping with respect to straightness of the flat bars Also available for Rieter C-70 Card flat and Trutzchler TC 11 card flat, (PFC-4-60) Motor 1.1 kw

Raw material is expensive. Effort should be to maximise its use. Yarn is traded as commodity, Increasing Price Competition. Control on Raw Material cost is very important. Key to success for any industry. In Textiles, nothing is waste. It can be used for some Purpose. Try to recover as much fiber as possible from the waste generated during Spinning process and use it for some lower application.

For Mounting & Demounting of short Alucore cots of Ring Frame,Speed frame,O.E Testurizing Heavy duty machine for friciton rollers, wool spinning. murata jet spinner, for mounting & Demounting Alucore cots on top rollers of Ring frame & Speed frame.

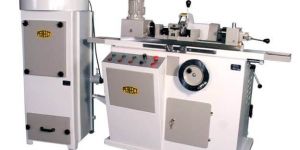

Manual Cot Grinding Machine SM-3 suitable for all type of long top rollers of Draw frame, Comber & also for O.E. and Texturizing Machine Cots. Grinding between centre with 25mm wide stone. Hydraulically operated variable table traverse. Manual Cot Grinding Machine SMH-4 with same features of SM-3 with manually operated variable table traverse.

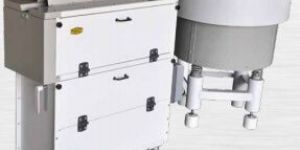

With Auto feed Magazine, Requires less man attention Motor operated Cleaning roller With Attached Pnuemafil system Machine also available without Auto Feed Magazine.
