Grinding Machine Dealers in Ahmedabad

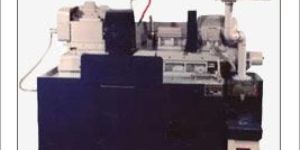

Two Models 1.For Flat Circular Objects: e.g. Steel Centers for diamond tipped circular saws, Or for carbide tipped                                                   circular saws, HSS circular saws, etc. with magnetic chuck. 2.For other types of components: e.g. Automotive Gear Face Grinding,                                                                Submersible pump bowls/stages face grinding, etc. Fully automatic processing & dressing cycle, auto size control. PLC based controls, stepper motor drives for feed slides. Grinding and work-head shafts on ISO:P4 class bearings, grease packed for life Feed Slide on Linear Bearings. Min. Feed Resolution – 0.005mm (5µ).   Steel Centers of Diamond tipped circular saws for stone cutting. Carbide tipped circular saw centers. HSS Circular Saws.

Bed made of high tensile strength cast iron, heavily ribbed for better vibration damping and shock absorption.,Grinding wheel spindle mounted on special tilting pad type hydrodynamic bearings. Regulating wheel spindle mounted on super precision antifriction bearings for higher rigidity.Faster & easy wheel change due to cantilever design spindle. Automatic separate lubrication system for grinding wheel head spindle.

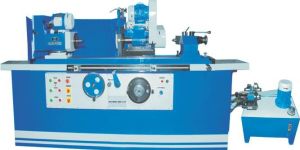

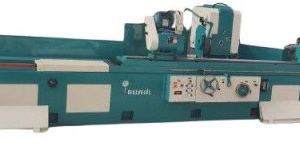

Hydraulic Cylindrical Grinding Machine Bhavya Machine Tools provides a vast variety of grinding machines that includes cylindrical grinder. These tools are useful for grinding metals and other materials. We offer tools that are well designed and accurately engineered. Our tools are highly efficient. These tools are safe, tough and long lasting. They are corrosion-resistant and can withstand all weather conditions. We supply consistent, stable and cost-effective grinders. Our instruments are always tested to ensure smooth and trouble free running. We supply these instruments in various specifications. Our grinding tools are used in many industries including engineering, automobile, electrical etc. BED Made of high grade cast iron provided with strong ribs for rigidity and a large Inverted prismatic Guide and Wide track, For the table. All the guide ways are carefully hand scrapped to ensure high accuracy. TABLE Is composed of two parts. Upper table can be swivelled and set easily on either sides by means of set screw and scale. Table slide is hydraulically operated. And cross slide is Hydro mechanically operated. WORK HEAD : The work head is swivelled type to grind angular as well as conical jobs. Itis built forgrinding both with revolving and stationery centers.

Heavy duty, continuous type ball mill is with three compartment and screen. Replaceable Liners are fixed inside entire mill. Liners material and shape is selected based on material to be grind. Input material is fed in two primary grinding compartments. Large diameter balls for reduce particle size are laying inside first compartment. Material comes into second compartment for further grinding. Small size Balls are laying inside second compartment. Material comes into third for fine grinding. Smaller size media are laying inside third compartment for fine grinding. Diaphragms may place to regulate material level and control retention time. Material is feed and discharged through hollow trunnion at opposite end. Accessories like air classifier, cyclone, blower, return air circuit or dust collector can also be placed for close loop system. Two tiers fixed on both end of mill, which are rotate on four rollers. Rollers are fixed on support and oil immersed. Mill rotates on four roller and two tiers. Girth gear is fixed on shell, which driven mating gear, gearbox and motor, which are fixed on heavy drive base.

We are widely acclaimed as one of the key Automatic External Plunge Grinding Machine Exporters and Suppliers in Indian as well as international markets. The Automatic cycle operates as follows : Rapid approach, rough feed, coarse feed, fine feed- spark out and Rapid.Return of wheel head and in feed retraction. The total amount of in feed and fine feed along with feed rate for course & fine feeds, is also selectable & Interspacing with any type of in process gauge is also available optionally.For long jobs selection is available for terminating the grinding cycle at left/right end position of the table. Cross Slide is more rigid having 320 mm width and coated with Turcite-B slid way material to prevent stick slip motion or mount with LM guide ways optionally. Our Grinding Machines are high on demand in global market. Moreover, it is available in various technical specifications as per the requirements of the clients. Automatic external plunge grinding machine having in-process electronic guage with automatic size control.

Our Grinding Machine is highly demanded in the market. We manufacture the Grinding Machine using the best quality parts and components. The Grinding Machine provided by us is easy to maintain and use as well. The Grinding Machines are manufactured using latest technology for fast performance and non-stop working of the hardest materials. Highlights Of Our Grinding Machine : Easy to maintainSturdy constructionSmooth workingLow vibrations with reduced noise levelCustomized variations available

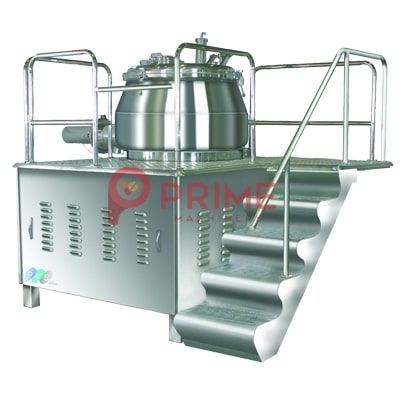

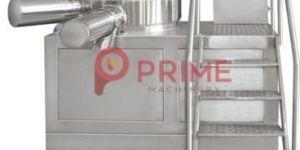

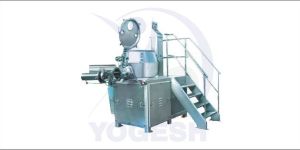

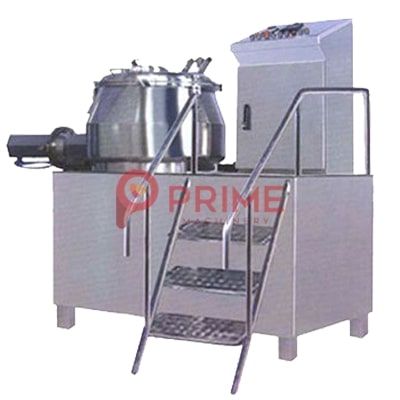

APPLICATION : MIXING BOWL AND COVER: in three section • The mixing bowl is fabricated with S.S. 316. The bowl is specially design in three sections. The flat bottom, mid portion is cylindrical and the top portion is conical. This design helps the machine to move efficiently. The machine is provided with the counter balanced lid. The lid is provided with the vents, charging openings and view ports. THE MAIN IMPELLER AND DRIVE: The main impeller is consisting of dual speed 750/1500 synchronous dual HP TEFC motor, coupled through a belt drive to a worm reduction gearbox with chain coupling. The machine is consisting of specially designed bearing housing to drive the impellers. The impeller does the mixing at the bottom and at the centre of the bowl. The inside wash facility is been very helpful for quick change over. The bearing housing prevents the leakage of the powder from the bottom entry. This design leads to longer life of the gear box. CHOPPER: The dual HP dual speed (1440/2800 synchronous) TEFC MOTOR is given for the chopper. The motor shaft is made up of S.S. The chopper is consists of 4 blade S.S. impeller. The assembly mounted in the bowl horizontally in which the shaft is integral with the motor. DISCHARGE PORT: The discharge port has vertical downward opening and is mounted horizontally. The pneumatic cylinder is used to operate the opening. MOUNTING: At the bottom, the drive assembly is mounted by the channel frame. The sturdy channel frame is made of M.S. On the top, the bowl is mounted. The platform is provided by the S.S. staircase and railings. The S.S. dimpled plates cover the half of the platform. The area under the bowl is covered with S.S., for the easy and safe movement of the operator. The entire body of the machine is covered with the S.S. covers. CONTROL PANEL: The control panel is situated on the platform. The control panel is provided with for the slow, fast, on, off functions the actuator manual and auto controls timer. Ammeter/ voltmeter for the motors Pressure gauge and indicator light Air regulator and air filter The PLC based control panel can be provided if required. MAIN PANEL: The main panel consists of MCCB, and the wires are given the numbers for the easy operation. SPECIAL FEATURES: The shaft is covered by the air purged shaft seal. In built cleaning system for the shaft seals. To reduce the vibration and for the better transmission, the fanner taper lock pulley is given. The oil seals and sleeves are provided to main bearing housing to prevent the leakages and cross contamination. To prevent the entry of the powder into the impellers and jamming the pressure switch control is provided.   The chopper can not operate directly or independently due to the circuits, with interlock contactors. To regulate the discharge plunger the 3 position solenoid valves are given which helps to open and close at desired levels. The non return valve and water inlet/outlet connections are given with the pneumatic circuit for the washing of the main impeller assembly without dismantling. SAFETY FEATURES: Motor is provided with the locking system to eliminate the accidents. The moving parts are enclosed for the safety. PNEUMATIC SYSTEM:The pneumatic systems require the air pressure of 3 to 5 kgs/sq cm. To operate the discharge valve. The air filter pressure gauge 2 way solenoid valve. The pipes ferules and pneumatic fittings.

Mixer is suitable for mixing polymers and other ingredients. Consist of MS plate vessel, bearing housing, mixing tool, AC motor & other accessories.    Specifications   MIXING VESSEL - Vessel body fabricated from 10mm thickness MS plate, complete vessel is mounted on heavy MS bearing housing on a sturdy frame of fabricated steel structure.   BEARING HOUSING - Bearing housing is fitted directly on the frame below the vessel having main drive shaft with two nos of ball bearings. Resin leakage to bearing is prevented by mechanical rotary shaft seal & gasket.   MIXING TOOL - Four Blades of alloy steel dynamically balanced to avoid vibration and are mounted on the main shaft driven by a motor.   DRIVE - AC motor single speed drives the main shaft.

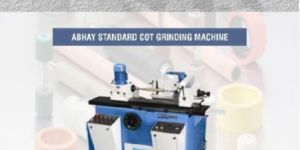

Top roller removed from the Ring frame can be loaded directly into a trolley Full trolley is directly docked into Grinding Machine & rollers are picked up for Ginding Automatically. Automatic cot diameter measuring Automatic sorting Automatic grinding stone dressing Similarly finished rollers are fed into a wating trollery. full Trollery can be undocked % taken to Ring Frame Automatic grinding stone cleaning(optional).

This crankshaft grinding machine is a unique, easy operation, rigid strength, beautiful design, High productivity, less effort of workmen ship, comes with air float head stock and tail stock, centrally lubrication system for table slide and wheel head slide, unique work head belt tensoner for balancing crankshaft, Fast hydraulic movement for wheel head, VFD control work head RPM, head stock and tail stock fitted with tapper roller bearing for continuous accuracy and long lasting life.

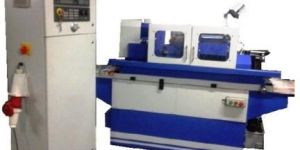

We offer cnc cylindrical grinding machine (heavy duty). Swift - hd cnc cylindrical grinders are new generation 'state-of-art technology' machines with high power and very high material removal rate (mrr). machine can accommodate heavy duty & extra large grinding wheel with width up to 160 mm. these machines are designed to suit heavy grinding load applications and offer a cost effective solution for external grinding.
