Proton Engineers Daskroi, Ahmedabad, Gujarat

Country of Origin : 440V

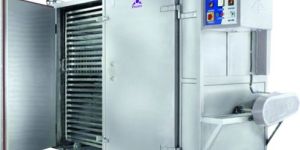

The highly effective-circulating system is provided. Uniform design, controlled temperature, sturdy construction & large working space. All contact parts are SS 316/316L. and non-contact parts are S.S. 304.  Process timer with the digital control panel. Flameproof design and motor with FLP control Panel(optional). Digital temperature controller. Aluminum/polypropylene/Frp/M.S. galvanized trays available on demand. Steam radiator/Steam accessories available on demand in compliance with cGMP.

Proton Engineers is having state of art in house manufacturing facility. To ensure easy availability and uninterrupted performance of the Tablet Press Machine, We always keep sufficient stocks of consumable spares and other critical spares ready for dispatch. We also supply spares suitable for other company tablet press machine

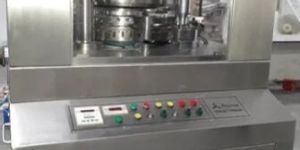

PROTON SINGLE SIDED HIGH SPEED ROTARY TABLET PRESS Avalable In 16D, 20D & 23 B Tooling Next Gen-1   100 KN with Pre-Compressin Force.  Also Available In Combination Tooling Of D, B & BB With Bi-layer Tablet Compression Facility Salient FeaturesIn compliance with cGMP Standard.Available with Two Layer Tablet compression Facility.Maximum Speed of Turret up to 70 RPM.100 KN Main Compression Force.100 KN Pre-compression Force.Turret is driven by centrally fitted oil emerged gear box.Upper Punch penetration is provided as a standard features.Electronic Digital Tablet Counter cum RPM indicator.Interlock Switches to all upper guards.Reverse direction motion protection is provided to avoid accident.AC Variable Frequency drive for Main Motor.The machine is available in Combination. Tooling of D,B & BBOptional FeaturesSS 316 Middle Plate in Turret.Electro Less nickel Plating on Turret.Force Feeder Attachment.Two Layer Tablet Compression Facility.PLC & HMI.

Brand Name : Proton

Material : Stainless Steel

Total Carbohydrate : 1 YEAR

Brand Name : +,Proton

Total Carbohydrate : 1 Year

Country of Origin : 440V

Frequency : 50 HZ

Capacity : 50 KGS TO 5000 KGS

Condition : New

PROTON SINGLE SIDED ROTARY TABLET PRESS (D4 TYPE SQUARE GMP MODEL) 16 STN D, 20 STN D   Salient FeaturesSquare GMP model.Machine is having heavy duty C.I. body & C.I. middle plate.Easy and more thorough cleaning.Excellent and operator friendly material feeding System.Upper guards of transparent acrylic material.Electronic /Digital. Tablet cum RPM counter.Turret of special grade SG Iron casting.Lower punch wiper seal to prevent lower punch jamming.Aluminum turret guards.Higher turret speed 17 to 42 RPM.Phosphorous bronze bush provided inside the turret hole.Imported needle roller bearing provided at the bottom of turret.Cam tracks & pressure rolls made out of alloy steel.Worm is made of phosphorous bronze material.Upper punch penetration system.Effective dust extraction nozzle.Inter lock switches to all guards.Variable speed pulley.One shot lubrication system.Double sided lifting cams.Anti vibration mounts.Overload pressure release system.Reverse direction motion protection is provided to avoid major accident.Available with AC variable drive for main motor (Optional)Pre-Compression arrangement. (Optional)Available with force feeding attachment (Optional)Available with SS 316 middle plate in turret. (Optional)Available with electroless nicked pating on turret.(Optional)

  PROTON SIFTER (VIBRO TYPE) (SIEVING, GRADING & STRAINING MACHINE )   Salient Features   Specially designed hopper. Compact vibratory design for high speed & dust free sieving. Noiseless and maintenance free machine. All contact parts and screen made of SS 304 (SS 316 optionally). Low power consumption compared to reciprocating vibratory system. Easy dismantling and cleaning of contact parts. Machine available with flame proof and double / deck options. All contact parts can be easily washed and / or sterilized. Machine is fitted on castor wheel for easy movability.

Total Carbohydrate : 1 YEAR

Country of Origin : 440 V

Condition : New

Brand Name : Proton

Salient Features   Direction of beaters can be changed by reversible switch. All contact parts can be easily and quickly dismantled and cleaned. Cylindrical screen for higher output-castor wheels provided for mobility. Flameproof electrical components can be provided at extra cost. Beaters and scrapper blades of S.S. 304 quality.

PROTON DUST EXTRACTOR MACHINE (300 CFM)   Salient Features   Used for controlling dust generated during tablet compression, tablet de-dusting, granulation and other processes. Dynamically balanced blowers to minimize noise level. Overcome dust hazards as well as cross contamination at tablet compression. Minimizes mechanical strain, excessive wear of tableting machine resulting in minimum machine break downs and punch wears. Castor wheels are fitted at the bottom of the machine for movability. All inlet manifolds and dust collection tray are of S.S. 304/316. (optionally)

  PROTON DOUBLE SIDED ROTARY TABLET PRESS (GMP MODEL)   Salient FeaturesSquare GMP model.Machine is having heavy duty C.I. body & C.I.middle plate.Easy and more through cleaning.Excellent and operator friendly material feeding system.Lower guards of polished stainless steel.Upper guards of transparent acrylic material.Digital tablet cum RPM counter.Turret of special grade S.G. casting.Aluminum turret guards.Higher turret speed upto 40 RPM.Phosphorous bronze bush provided inside the turret hole.Imported needle roller beaning provided at the bottom of turret.Cam tracks & pressure rolls made out of alloy steel.Worm is made of phosphorous bronze material.Upper punch penetration system.Effective dust extraction nozzles.Interlock to all guards.Variable speed pulley.One shot lubrication system.Double sided lifting cams.Anti vibration mounts.Overload pressure release system.Reverse direction motion protection is provided to avoid major accident.Available with intermittent auto lubrication pump.(optional)Available with force feeding attachment. (optional)Also available with SS 316 middle plate in turret.Also available with electroless nickd plating turret.Machine can be equipped to compress two-layered tables. (optional)Also available with AC variable drive for main motor. (optional)Also available with front control. All parameters can be set outside of machin   q

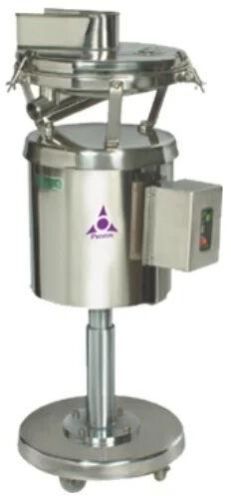

  PROTON DE-BURRING & DE-DUSTING MACHINE   Salient Features   cGMP model. Noiseless & maintenance free unit. All contact parts can be easily washed and / or sterilised. Electric power requirement less than other machines of the kind. No lubrication required. Tablet conveying route is so geometrically designed that tablet burrs can break easily. Telescopic design for height adjustment. Suitable for online application for all types of tablet press machine.

Power : 0.25 HP / 3 Phase / 1440 PM

OSCILATING GRANULATOR (HORIZONTAL MODEL)   Salient Features   Robust and durable. Efficient and dependable. Very compact design. Oscillating stirrers drive. Easy to clean. Entire working zone and stirrer can be dismantled quickly without using spanners. Simple screen holding and tensioning device. Availability of different mesh size of screen. Long life and economic cost of screen. Castor wheel is provided for mobility

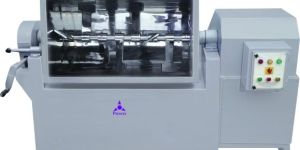

The design is cGMP current Good Manufacturing Practices Compliance. All contact parts AISI 316 & non contact parts AISI 304. Uniform Mixing with paddle blade stirrer. Self-adjusting sealing arrangement to avoid entire black particles. Tilting device for easy unloading and cleaning. The interlocked acrylic covers of the product container, enclosed drive & overloads relay protection. Mass mixer is available in 50 kg to 500 kg capacity.

PROTON PRESS-II HIGH SPEED DOUBLE SIDED ROTARY TABLET PRESS (GMP MODEL)   Salient FeaturesIn compliance with cGMP standard.Higher output suitable for large batch production.Force feeder attachment is a standard features, so higher weight consistency of tablets.Inter locked guards, for safety.Internal helical gear ring and pinion drive for smooth running of machine.Easily removable bottom driven rotary force feeders.ACVF drive for main motor & also ACVF drive for feeder motors.Electromagnetic clutch.All the tablet parameters can be set from outside of the tableting zone.Heavy duty advance design of overload compression spring system, eliminates hydraulic cylinders & accumulator cylinder.No maintenance of hydraulic cylinder & accumulator cylinder.Continuous lubrication pump for turret helical gear & pinion.One shot lubrication pump is provided for lower roll pins.Lower punch seals in turret.3 types of filling cams.Upper punch penetration.Round hopper with butter fly valve.Upper & lower pressure rolls fitted with ball bearings.Separate electrical panel on front of machine,which facilitates easy cleaning of machine.Additionl Optional Features1. Three piece turret with stainless steel 304/316 die-table.2. Powder level monitoring device at feed hoppers.3. Spray lubrication system for effervescent table production.4. Gravity feeing system.5. Bi-layer tablet facility.6. Plc control system with touch screen display.

Driven Type : Electric

Condition : New

Material : Stainless Steel

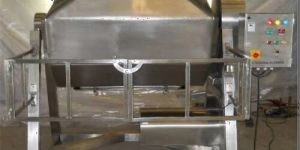

Available in standard cGMP and customized models with SS 304/316/316L contact parts. The conical shape at both ends of double cone blender enables uniform mixing and easy discharge. Manual rotating facility with hand wheel for inching. The same will be provided. Worm reduction gear used for speed reduction. Safety guards provided with a limit switch to achieve maximum safety level. Modern PLC with a manual operating system. Available in batch capacities ranging from 50 KGs to 3000 KGs, as per client's requirements, depend on Bulk Density.

Dies & Punches storage cabinet are made from SS 304 Grade Stainless Steel material. Well design drawers and stands suitable for D Tooling,B Tooling and BB Tooling Dies & Punches. Storage cabinet have separate space for Dies with label space in each drawer with different shape & size.

It is always recommended to Polish Dies & punches after regular interval for long life of Toolings and aesthetic looks of compressed tablets. Dies & Punches polishing minimizes problems like sticking, picking, capping, weight variation & thickness variation. It consists of following items. Double End Polisher Buffing Wheel Flexible Shaft Grinder for Punch tips Micro Polishing Powder Diamond paste in syringe Felt Bobs Emery Rolls Nylon Brush wheel & Brass brush wheel Eye Glass Lapping stick Storage Box

Proton Dies & Punches are made from OHNS(T) and HCHC Material. We also provide Dies & punches made from premium grade Steel S7 for special requirement. We also do Hard Chrome Plating and Chrome Nitriding on Upper Punches as per demand.We Manufacture various shape of Dies & punches as under in D Tooling, B Tooling, BB Tooling, Veterinary Tablet Tooling, Hollow Tablet Tooling and any special type of Tooling as per demand.   Round Shape Capsule Shape Oval Shape Odd Shape

Country of Origin : 220 V

Power : 0.25 HP
