Dust Extractors Dealers in Ahmedabad

Dust Extractor is used with Tablet Press to control the flying dust generated During High Speed Compression of tablets. Dust Extractor is used to minimize lighter dust problem during tabletting process on tabletting Machine. Flying dust is generated during the tablet compression process and also free flowing of granules from hopper to the feed frame by gravity. This flying dust is sucked by the nozzle.

Operation: Pharmaceutical Dust Extractor Machine Is Extremely Useful In Controlling The Dust Generated During The Compression Of Tablets. These Equipments Are Used To Remove Excess Powder From Compressed Tablets. These Dust Extractor Machine Is Not Only Ensure A Dust Free End Product For Use But Also Health And Safety Of People Coming In Contact With Pharmaceutical Processing Machines. Extracting Hazardous Dust At The Point Of Origination And Conveying Them To The Correctly Designed Filtration System Is Necessary To Protect Both Personnel As Well As The Plant. These Dust Extractor Machine Successfully Capture Dust With The Air Stream And Convey It To The Dust Collector. Salient Features: Dust Extractor Machine Is Provided With Stainless Steel 304/ 316 Contact Parts In This Dust Extractor Machine, Blower Fan Is Dynamically Balanced And The Unit Is With Castor Wheels. Overcome Dust Hazards As Well As Cross Contamination At Tablet Compression. Minimizes Mechanical Strain, Excessive Wear Of Tableting Machine-resulting In Minimum Machine Break-downs And Punch Wears. All Inlet Manifolds And Dust Collection Tray Are Of S.S. Four Inlet Manifolds Facilitate To Connect Tablet Machine And The Dedusting Units. Application Of Dust Extractor: Pharmaceutical Medical Educational Facilities

Model : 0.5 H.P. x 50 H.P., Contraction : MS + MS SS Coating + SS + Zeketed, Ideal For : Pigment Colors - Minerals & Ores - Chemicals Technical Products Dyestuffs - Fertilizer - Insecticides - Pesticide.

alient Features   Minimizes mechanical strain, excessive wear of Tableting machine-resulting in minimum machine break-downs and punch wears All contact parts SS304 or SS316 quality. Easy to connect all tablet press and De-Dusting units. Dynamically balanced blower for vibration free smooth running. Castor wheels provided for Easy mobility.   Flame proof electrical can be provided as optional.   Food grade 5 micron filter.

Technical Specification     Modal : 150 300   Suction Capacity : 150CFM (250mt/hr) 300CFM (500mt/hr)   Filteration Capacity : 0.84m 1.34m   Storage Capacity   25lit 40lit   Electric Motor   1HP,3PH,AC 1.5HP,3PH,AC

Multi Mill Machine, Tablet Coating Machine, Rotary Tablet Machin

We have a skilled team of quality experts that stringently checks each and every product at different stages. Based in Allahabad(India), our organization is involved for years in supplying the finest grade of Dust Extractor in the industry.

Dust Extractor (Dust Collector). It will be fixed on Tablet Compression Machine & it will be collecting exaust dust from tablet manufacturing zone. Available in 150 CFM & 300 CFM with MOC : SS 316.

Pharmaceutical Dust Extractor Machine Is Extremely Useful In Controlling The Dust Generated During The Compression Of Tablets. These Equipments Are Used To Remove Excess Powder From Compressed Tablets. These Dust Extractor Machine Is Not Only Ensure A Dust Free End Product For Use But Also Health And Safety Of People Coming In Contact With Pharmaceutical Processing Machines. Extracting Hazardous Dust At The Point Of Origination And Conveying Them To The Correctly Designed Filtration System Is Necessary To Protect Both Personnel As Well As The Plant. These Dust Extractor Machine Successfully Capture Dust With The Air Stream And Convey It To The Dust Collector. SALIENT FEATURES:- Dust Extractor Machine Is Provided With Stainless Steel 304/ 316 Contact Parts  In This Dust Extractor Machine, Blower Fan Is Dynamically Balanced And The Unit Is With Castor Wheels.  Overcome Dust Hazards As Well As Cross Contamination At Tablet Compression.  Minimizes Mechanical Strain, Excessive Wear Of Tableting Machine-resulting In Minimum Machine Break-downs And Punch Wears.  All Inlet Manifolds And Dust Collection Tray Are Of S.S.  Four Inlet Manifolds Facilitate To Connect Tablet Machine And The Dedusting Units. Application Of Dust Extractor:- Pharmaceutical  Medical  Educational Facilities   Our Machines Are Also Known As Tablet Dies Punches, Tabletting Machine, Pharmaceutical Machinery, Tablet Manufacturing Machinery, Tablet Making Machinery, Tablet Pharmaceutical Machines Supplier, Tablet Making Machines, Tablet Section, Single Punch Tablet Punching Machine, Tablet Compression Machine, Tableting, Tablet Section Machineries, Tablet Compression Machine, Tablet Pharmaceutical Machinery, Manufacturer Tablet Dies And Punches, Tablet Press, Tablet Dies, Manufacturer And Exporter Tablet Press, Tablet Press Compression.

Dust laden air enters the collector through an expansion chamber, where heavy dust particles are deposited by gravity. The fine dust passes upwards through single large orifice and is finally collected by filter. There is an effective snap action shaking mechanism for shaking filter and dust is deposited into drawer type tray. There is a large door for changing filter bag and cleaning of the machine. SALIENT FEATURES : Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Easy to connect all types of Tablet press and De-Duster. Dynamically balanced blower. Easy mobility. Also we designed special type dust collector and extractor as per customer requirement.

Dust Extractor Flying Dust Control System for Tablet Press Application & Process : The Dust Extractor unit is used for controlling dust in process of Tabletting and packing. The unit strongly recommends the use of dust control equipment with all Tablet press and De-duster. Dust laden air enters the collector through an expansion chamber, where heavy dust particles are deposited by gravity. The fine dust passes upwards through single large orifice and is finally collected by filter. There is an effective snap action shaking mechanism for shaking filter and dust is deposited into drawer type tray. There is a large door for changing filter bag and cleaning of the machine. Salient Features : Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Easy to connect all types of Tablet press and De-Duster. Dynamically balanced blower. Easy mobility. Also we designed special type dust collector and extractor as per customer requirement.

We are offering dust extractor gmp model ■ provided with stainless steel ss 304 contact parts. ■ blower fan is dynamically balanced and the unit is with castor wheels. ■ overcome dust hazards as well as cross contamination at tablet compression machine. ■ minimize mechanical strain, excessive wear of tableting machine-resulting in minimum machine break-downs and punch wears. ■ all inlet manifolds and dust collection tray are of s.s. ■ four inlet manifolds facilitate to connect tablet press machine and the de-dusting units.

We offer dust extractor. Salient futures : provided with stainless steel dust collection tray and inlet connectors.(this can be provided in m.s also for cost reduction) blower fan is dynamically balanced and the unit is with castor wheels. Technical specification : 1. Suction capacity : 150 cfm (250m³hour)at 70mm w.g. 2. Filtration area : 9 sq.ft.(0.8m²) 3. Dust storage cap. : ¾ cu.ft.(0.21m³) 4. Intel connections : 5 nos. Of dia 1½” (38.1mm) 5. Electrical : motor of 1 h.p, 2800 rpm,440 v, 50 cs, 3 ph. 6. Dimensions : 28 “ x 19” x 32” (ht) 7. Net weight (approx) : 80 kgs.

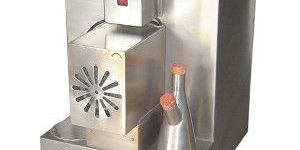

SDE-DUST EXTRACTOR (DUST COLECTOR) This Equipment is used for controlling dust generated during tablet compression, tablet de-dusting, granulation and other processes to avoids product cross contamination. Minimizes mechanical strain & excessive wear of tableting machine resulting in minimum machine break downs and punch wears. Stainless steel blower fan is dynamically balanced. Suction Capacity : 150 CFM ±10% Dust Storage Capacity (Ltr) : 20

The dust extractor machine is configured to have a control over the procedures of tableting and packing. It is highly appreciated for the usage of dust control equipments with the aid of de-duster and tablet press. Process of Operating An expansion chamber is available through which the dust enters into the collector and eventually heavy dust particles get settled by gravity. Thereby the finely granulated dust goes through a single big orifice and gets accumulated at the filter. In order of the deposition of dust into the drawer type tray, an efficient snap action mechanism is used. Lastly, a huge bag stands available for change of filter bag and clean-age of machine. Thus, a complete comprehensive solution for tableting and packing, the pharma dust extractor ensures effective processing all over. Characteristic Features The pharma dust extractor is a  CGMP model that comes over dust hazards and cross contamination at the tableting m/c High powered and balanced air blowing fan Comes with castor wheels for flexible and easier movement Contact and non contact components made of AISI 316 and AISI 304 respectively In order to connect tableting m/c and de dusting m/c, there are five inlet manifolds available All kinds of tablet press and de duster available for flexible connection Comes equipped with castor wheel for smooth movement Stainless steel furnished inlet manifold and dust collection tray Dust extraction systems with convenient mobility Specially made dust collector and extractor in accordance to the customer’s needs

We are offering dust extractor. Dust extractor is used with tablet press to control the flying dust generated during high speed compression of tablets. Dust extractor is used to minimize lighter dust problem during tabletting process on tabletting machine. Flying dust is generated during the tablet compression process and also free flowing of granules from hopper to the feed frame by gravity. This flying dust is sucked by the nozzle.

Being an industry leader, we are engaged in offering a wide range of Dust Extractor Machine. These products are made from best grade material using sophisticated technology. These are broadly used in various industries for effective dust collection. In line with clients specific requirements across the country, we are engaged in manufacturing and supplying an excellent gamut of Dust Extractor Machine.   Uses :- Used for collecting powder from the chamber of capsule polishing machine and also used for cleaning operations on automatic capsule filling machine. Features :- Hassle free performance Smooth operation Easy maintenance
