Grinding Machine Dealers in Jamnagar

This is a special purpose 12 Axes CNC insert grinding machine designed and manufactured to grind FPS inserts on all eight working sides; including both up and down sides. The loading and unloading of the inserts with a magazine is done automatically with pneumatics so designed to place the inserts for grinding with a special fork and then place it back on the tray table after grinding. The grinding of carbide inserts is done with specially designed two motorized grinding spindles. The CNC program designed for grinding offers a complete automatic cycle from auto loading, grinding, indexing and unloading of the inserts. The dressing is also programmed into the CNC for auto dressing cycles of diamond wheels. Machine consists of 12 Axes CNC high end controller, coolant filtration unit, spindle chiller unit, hydraulic power pack, mist collector etc The machine is centrally controlled by PLC giving individual commands to each unit to work independently.

We are well-established organization successfully operating from Jamnagar(India); we are a reliable name in the sphere. We own a well-constructed storage space that helps in keeping the batch under secured conditions and away from various spoiling factors such as sunlight, water, moisture, dust, rain and others.

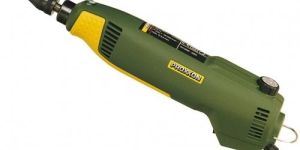

Precision drill/grinder FBS 240/E The maximum speed of 20,000rpm is continuously variable down to 5,000rpm. The full wave electronic speed control results in virtually constant torque, even at lower speeds, in turn facilitating micro drilling, cleaning and polishing. The spindle runs in a precision ball bearing and is lifted with a lock button. The 20mm collar fits MICROMOT drill stands and vices. The machine is fitted with a special, balanced, low noise DC motor with high life expectancy. Stable housing of glass-fibre reinforced POLYAMIDE with soft components in the finger grip area. Complete with 43 quality inserts in a sturdy plastic case. The heart of our MICROMOT precision tools for 220 - 240V: the direct current (DC) special motor. Technical data:5,000 - 20,000rpm. Maximum power consumption 100W, 220 - 240V. Length 200mm. Weight 450g. Insulated according to class 2 requirements. Keyless chuck with 0.3 - 3.2mm capacity.

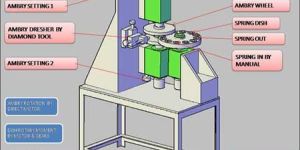

We are identified as one of the stupendous Spring Grinding Machines manufacturers & Exporters from India. The Spring Grinding Machines, offered by us, are widely demanded in the market due to the unmatched quality and unsurpassable performance. Advantages : Highly durableRobust constructionEasy operationHigh productivityLow maintenance cost Specifications : Ambry rotation by direct motorDish rotary moment by motor & gearsMotor: 0.5 HP (1Nos)Motor: 1.5 HP (2 Nos)Coolant Pump: 0.25 HP (1 Nos)

cutter grinders-, Cutter Grinder Machine, Horizontal Boring Machine

Cutter Grinder Machine, Cutter Grinder, Milling Machine, Tool Grinde

CNC Grinding Machine, CNC Machines, Grinding Machin

Mandrel Grinding Machine, Mangoes, Pipe Beveling Machine, SPM Machine

Grinding Machine, Bio Coal Machine, Briquetting Machin

Grinding Machine, Drilling Machine, Hand Tools, Mixer Grinder, Power Tool
