Grinding Machine Dealers in Secunderabad

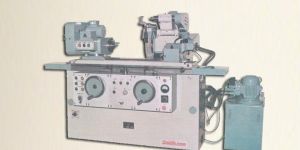

Universal Grinding Machine

Get Price Quote

• Maximum Grinding Length500/600mm
• Maximum Height of Centres130 mm
• Maximum Swing over bed259 mm
• M aximum grinding diameter100 mm
• Table feedHydraulic, infinitely variable
• Range of the table Feed per minute0.05/1-5 m/min
• Maximum table swivel.7 °+ 3° = 10°
• Hydraulic power motor.75 Kw
• Workhead Swivel on either side90° towards wheelhead & 30° away from wheelhead for all models
• Workspindle speeds4
• Workspindle speeds range65, 140, 205 & 300 RPM
• Workhead motor0.37 Kw.
• Taper in workspindleNo. 3 Morse
• Taper in tailspindleNo. 3 Morse
• To and fro swivel of wheelhead at base60° towards workhead & 45° towards tailstock for all models
• Transverse movement of wheelhead max125 mm
• Size of grinding wheel.354 x 40 x 127 mm
• Min. dia of worn out wheel.205 mm
• RPM of grinding wheel.1750/2000
• Wheelhead motor.2.2Kw.
• Max. & Min. dia of hole for grinding.50 to 18 mm
• Min. & Max. dia of lnternal grinding wheel.12 to 40 mm
• Motor for internal attachment..75 Kw.
• coolant pump motor.0.07 Kw
• Approximate gross weight with packing.2400/2500 Kg
• Body and all slides are made of high grade cast iron, duly seasoned, rigid & Strong enough to prevent dislortion & wear. Guide ways are Precision hand scraped/ground to match the corresponding surface of slides etc. Table slide is hydraulically operated and the cross-slide is hydromecanically operated. Quick hydraulic retraction and forward movement of cross-slide is provided. The cut is taken by hand to avoid any damage to work piece and grinding wheel. Work head is swivelling type to grind angular as well as conical jobs. The work spindle has been designed to suit live centre as well as dead centre grining The machine is fully installed with electric motors, switch gears and wiring, normally arranged to suit the supply ol 4O01M0V.3 Phase AC, 50

...more

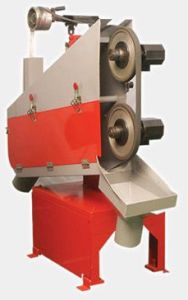

Belt Grinding Machine

Get Price Quote

• Voltage110V, 220V
• Power500W, 1000W, 1500W
• Dimensions50x50x50 Cm
• Weight50-100 Kg
• Packaging TypeCardboard Box
• Speed500-3000 RPM
• We offer a high-quality Belt Grinding Machine designed for precision and efficiency. Operating at 110V with a powerful 500W motor, this machine delivers consistent performance. With dimensions of 50x50x50 cm and a weight range of 50-100 kg, it is sturdy and reliable. The variable speed of 500-3000 RPM allows for versatile grinding applications. Packaged in a secure cardboard box, this machine is ideal for manufacturers seeking a reliable and efficient grinding solution.

...more

Tile Grinding Machine

Get Price Quote

• Type of Grinding MachineSurface
• Model Name/Number6-100
• Grinding MaterialMetal
• Item CodePT0062

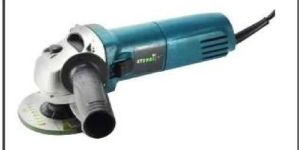

Angle Grinder Machine

Get Price Quote

• Brand NameDewalt
• Model Name/NumberDWE46155
• Disc Diameter5 inch
• Spindle Thread5/8 IN. - 11
• No Load Speed11000 RPM

...more

Grinding Machine

Get Price Quote

• Number Of FlowerGrinding Machine
• CertificationCE Certified, ISO 9001:2008
• SpecialitiesGrinding
• Machine Weight100-200kg, 200-300kg, 300-400kg, 400-500kg, 500-600kg, 600-700kg, 700-800kg, 800-900kg, 900-1000kg
• Country of Origin110V, 220V, 380V
• ConditionNew, Used
• Operating TypeAutomatic, Fully Automatic, Manual, Semi Automatic
• Power1-3kw, 3-6kw, 6-9kw, 9-12kw
• Driven TypeElectric, Hydraulic, Mechanical

...more

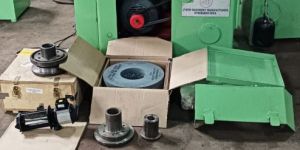

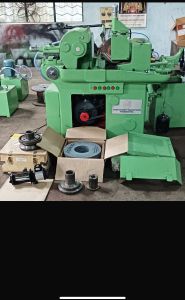

Centerless Grinding Machinery

900,000 - 1,000,000 / Qty

Coffee Grinding Machines

Get Price Quote

...more

Grinding Equipment

Get Price Quote

CNC Surface Grinder

Get Price Quote

CNC Grinding Machines

Get Price Quote

Surface Grinders

Get Price Quote

Bench Grinder Machine

Get Price Quote

Grinding Machine

Get Price Quote

Surface Grinder

Get Price Quote

Grinding Machine

Get Price Quote

Industrial Grinding Machines

Get Price Quote

Grinding Machine

Get Price Quote

Grinding Machine

Get Price Quote
