Pickling Tank Dealers in Ahmedabad

Our Coil picking tanks are used for wire coil pickling, strip coil picking process. We built our tank from DVS German Welding & Design Technology with “fold bend” Construction. We select specific type of polypropylene material as per industries application which is Suitable for continuous batch pickling operation.  All the necessary accessories for easy installation and operation of  Batch pickling tank can be provided including hood, suction Duct, Tank Cover  and fume scrubber with centrifugal exhaust fan, stack or chimney, ducting’s and thermoplastic recirculation pump for scrubber with piping. This is always picked to be the best in class for Impact Resistance, Chemical Resistance and high temperature resistance material. Our Coil Pickling tanks are with ready to install features and also it is equipped with desired accessories.

We are Offering Pickling Tanks in Pp / Pvc / Hdpf / Frp with Duel Lamination planning and Construction of Tank System with Fume Exhaust System. robust Design of Tank Made Out of Industrial Thermoplastic. environment Friendly Fume Extraction System, Avoiding Corrosion of Surrounding Steel Construction, Cranes and Roof Structure. plastic Tanks Available in Flat Pack Modules (reduced Volume). heating & Circulation System Available. tank Made from Industrial Thermoplastic and Welded with state-of-the-art Hot Gas Extrusion Welding Process and Stress Relieved. modules Assembled and Welded At Site for Easy Transportation. 100 % Leak Proof Joint. fume Free Work Place. corrosion Free Atmosphere. tanks are Available Up to 35 Meter Length. plastic Tanks Meet Stringent Environment Conditions and Work to the Cycle Principle

Our tanks function without any breakdown and continue to operate effectively, irrespective of the server physical conditions. We also custom design and fabricate thermoplastic process equipment to meet the specific needs of products like tanks for pickling, digressing, rinsing, flux passivation, pre post treatment, plating cleaning etc.

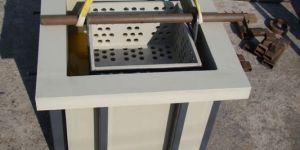

We are offering degreasing tank for fastener pickling with thorough understanding of the relevant industry, we are offering a wide range of degreasing tank. This tank is mainly used for degreasing and is manufactured using best quality raw material and advanced technology. In tune with different needs of our copious clients, we customize the entire range in different sizes and shapes. Our offered range has gained exceptional value amongst our clients for its defined features. Features: â�¢ precisely designed â�¢ easy installation â�¢ dimensional accuracy technical specification: above all tanks are made out from polypropylene non sticky material corrosion free, long lasting, design on rita (roechling integreted german tank building assitant) software. Weld on german wegner welding machine according to dvs norms therefore leak proof and long lasting. Advantage â�¢ enviro friendly â�¢ easy to move â�¢ corrosion free â�¢ long lasting corrotech expertise: â�¢ custom design according size & weight. Â�¢ fold bending â�¢ butt fusion welding technology â�¢ design on tank design software rita 2.5

Chemical Equipment Manufacturers,Manufacturer of chemical Equipments,Chemical Storage Tanks Manufacturers,Aluminium Tank manufacturers,Heat Exchanger Manufacturer in Ahmedabad,Limpet coil vessel Manufacturers,Chemical Equipment Suppliers

We manufacture Pickling Tank for Galvanizing, Pickling tanks for MS & SS pipes tubes & wires. We develop & design international Quality of Pickling tanks. These tanks are also Design by RITA DVS 2.4 SOFTWARE, GERMANY. Each tank is fabricated by means of imported welding gun. These tanks will not leak, rust chip or corrode and are durable enough to withstand extreme service environments and harsh outdoor weather.We also provide Fumes Extraction system widely used in Pickling plants & Galvanizing plants. We manufacture Pickling Tanks using both Imported & Indian material as per client requirement & specification.Our Pickling tanks are high in performance & practically maintenance free and had life span of decade irrespective of severe conditions.

We are a dynamically developing company that has evolved itself as a prime manufacturer and exporter of superior range of multifarious products such as pickling tank for galvanizing plant, pickling plants, pickling tanks and anti-corrosive equipment made from various industrial thermoplastics. We have been constantly innovating and improvising on quality of products to confer to the industry norms and standards.

Corrotech’s range of pretreatment tanks is highly reliable and modular, providing premium quality and robust structure. Based on the industry requirement, we offer pretreatment tanks of specific sizes for degreasing, pickling, rinsing and fluxing of black steel.

We are a unique entity in the industry, actively committed towards manufacturing a qualitative range of PP Pickling Tank.

Pickling Tank, Hot Dip Galvanizing Plant, Flux Heating Syste

  Code-No Capacity(In Litres) Dimensions (CMS) Length Width Height NET 42-01 420 183 62 41 NET 57-01 570 244 62 41 NET 75-01 750 244 75 41 NET 70-01 700 305 62 41 NET 95-01 950 305 75 41 NET 85-01 850 366 62 41 NET 110-01 1100 366 75 41 NET 150-01 1500 366 75 60 NET 55-01 550 390 38 38 NET 90-01 900 510 38 38 NET 202-51 2025 300 150 41

Pickling Tanks, FiberGlass Products, Pickling Plant, Vessel

Pickling Tank for Strip Galvanizing Plant, Inline Wire Pickling Tan

Pickling Tanks, Fume Exhaust System

HDPE Pickling Tank, Fibre Acid Transport Tank, Emitting Pip

We deals in supplying of wide range of PP Pickling Tanks.

Thermoplastic Pickling Tanks, Chemical Process Tank, 7 Tank Treatment Plan
