print Roto Ctm, Ahmedabad, Gujarat

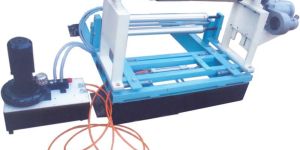

We are offering web aligner. aligne roll this units  are used to automatically guide all type of flexible materials of any width, at any speed, under any load. Inherent capabilities of this units assure stable operation at all correcting the web at any speed and loads.

We are offering stretch wrapping machine. stretch film wrap in the roll mechanical brake for set tention reduction gearbox with motor drive for turn table roll assembly 700mm rubber fillet covered roll with mechanical synchronizes drive pre settable counter for rotation of stretch film,starter for ac motor protection against moisture and dust prevent telescoping of rolls save packaging cost, labour and time better identifications of wrapped products give stability to the product economical way of packaging

we are offering slitter rewinder. photocell line guide system touch screen system for easy operating differencial ball shafts at rewinders laser light system at rewinder for easy to loading paper core tension setting range between 20n to 300n layon roller operated pneumatically a.c. Drives for main drive & rewind calculative designed, strong & heavy duty mild steel structure. 4 drive system for senchornized unwinder, main drive & both rewinders. minimum wastage & minimum dependency on labour due to increased automation and easy operating system. cork coated, dynamically balanced, specially desingned low friction idler rollers made of alluminium alloy, mounted on low friction bearing. the system consist of ac digital drive, load cell for feed back, ultrasomic sensor etc. each rewinder equipped with pneumaticaaly loaded lay on assembly with contact pressure control. shaftless system for unwinder ( optional)

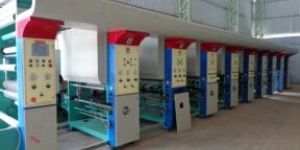

We are offering rotogravure printing machine. printing station up to 8 color max web width 1500 mm max print width 1400 mm print repeat range 320-1100mm max. Unwinder roll diameter 1000 mm max. Rewinder roll diameter 800mm max. Roll weight 500 kg. Max. Operating speed up to 150 to 200 mtrsmin. Unwinder tension control by means of (digital control a.c motor) rewinder tension control by means of (digital control a.c motor) power requirement as per machine size heating system hot air generator registration longitudinal motorised ball screw lateral manual tension control feedback load cell dryer closed type single side drying oven printing materials ldpe,hdpe,lldpe,ppcp,hmhdpe,pet film(10micron),foil(35 micron),paper(up to 50 gsm),polester(10-20 micron),bopp,pvc,shrink,laminates etc guiding system line guide system rubber roll system pneumatic operate doctor blade system pneumatic operate dryer box system pneumatic operate

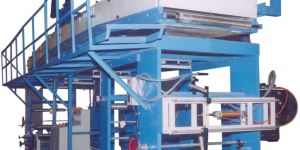

We are offering lamination machine. web width 400,600,800,1000,1200,1400,1600mm unwind rewind diameter 600 – 1000mm machine speed 130 to 150mm 5 drive system for coating unit, laminating unit, both unwinder & rewinder plate thickness 45mm machine max. Speed 150 to 180 meters drying tunnel length 35 feet hot air temp 70 – 120 nip operated pneumatically heating system hot air generator (diesel fire or wood fire) fully pneumatically lifting tunnels and impressions rollers, doctor blade, lay and rolls. Comfortable exhaust system for solvent fumes. Exhaust system 3 hp material polyesterpolybopp etc. Web aliners (03 nos.) for both unwinders & 01 sra drives a.c. Drives motors a.c. Motors drying chamber operated pneumatically digital temp. Indicator

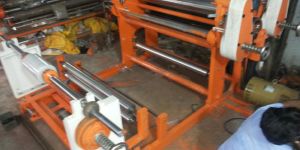

we are offering heavy type drum slitter. web width 600mm to 2500 mm unwind dia up to 1250mm rewind dia up to 1250 mm rewinding type duplex center cum surface unwindrewind core 3” dia. i.d min. slitting width 100 mm machine speed 100 to 130 mtrsmin. roll weight 500 kg guiding system pneumo hydraulic web aligner unwind tension control by means of mechanical brake rewind tension control by means of mechanical clutch drive mechanizom chain wheel arrangement drive a.c drive rubber roll system both rubber roll operate mechanically blower section 1 h.p a.c motor material to be slitt stretch film,plain film,printed film,paper,label stock,laminates,metallic film,allu. foil etc

web width 600mm to 2500 mm unwind dia up to 800 mm rewind dia up to 500mm we are offering drum type slitter rewinder. rewinding type duplex center cum surface unwind rewind core 3” dia. i.d min. slitting width 50 mm machine speed 100mtrsmin. roll weight 500 kg guiding system pneumo hydraulic web aligner unwind tension control by means of mechanical brake rewind tension control by means of mechanical clutch drive mechanizom chain wheel arrangement drive d.c drive rubber roll system both rubber roll operate mechanically blower section 1 h.p a.c motor material to be slitt stretch film,plain film,printed film,paper,label stock,laminates,metallic film,allu. foil etc. salient features : most versatile, model providing combination of duplex center cum surface rewind system constently flawless slit rolls by providing center driver drum to maintain. fixed minimum distance between slitting and rewind point constant line speed causes constant tension rolls two rewinding shafts carried on swinging arms are center driven through adjustable clutch counter balance system to adjust the pressure between rewind reels and center drum suitable for off caliper slippery stretchy material optional attachments: auto tensio control for unwind unit web edge guide system (hydraulic digital ultra sonic) pneumatic system for arm cluch brake nip air shaft for unwind station air shaft for rewinder shaft four motor synchronised drive timing pulley&belt arrangement

We are offering core cutter. cut core as per your requirement

We are offering bopp tape slitter. technical specification: turret rewinding system ( i.e. Four no. Of rewinding shaft ) quick change over system. auto stop and speedometer-counter meter. web width : 500 to 1350 mm minaimum slit width 20 mm trimming & rewinding facility.

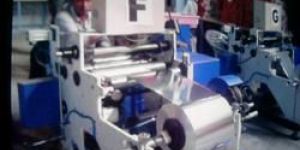

we are offering aluminium foil rewinding machine. as per customer requirement size and cutting. web aligner is aligner.

We are providing rotogravure printing service. As per customer requirement
