PRISM PHARMA MACHINERY Vatva, Ahmedabad, Gujarat

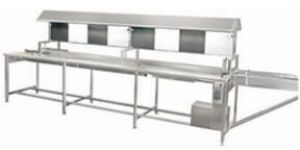

Visual Bottle Inspection Machine is used for visual Inspection of filled bottles to checked for non required foreign particles & leak checking and to ensures maintain quality standard of products as per requirements in Pharmaceuticals & Foods Industries. Inspection table is equipment consisting of a three-track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. Inspection table have stainless steel structure with moving S.S. slat chain. Structure made out of S. S. square pipe & supported on adjustable bolts. The central conveyor belt brings the bottle from the capping machine conveyor. These bottles are automatically bifurcated on the two adjoining conveyor belts & further on the side tables for operators sitting on either side of the table. The operators in turn pick up the bottles & visually inspect the bottles in the alternate white & black background to check for any partials in the liquid filled, sealed & breakage of bottle. After inspection, good bottles are placed in the central track, which is transfer for labeling.

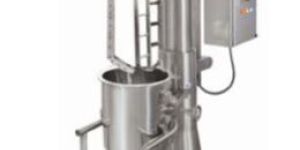

The NewLABOplanetary machine is used to mix Liquid to Liquid, Liquid to solid, and solid to solid are in Pharmaceutical Powder, Granules, Ointment, Cream, Galantine, Cosmetics, Food, Confectionary, Chemical and Soaps. It has a homogeneous mixing action and planetary motion (Single or Double Planetary) of the beater enables faster and better mixing of material. The planetary mixer is an intensive mixing, dispersing, kneading and degassing viscous, heat sensitive and above all, cohesive pastes, dough and moist, crumbly masses, such as sealing compounds, adhesives, printing inks, dental plastics, plastisols, condensed soups, battery compounds, cream cracker dough, etc

Capacity : size 5 liter to 25 Liter

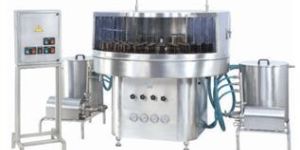

The Rotary Bottle washing Machine is compact and highly efficient machine with elegant look. This multifunctional multi featured machine meets the GMP requirements of washing for glass and plastic bottles. The machine operates on the Rotary principle with "GENEVA" mechanism and requires manual loading and unloading of bottles. The bottles are loaded on rotating platform and are cleaned in series of operations. Specially designed bottle holders provided to hold bottles with varying neck diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings and sequence of various washing media to suit specific requirement.

Automatic Blister Packing Machines are ideal tools for the pharmaceutical industry for the packing of Oral tablets, capsules, hard and soft gelatin and ampoules. AII machines are manufactured under stringent quality control process to ensure years of trouble free production. Special design of machine ensures total synchronization of timings between sealing of Aluminum foil and PVC base web. The machine works on the flat forming & rotary sealing principle for delivering higher outputs. PVC base film web is drawn off from a reel and fed into the blister forming unit where blisters are continuously formed. The web is then led to the sealing unit over a guide track. Over the guide track, the product is filled into the blisters by suitable automatic filling unit before the web enters the sealing unit Aluminum foil is drawn off from a separate reel and is fed to the sealing unit where it is sealed with the base web, thus enclosing the product hermetically. The filled and sealed web is then fed by an indexing mechanism into the pack punch unit where the packs are separated from the web. The web trim is sheared off to allow collection. The blister pack may either be collected in bins or may be conveyed over a belt for further handling. The machine could be linked to a cartoner.

Planetary mixer has great function of blending, shearing and dispersing, which suits well in dispersing and blending of materials in solid to solid, solid to liquid, liquid to liquid. Planetary mixer is widely used in chemical, food processing, drug producing, construction materials and light industries. Meanwhile, it also fits for cosmetic, ink, chocolate, sealing adhesive, adhesive, ointment, paste materials etc.

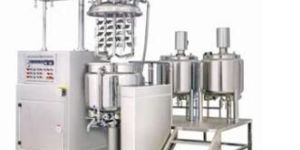

Semi solid manufacturing Plants are ideal tools for the pharmaceutical & cosmetic industries for the production of Ointment, Cream, Lotion, Gel, Tooth Paste & emulsions & homogenization. Fully automatic Ointment, Cream, Tooth Paste , Gel manufacturing plant consisting of Pre determined water phase vessel. Pre determined oil, wax, petroleum jelly phase vessel. Vacuum Homogenizer Mixer vessel. Vacuum Pump, Storage vessel, Interconnecting pipeline. Transfer Pumps (Bump Pump, Lobe Pump & Metering pumps), Integrated automatic control panel.

Vacuum Homogenizer Mixer is applicable for a wide variety of viscosity product, i.e. emulsions and semisolid. It integrates with pressure, heating, cooling and vacuum for Agitating, Mixing, Emulgating, Dispergating, Suspending, Homogenizing & agglomeration functions into single machine Agitator Mixer Two low speed agitator; Counter rotating mixer with outer anchor stirrer with self pressure Teflon scrappers and contrs rotating inner paddle blade. Ultra Mixer is a combination of counter – rotating inner paddle agitator and outer anchor agitator, generating a disturbance in the normally circular flow pattern and dampens vortex formation. The blades of paddles are pitched to promote top – to bottom flow. In addition, self adjustable scrapers are utilized to prevent the build-up of a stagnant film between the agitator and the vessel, and assure efficient heat transfer to product during heating and cooling steps.

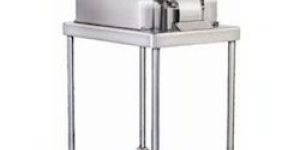

Comminuting mill is used for the down sizing, milling, pulverization and dispersion of wet and dry products in pharmaceutical, chemical, food, cosmetics, fertilizers industry etc.The product is poured from the top through in feed hopper and material falls on the rotor blades beater assembly for milling or pulverization. Due to the knife edges mounted on rotor, the downsizing of particle takes place and through sieve material gets pushed outward from the bottom opening. Knife edges can be removed for cleaning very easily.

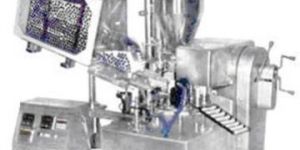

Tube Filling Machine is an used for fills of ointment, cream, tooth paste, gel and semi solid materials in aluminum or in plastic tube and sealing of the tube. Application of the machine is in pharmaceuticals, cosmetics, foods, adhesive, paint, chemicals and others industries. Tube filling and sealing machine is designed with filling and sealing process to be completely untouched and single machine process. The unit comes in various batch capabilities to handle a large range of tube sizes and shape by change of parts. Tube filling machine is equipped with high accuracy filling systems, provides clean and accurate filling at optimum speed providing high quality and product. Automatic tube filling machines have automatic tube in feed in holding cups and then fills, seals and ejected to discharge hopper. Filling volume can be easily adjustable as per desire weight and there are sealing option for aluminum tube by folding & crimping device and PVC tube seal by thermo heat sealing device. After sealing of tube then coding can be do on sealing area by coding device. Before filling tubes are to be clean by compressed air for removes of dust.

PRISM has wide range of high precision automatic Blister Packing Machines. AII machines are manufactured under stringent quality control process to ensure years of trouble free production. Special design of machine ensures total synchronization of timings between sealing of ALU -ALU & ALU- PVC base web. Salient Features : Packing Speed : 40 Cyclemin for Thermo-Forming, 35 Cyclemin for Cold-Forming, Feeding System : Auto feeding system by PLC Logic with pneumatic Combination. Servo Drive Indexing : Servo web indexing by rigid PLC Logic. Operator Interface : User friendly MMI touch screen (Man machine interface), Pneumatic Operations : Festo make for fast response, oil free, minimum wear and tear, easy maintenance and universal Availability of bought outs.
