Pump Control Panels Dealers in Ahmedabad

• Brand Name: ARIHANT
• Brand Name: ARIHANT
• Material: Panel
• Body Material: Mild Steel
• Color: White
• Power Source: Electric
• Voltage: 220V
• Autoamatic Grade: Manual
• Type: Submersible Pump Control Panels
• Phase: Single Phase

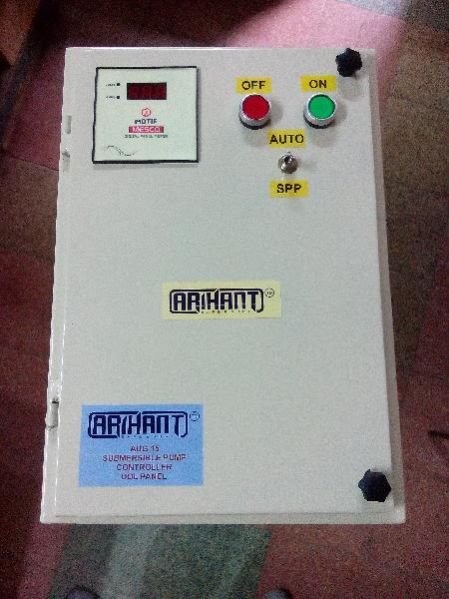

We offer submersible pump control panel. Specification 1. metal box: crc sheet with powder coated. 2. contractor: schneider, bch (reputed). 3. mcbmccb: schneider, bch, technic, c&s, (reputed). 4. digital ammeter (0 3050150450800 amps) r-y-b: kaizen. 5. digital voltmeter (0 - 500 volt) ry-yb-br: kaizen. 6. over load protection (as per motor rating) variable with 0 to 60 sec time. 7. under load protection (as per motor rating) variable with 0 to 60 sec time. 8. over voltage protection (300 - 500 volt) variable with 0 to 60 sec time. 9. under voltage protection (300 - 500 volt) variable with 0 to 60 sec time. 10. single phase preventer with current and voltage sensing. 11. switch - auto-manual. 12. power and control wiring: cupper. 13. out put terminals. 14. indicating lamp: r-y-b (22.5 sq.mm led type). 15. push button: onoff (22.5 sq.mm).

• Application: Fire Pump House Control Panel
• Power: 200KW
• Country of Origin: India
• Operating Voltage: 415 volt 4 wire 50 Hz
• Display Type: Digital Type
• Dimension: 1000 X 1200 X 500
• Type of Control Panel: Automatic
• Brand Name: Varsha
• Mount Type: Floor Mounting
• Colour: Red

• Size: Multisizes
• Color: Grey
• Voltage: 110V, 220V, 380V, 440V
• Power: ANY
• Power Source: Battery, Electric, Solar
• Phase: Double Phase, Single Phase, Three Phase
• Warrenty: 1 Year
• Autoamatic Grade: Automatic, Fully Automatic, Manual, Semi Automatic
• Pressure: HIGH TO LOW
• Usage/Application: Pressure Booster System / Dewatering systerm / Multi tank system
• Motor: Upto 100HP
• Switchgear: Original Schneider or L&T
• Cascading: 1 working + 1 standby
• Parameter Setting: Digital by keypad
• Pump Protection: High / Low voltage,Over / Under current,Dry run,phase failure,phase unbalance etc.

FEATURES :Protection against Over LoadDry Run protection is provided with heavy duty contactor relay (optional).Auto start facility available (optional).Inbuilt Voltmeter & Amp. meter.Protection against high/low voltage.MCB provided (optional).Provided long life Starting & Running Capacitor.

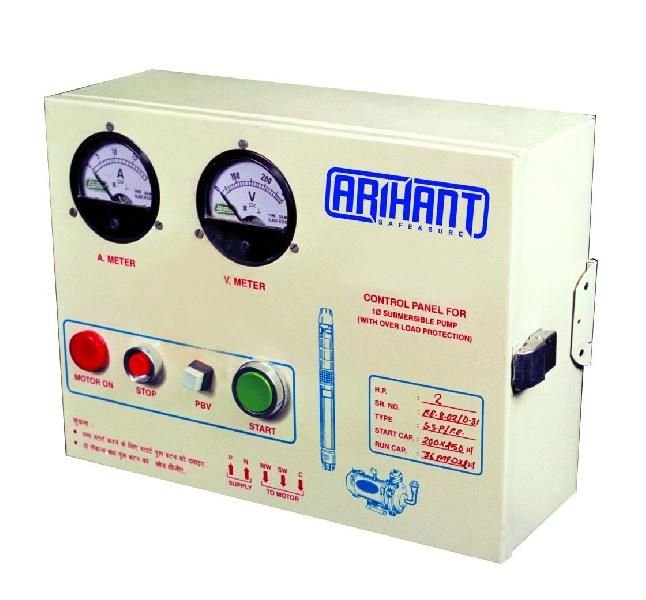

Our Submersible Pump Control Panel (Single Phase) are specially designed to protect submersible and mono-block Pumps from over-loading and short circuit.

• Metal Box: :
• CRC Sheet with Powder coated: Contactor
• :: Schneider/ BCH / C&S (Reputed)
• MCB/MCCB: :
• Schneider/ Teknic/ C&S / Indo Asian (Reputed): Analog Ammeter
• :: 0A-30A (as per motor current rating)
• Analog Voltmeter: :
• 0V-240V (Single Phase), 0V–500V (Two Phase): Starting Capacitor
• :: As per Customer requirement
• Running Capacitor: :
• As per Customer requirement: Pick up Voltage
• :: 120-240 V(Single Phase), 190–240 V (Two Phase)
• Power And Control wiring: :
• Copper: Output
• :: Terminals
• Indicating Lamp: :
• LED Type: Push Button
• :: On / OFF

Submersible pump control panels, Owing to our expertise in the concerned domain, we are engaged in manufacturing and supplying a wide range of Submersible Pump Control Panel. Features: Easy Installation Perfect Finish Shock-Proof

• Starting Capacitors: 80/100,100/120,120/150,150/200,200/250, Up-230v.
• Running Capacitors: 25,36/45/50/72 uf-440v.

ELCW: Protection against overioad.Inbuilt voltmeter and Amp meter.Available in Diffrent modelspanels are inbuilts of heavy duty connector relay,MCB. MCB-WS: Manual start with start & run capacitor with MCB, Vmeter and Amp meter.

We have marked a unique position in the domain by offering a wide gamut of Control Panel for Bagging Machine to our respected customers. These panels are used for bag filling systems which demand very high weight accuracy and interaction with load cell modules. Also, it has precise functioning of PLC with the load cell modules for more accurate and faster operations. FEATURE Application specific Precise design Overload protection

• Color: SIEMENS GREY
• Voltage: 415 V
• Power: 50-100 KW
• Phase: Single Phase, Three Phase
• Brand: Spark Automation
• Material: Sheet metal
• Finish: Powder Coated
• Condition: New
• Usage: Generator, Motor Control, Submersible Pump
• Capacity (Amps): 100-800Amps
• Frequency: 50 Hz
• Sheet Thickness: 16 GAUGE

• Features: Rust-proof, shock-proof molded panel box made with engineering plastic.

High efficiency Condensers (Capacitors) are provided for smooth starting and efficient running.High grade Bakelite Terminal Block is provided to facilitate the connections.Control panel can be used in industrial, agricultural & domestic installations.MS powder coated enclosure to provide better corrosion resistance.Trip time will be accurate and not affected by voltage & temperature at site.

We are offering sewege pump control panel.

Auto Switch

Submersible Pump Control Panels, Ammeters, star delta control panels

submersible pumps control panels, DG Set Control Panel, boiler control panels

Single Phase Mcb Pump Control Panel, Mobile Starter and Panel

Submersible Pump Control Panels, Energy Distribution Boards
