Shriji Industries Vatva, Ahmedabad, Gujarat

the working parts of the shreeji  pump consists of a multi-vane impeller mounted eccentrically in a round casing which is partly filled with liquid (usually water). As the impeller rotate the liquid is thrown by centrifugal force to from a liquid ring which is concentric with the periphery of the casing. Due to the eccentric position of the impeller relative to the casing and liquid ring, the spaces between the impeller vanes fill with liquid during rotation and any air or gas trapped in the impeller space or cell is compressed and discharged from the casing through the outlet part leaving the cell available to receive air or gas as it is presented to the inlet port of the casing. In addition to being the compressing medium the liquid-ring performs three other important functions. It absorbs the heat generated by compression and friction. It absorbs any liquid slugs or vapor entering with the gas stream. It will also absorb and wash out contaminants entrained in the gas.

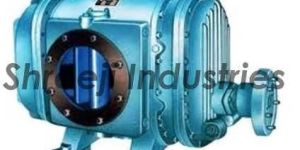

Shreeji industries provides Water Cooled Twin Lobe Blower with pressure or vacuum service. Our High quality Water Cooled Twin Lobe Blower is designed from best materials. We are manufacturing and supplying Water Cooled Twin Lobe Blower in Ahmadabad as well as all over India with all avilable size.Water Cooled Twin Lobe Blower is mainly use for Effluent treatment plantSugar Mill,Paper Mill,Cement Ind.,Polution Control Plant,Textile - Humidification,Gas Booster,Fertilizer Plant,Chemical Plant,Glass / Bulb Ind etc.

Water Cooled Twin Lobe Blower is mainly use for Effluent treatment plantSugar Mill,Paper Mill,Cement Ind.,Polution Control Plant,Textile - Humidification,Gas Booster,Fertilizer Plant,Chemical Plant,Glass Bulb Ind etc.

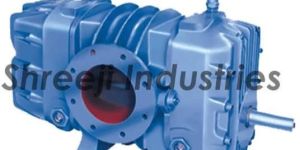

SHREEJI make rotary Twin Lobe Compressors (Roots Blower) is a positive Displacement, constant volume machine which operates against varying pressure. Casing having two cylindrical bores accommodates two rotors having special profiles. They are driven by timing gears mounted on the shaft at non drive end. The special profile of the lobes in such that minimum specified clearance is always maintained between the rotors as well as rotor & casing, there by controlling the losses to the bare minimum. Hardened & Grounded tooth profiles of the gears having corrected backlash to maintain minimum clearance during the rotation of lobes and hence they do not touch each other hence no lubrication is required in the working chamber.

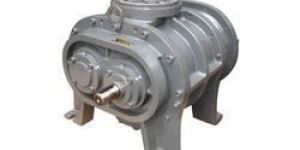

Shreeji industries provides Twin Lobe Air Compressor with pressure or vacuum service. Our High quality Twin Lobe Air Compressor is designed from best materials. We are manufacturing and supplying in cement industries / chemical plant / ETP / STP plant / textile industries / gas booster / fertilizer industries/ sugar industries / paper industries etc..

SHREEJI INDUSTRIES" We are into full manufacturing range of Twin Lobe Rotary Compressors/ROOTS BLOWER. These are also known as Water ring vacuum pump and Gas Booster used in various systems and plants like ETP / STP / RMC . These are High volume-low pressure positive displacement  compressors. They operate on differential pressure and constant volume characteristics.

Cement Feeding Systems are constructed of mild and structural steel, and mounted on a base. FS pumps are equipped with pedestal blocks that support a pump screw which helps to provide a smooth, balanced operation. The screw is dynamically balanced and areas of this screw, along with other parts of the pump in direct contact with the material to be conveyed, are made of hardened, wear-resistant material and special hard surfacing where required. The screw is directly coupled to the driving motor but can be v-belt driven.Standard equipment on FS pumps includes a pressurized seal and bearing assembly that extends the service life of the discharge seals by preventing the material being handled from entering the bearing area. Each pump system includes the pump, drive motor and compressed air source.It is the most versatile and speedy method of transferring bulk material from one point to another within a defined area.

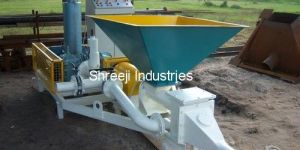

bulker unloading pneumatic systemwe offer pneumatic conveying systems for cement bulker unloading. Twin lube high volume low pressure blower makes it easy to unload the bulkers within an hour. This reduces th dependability on the availability of compressor mounted bulkers.saves time! saves money! bag feeding systemwe also offer vertical and inclined screw feeding systems for cement bag feeding systems to silos. Compared to other pneumatic bag/bulk feeding systems, the connected electrical load is 1/5 for same feeding rate. Cheaper solution in terms of tons / electrical power!

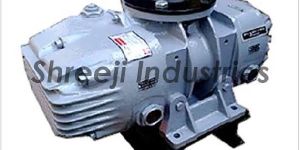

SHREEJI make rotary Twin Lobe Compressors (Roots Blower) is a positive Displacement, constant volume machine which operates against varying pressure. Casing having two cylindrical bores accommodates two rotors having special profiles. They are driven by timing gears mounted on the shaft at non drive end. The special profile of the lobes in such that minimum specified clearance is always maintained between the rotors as well as rotor & casing, there by controlling the losses to the bare minimum. Effective sealing ensured by means of temperature insensitive labyrinth system as well as oil seals and ‘O’ rings keep the leakages to the bare minimum and we get positive displacement, constant volume characteristic with almost oil free compression.
