Spindles Dealers in Ahmedabad

Material : spindle blade : EN 31 alloy (bearing steel), aluminum plug : LM 6, wharves : EN 24 alloy Spindle‘s wharves diameter 18.5 to 22 mm. high quality , low vibration, Operating long life Supplies complete set with flange, nut, and spindle lock. manufacture spindle for ring diameter : 38mm , 40mm , 42mm, 45mm, 48mm etc We supplied spindle with specified insert as Texpart, SKF (teraspin ) , Novibra , Jaylaxmi . Spindle Application Jaylaxmi Industries can reduce the weight of spindle top part (new design ) Jaylaxmi reduce vibration up to 0.05 mm/sec. Recommended for longer tube (165 to 250mm) Jaylaxmi reduce noise level to 75 DBA Suitable for any make ring spinning machine For longer high precision Operating. Short delivery time Advantages Low noise & Power High speed up-to 22,000 rpm. Dynamically balanced. Each Stage Quality Checks to ensure exquisite quality system maintenance for superior performance. Long lubricating cycle

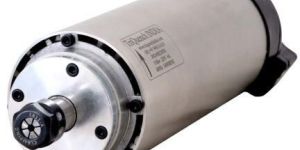

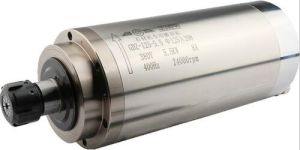

SPINDLE MOTOR 5.5 KW Water Cooled Spindle * 24000 RPM Max. * 13.5 Current Max. * 3 Phase ( 380 V ) Application :- Stone Engraving & Milling

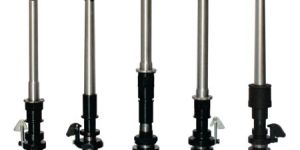

  Technical Details  Application: suitable for ring spinning and doubling frames for cotton, man-made fibres, wool, and blends   Key Features  Buffer spring support below footstep bearing for cushioning axial loads Differential cone angles to support hydrodynamic lubrication between spindle blade and footstep bearing Two point contact; at footstep and neck bearing to minimise friction High speeds of up to 25,000 rpm (mechanical) Compact neck bearing to enable smaller wharve diameter Flexible centring sleeve prevents undue wear and tear Helical coil spool for damping lateral movement   Variants  Variants 160/170/180/190/210 mm lift with minimum 18.5 mm wharve dia. Spindles with HF-21 insert (up to 20000 rpm, mechanical) Spindles with HF-1 insert (up to 22000 rpm, mechanical) Spindles with HF-100 insert (up to 25000 rpm, mechanical)

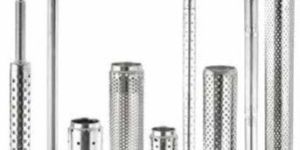

30 to 90 mm Dia 1 to 2.5 mm thick. (any size) Perforation 3.5mm to 6 mm dia.Tubular dye spindle with extension tubes for one. two, three or more packages . With extension tubes a different laoding with packages is possible.

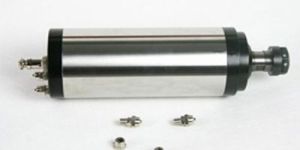

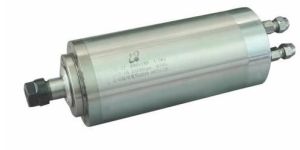

We are supplier Water Cooled Spindle. Widely used in CNC machines for working on wood, PVC, glass and many other materials, these spindles are offered to clients in standard sizes and specifications.

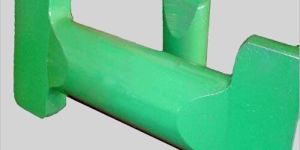

We manufacture Universal Spindles & Couplings that are used in bearing type rolling mills. Universal Spindles are installed in between the two mill stands that are used to couple both stand rolls and run the mill drive from one to another. Universal Spindle is fully machined, with spindles being machined with En-8 material. Today, we are counted among the key Universal Spindle manufacturers and suppliers.

The Column, bed and saddle are rigid structures made of high-strengh casting. well ribbed box-form and duly reinforced, full power to be used. All the guidways of the column, bed and saddle are hand scrapped to maintain high accuracy and ensure a long trouble-free life. Spindle : The boring spindle, made of special steel with a super-finished surface, is guided in a sturdy milling spindle in two long bronze bushes. the milling spindle rotates in two high - precision timken taper roller bearings, Automatics axial travel of boring spindle is a standard feature. Rotary Table : The table has both rotary feed and rapid circuler movment as standard features. it can be clamped in any anguler position as graduction of degrees are there.

To enable us to formulate our manufacturing priorities for Aluminium plug type complete spindle with SKF High speed insert having Wharve dia 20.5 & 18.5 mm for power saving besides drawing sample of the Aluminium plug type complete spindle require by you alongwith your enquiry may kindly be entrust to us, so as to serve your esteem firm with our most competitive price. Any formalities to restore may kindly be enlighten us.

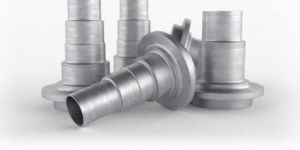

Forged Spindles manufactures in a wide range of sizes and variations for use in the most demanding industrial applications. Open die forging is the preferred manufacturing process for spindles because it reduces material waste, enhances the grain flow and helps prevent voids in the finished product. This increased strength and durability helps our spindles stand up to tough conditions and reduces down time due to premature part failure.

With enthusiasm to accomplish customer’s fulfillment our firm is resolved to manufacture and supply the best quality Central Bottom spindles. The Central Bottom Spindle is highly used in Textile Industries for turning purpose. The Bottom Spindles is produced by using high-grade quality crude materials with advanced techniques. Offered products are broadly demanded in the industry for its tensile strength, low maintenance cost, erosion resistance etc. In addition, our clients can get Central bottom spindle from us in different and at competitive prices. Features:- High tensile strength Low maintenance cost Erosion resistance Available different size

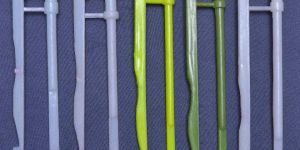

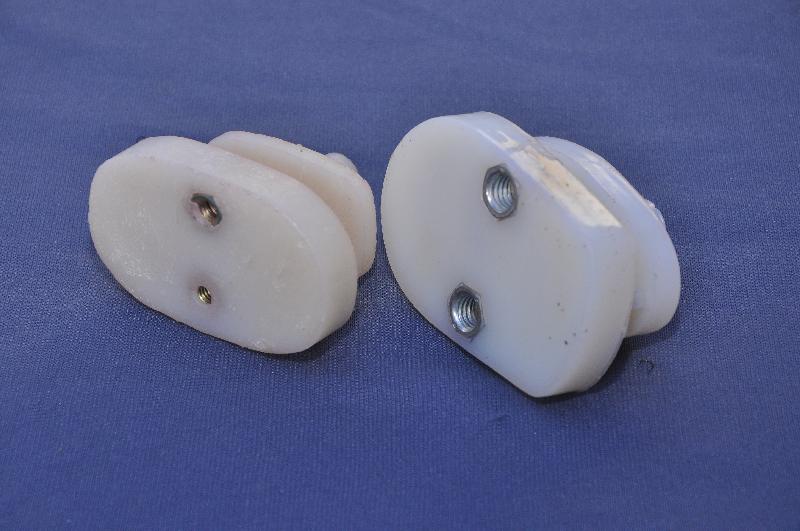

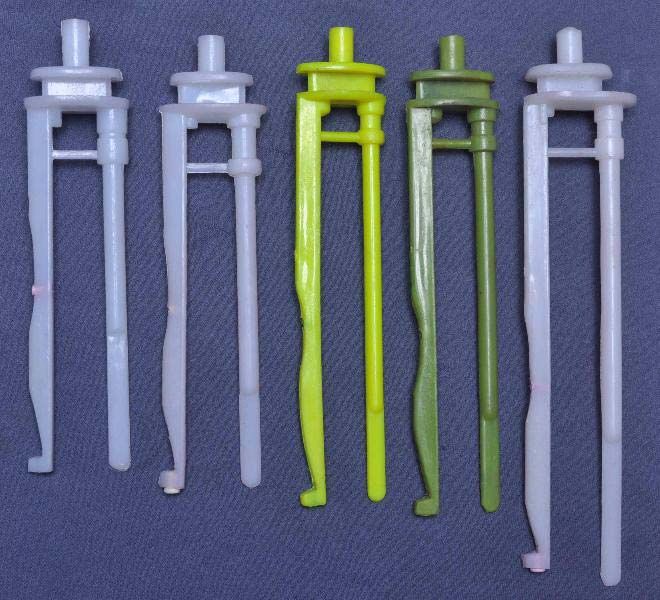

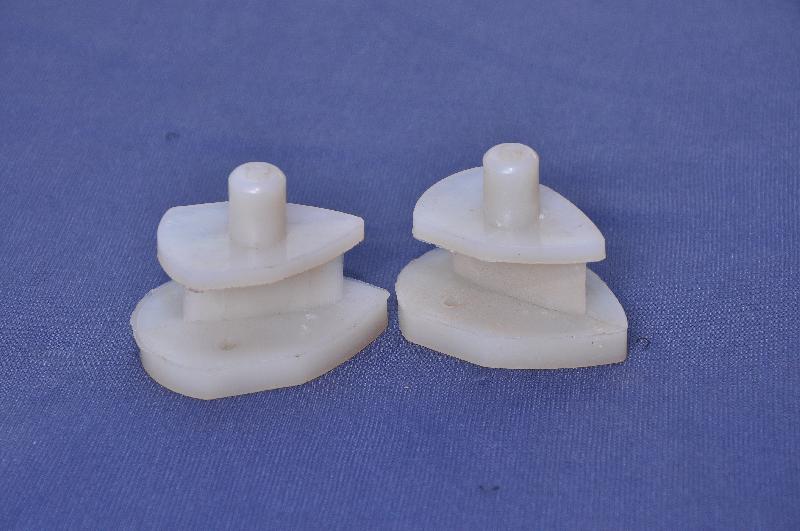

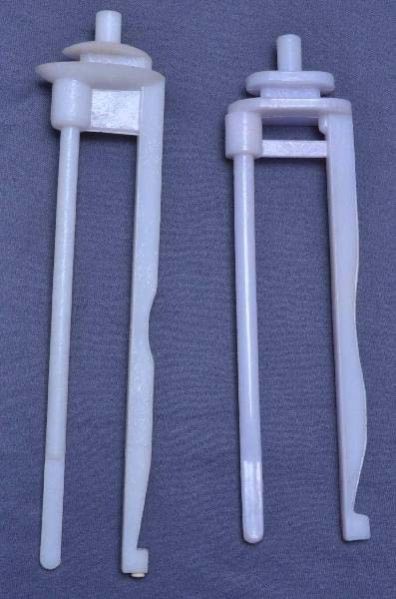

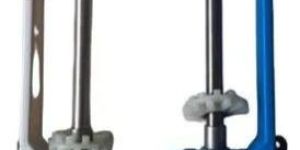

Our Braiding Machine Spindles are used for braiding high tensile steel wires on hose pipes. Our reliable and superfast shipping facilities will not let you wait much and will efficiently deliver the range to your doorstep. Your search for exceptional quality and reliable Heavy Spindle; we are a leading Supplier in this domain.

Product Description:To meet the variegated specifications of our renowned clients, we are engaged in manufacturing, exporting and supplying a wide range of Lap Spindle. Use : Used in several machinery fitting works. Features: Fine finish Perfect design Rustproof

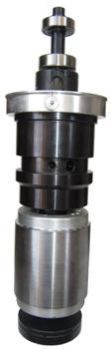

Spindle Drive Motor : ( CC2, CC3, ICBT) Tire cord processing requires a motor of highest quality and reliability. The use of the most modern components is necessary. Our Company develops and provides you with the appropriate technology in Spindle Drive Motors like in different model CC2, CC3, ICBT. Top Quality Tire Cord Spindle is produced for Two-For-One Twisting Machines in a Highly Economical Manner. This Applies To Both Standards And To New Processes. By summing up our strengths such as process reliability, quality, cost-effectiveness, flexibility and user-friendliness, we fortify our customer’s market position and help them reach their aims. Motor Spindle shaft is Steel alloy high resistance to stress and its surface hardened and grounded. Aluminum Frame and end shield cover of motor is alloy with LM24 materials. Storage Disk is alloy with LM24 Material and also with hard caroming plating process. So cord sleeping is smoothly. Deflection guide, tube is very hard and smooth; it is molded with special ceramic material for long life. All motor are winding with additional anti tracking protective coating of air draying varnish is applied on the winding over hangs; PTC Thermistor 130°c and insulation class F (155°c) 2RS Deep grove ball bearing is filled with homogeneous, short fibred texture. It temperature range -40°c to 130°c and drop point >220°c. No any R.P.M. reduction and no any vibration due to the Motor with rotating parts are dynamically balanced for smooth rotate.

Textile Twisting Spindle, HDPE Bags, Industrial Yarn, Ring Spinning Fram
