Thrust Bearings Dealers in Ahmedabad

at high temperatures plastic and composite bearings are subject to other problems such as softening , melting , deformation and may extrude out of the bearing area all together. Because the carbon graphite matrix is very strong.it is not subject to the deformation , melting or even softening that can occur with plastic bearings at these elevated temperatures the temperature resistance in an oxidizing atmosphere can be specified as 400o c maximum for g10 bearing qualities.in a non - oxidizing atmosphere the temperature resistance is determined by the final graphitizing treatment of each individual grade ( e.g. Upper application limit for graphite is approximately 3000o c ). Temperature resistance is also affected by various impregantions. In the case of resin impregnation the maximum operating temperature is 180o c for lead impregantion 200o c and antimony impregnation 500o c

With having years of experience in the domain, we are engaged as manufacturer, supplier, wholesaler and distributor of Thrust Roller Bearings. These bearings are available in numerous diameters and finishes; the provided bearings are used to interconnect two different moving parts. Thus, the demand for such bearings stays always at high from the manufacturer of automotive products, precision machinery and parts. Moreover, the provided bearings can be availed according to the specifications provide by the clients to us. Features: Robustly constructed Rugged design High efficiency High functionality

Radial spherical plain bearings, Angular contact spherical plain bearings, Spherical plain thrust bearings, With rod end type housings, Steel Steel - Steel Bronze, Steel Ptfe Fabric - Steel Zinc base alloy

Thrust bearing is composed by two or more thrust sheets and more rolling elements. The thrust sheets divide into shaft washer & housing washer, the rolling elements was fixed by the steel or brass cage. Many of thrust bearing is ball thrust bearingThrust bearings absorb axial loads from rotating shafts into the stationary housings or mounts in which they are turning. Axial loads are those transmitted linearly along the shaft. Good examples of axial loads are the forward thrust on boats or prop-driven airplanes as a result of their propeller's rapid rotation. Thrust bearings are also used in power drills, where the user puts their weight into a rotating bit to drill through tough materials. Merry-go-rounds have massive thrust bearings to support all the rotating weight.Pure thrust bearings are so termed because they only resolve axial forces from the rotating component into their mounting and not radial forces. As in other types of bearings, there are two major groupings of these bearings, sliding bearings and rolling bearings. An example of a sliding thrust bearing is a thrust washer which is a low-friction material between the shaft and the bearing journal along the rotating component. Types of rolling thrust bearings are ball thrust bearings, and specialized tapered roller bearings.

Spherical Roller Thrust Bearings are the ones with specially designed raceways that can house large number of asymmetrical rollers. These rollers have finest conformity with washer raceways to enhance load distribution across the roller length. Hence, they are able to house relatively high speeds, heavy axial loads in one direction and heavy radial loads. These Bearings are intended to work in environments where grim misalignments exist, either from mounting or shaft diversion. Best feature about these bearings is that they are self-aligning and can house misalignment of the shaft relative to the housing caused due to shaft deflection.   Application Hydroelectric generators Vertical motors Propeller Axle of vessels Tower cranes Squeezing pressed Metal mill work/back-up rolls Pre-heater fans Pumps Implemented in screw conveyors

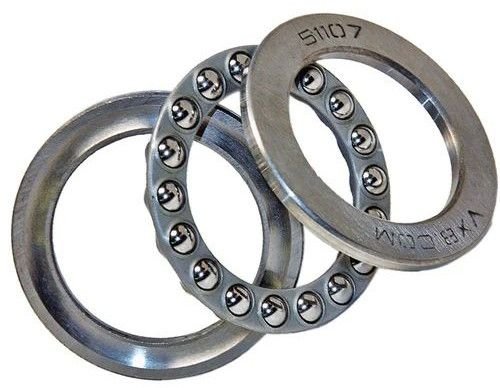

Thrust ball bearings are classified into those with flat seats or aligning seats depending on the shape of the outer ring seat (housing washer). They can sustain axial loads but no radial loads. For Single-Direction Thrust Ball Bearings, pressed steel cages and machined brass cages are usually used The cages in Double- Direction Thrust Ball Bearings are the same as those in Single-Direction Thrust Ball Bearings of the same diameter series. Features Available in two designs: single direction and double direction. To accommodate initial misalignments in an assembly both designs are available with spherical aligning seats or aligning seat washers. High quality steel-ultra clean steel to extend bearing life by up to 80%. Advanced Grease Technology – NSK lubricants that can extend grease life and performance. High Grade Balls – Quiet and smooth operation even at high speed. Optional seating rings take initial misalignment.

Composite Thrust bearing is the heart of submersible motors to ensure friction less, wear and tear less, high speed Composite Thrust Bearing Plant for better performance. Composite pads as a result of their friction properties are resistance to corrosion, and their ability to function at high temperature, their nature of self lubricant with minimum wear & tear and their good thermal conductivity have been used in combination with diamond polished stainless steel tilting segment to make carbon thrust bearings. For the same we have developed high precision grinding, lapping and polishing machines.   Composite Thrust/ Radial Bearing Assemblies are manufactured for submersible motors to meet the dynamic /varying load conditions of bore-wells suitable for 3 " to 12" submersible motors. Based on customer's needs, the Composite Thrust Bearing Pads / Bushes can be given in either resin impregnated or metal impregnated form. Features * High Wear Resistance * Lower Co-efficient of Friction * Self Lubricating * Low Thermal Expansion Thrust Bearing Plant * Better Thermal Conductivity * Self aligning segments to withstand fluctuating loads * Improved efficiency due to the inherent properties of Composite and that of high hardened, lapped and polished Stainless Steel Segments resulting in longer life.   We also Polymer thrust bearings from various engineering composite material.   We also do the job work at moulding at Polymers thrust bearing in your material or in our material on highly satisfied micro processor injection moulding machine from V3 to V10.   Special features :   •No lubrication is required as the carbon itself is lubricant. •Thin water layer in between carbon segment acts as extra natural lubricant which allow the motor to run noiseless •Contact surface of both carbon as well as tilting segment are diamond polished with clear mirror finish hence wear & tear is almost nil. So precision is the surface maintained that the permissible variance is of only 2 micron. Capacity to manufacture 1000 trust bearing sets per day.

A thrust bearing is a particular type of rotary bearing. Like other rotary bearings they permit rotation between parts, but they are designed to support a high axial load while doing this (parallel to the shaft). Different kinds of thrust bearings are used to support different amounts of axial load. Thrust ball bearings are used in applications that use little axial load, where a ring supports ball bearings. Spherical roller thrust bearings are used in applications that require high axial load, and can also support shafts that are out of alignment. Thrust bearings are used in higher speed applications that require oil lubrication, such as in the automotive and aerospace industries. Generally, thrust bearings are composed of two washers (raceways) in which those for ball bearings may be grooved, and the rolling elements.

Spherical roller thrust bearings have specially designed raceways and accommodate a large number of asymmetrical rollers. The rollers have an optimum conformity with the washer raceways to optimize load distribution along the roller length. Therefore, they can accommodate relatively high speeds, heavy axial loads in one direction and heavy radial loads. These bearings are suitable for applications where the shaft relative to the housing bore is prone to angular misalignments.

Suitable for In spherical roller thrust bearings the load is transmitted from one raceway to other at an angle to the bearing axis. The bearings are therefore suitable for the accommodation of radial loads. Another important characteristic of spherical roller thrust bearings is their self-aligning capability. This makes the bearings insensitive to shaft deflection and misalignment of the shaft relative to the housing. ZNL Offerings: 292XX, 293XX, 294XX Available in steel and brass cages

A spherical roller thrust bearing is a rolling-element bearing of thrust type that permits rotation with low friction, and permits angular misalignment. The bearing is designed to take radial loads, and heavy axial loads in one direction. Typically these bearings support a rotating shaft in the [bore] of the shaft washer that may be misaligned in respect to the housing washer. The misalignment is possible due to the spherical internal shape of the house washer

Ball Thrust bearings : single & double direction Angular Contact Thrust bearings Needle Roller & Cylindrical Roller Thrust bearings Combined Ball Needle Thrust bearings Spherical Roller Thrust Bearings
