Vibration Rod Level Switch

24,500 / Piece

MaterialStainless steel
Brand NameUWT
Model NumberMononivo MN4030
HousingAluminium IP67, NEMA Type 4X
ApprovalsATEX, IECEx, FM, CSA, TR-CU
Process Temperature Range-40 C to + 150 C
Pressure-1 bar to + 16 bar

...more
Vibration Rod Level Switch

24,500 / Piece

Material : Stainless steel
Brand Name : UWT

Get Best Price

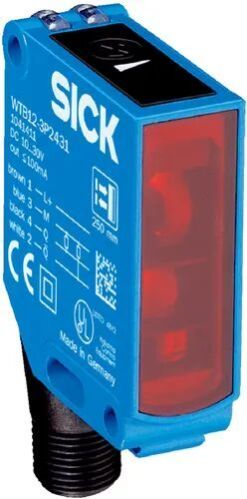

Sick Photoelectric Sensor

8,500 / Piece

Switching Frequency1,500 Hz
Connection TypeCable, 4-wire, 3 m
Housing MaterialMetal
Model Name/NumberSmall photoelectric sensors WTB12-3P1711
BrandSick
Ambient Operating Temperature -40 DegreeC to +60 DegreeC
Dimensions (W x H x D)15.6 mm x 48.5 mm x 42 mm
Housing design shapeRectangular
Sensing Range20 mm to 600 mm
Type of LightInfrared light
Light SourceLED
Light Spot Size (distance)15 mm x 15 mm (200 mm)
Wave Length850 mm
AdjustmentPotentiometer, 5 turns
Supply Voltage10 V DC
Ripple< 5 Vpp
Current Consumption55 mA
Switching OutputPNP
Output FunctionComplementary
Switching ModeLight/dark switching
Signal Voltage PNP HIGH/LOW> Uv - 2,5 V / ca. 0 V
Output Current100 mA
Response Time330 Micron second
Cable MaterialPVC
Conductor Cross-Section0.25 mm2
Weight250g
Optics MaterialPlastic, PMMA

...more
Sick Photoelectric Sensor

8,500 / Piece

Switching Frequency : 1,500 Hz
Connection Type : Cable, 4-wire, 3 m
Housing Material : Metal
...more
Get Best Price

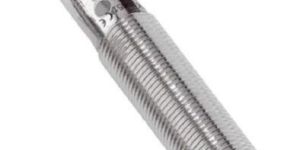

Sick Inductive Proximity Sensor

800 / Piece

Brand NameSick
Model NumberInductive proximity sensors IME12-04BNSZW2S
Power Supply Voltage10 V DC
HousingCylindrical thread design
Thread SizeM12 x 1
Diameter12 mm
Sensing Range4 mm
Safe Sensing Range3.24 mm
Installation TypeFlush
Switching Frequency2,000 Hz
Connection TypeCable, 3-wire, 2 m
Switching OutputNPN
Electrical WiringDC 3-wire
Enclosure RatingIP67
Ripple10 %
Current Consumption10 mA
Time Delay Before Availability100 ms
Hysteresis5 % to 15 %
Reproducibility2 %
EMCAccording to EN 60947-5-2
Continuous Current200 mA
Cable MaterialPVC
Conductor Size0.25 mm
Cable Diameter3.9 mm
Housing MaterialBrass, nickel-plated
Sensing Face MaterialPlastic, PA 66
Housing Length63 mm
Thread Length48 mm

...more
Sick Inductive Proximity Sensor

800 / Piece

Brand Name : Sick
Model Number : Inductive proximity sensors IME12-04BNSZW2S
Power Supply Voltage : 10 V DC
...more
Get Best Price

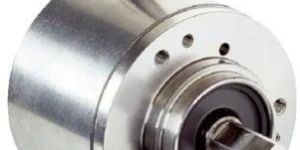

Sick Incremental Encoder

7,500 / Piece

BrandSick
ApplicationsApplications with high resistance requirements against aggressive substances such as cleaning agents or salt
Output Frequency820 kHz
Operating Temperature Range-40 DegreeC to +100 DegreeC
Connection TypeMale connector, M12, 8-pin, radial, Cable, 8-wire, radial
Communication InterfaceIncremental
Model Name/NumberIncremental encoders DFS60 Inox
Enclosure RatingIP67

...more
Sick Incremental Encoder

7,500 / Piece

Brand : Sick

Get Best Price
Relay Interface Module

350 / Piece

BrandFinder
Mechanical life AC/DC10 cycles
Holding voltage0.6 U V
Rated load1500 VA
Maximum switching voltage250 to 400 V AC
Maximum Peak Current6/10 A
Model Name/NumberFinder Type 38.51 Series

...more
Relay Interface Module

350 / Piece

Get Best Price

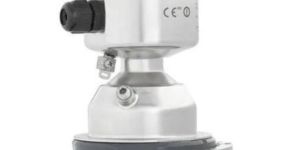

Radar Type Level Transmitter

120,000 / Piece

Model Name/NumberRadar Sensor NivoRadar NR 3100 for level measurement
BrandUWT
Measuring Range40m/100m
Signal output4 to 20mA, 2-Wire
Communication ProtocolHART, Profibus PA and via Foundation Fieldbus
HousingStainless steel 1.4404 (316L), IP68
CertificatesCE, ATEX, CSA, FM
Process Temperature Range-40 C to +200 C
Pressure Range+3 bar max.
Supply Voltage24V DC (max. 30V DC) up to max. 550 Ohm loop resistance.

...more
Radar Type Level Transmitter

120,000 / Piece

Model Name/Number : Radar Sensor NivoRadar NR 3100 for level measurement
Brand : UWT
Measuring Range : 40m/100m
Signal output : 4 to 20mA, 2-Wire
...more
Get Best Price

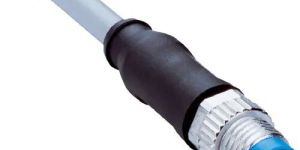

Plug Connector Cable

400 / Piece

BrandSick
Insulation Resistance100 MOhm
Accessory GroupPlug connectors and cables
Connection Type Head AMale connector, M8, 3-pin, straight, A-coded
Connection Type Head BFlying leads
Locking Plug ConnectorScrew connection
Connector MaterialTPU
Connector ColorBlack
Locking Nut MaterialNickel-plated brass
Tightening Torque0.4 Nm
Width Across Flats9
Jacket MaterialPVC
Cable Diameter4.5 mm
Conductor Cross-Section0.25 mm
ShieldingUnshielded
Reference Voltage60 V DC
Rated Impulse Voltage1.5 kV
Current Loading4 A
Signal TypeSensor/actuator cable
Enclosure RatingIP65 / IP66K / IP67

...more
Plug Connector Cable

400 / Piece

Get Best Price
