DesignHeavy-duty Radial Shaft Seal,Double‑lip radial shaft seal with metal case and garter spring
CompatibilityLister-type Engines,Lister‑type diesel engines using 200×300×16 mm housing/bore; verify shaft/housing tolerance and rota
TypeOil Seal
ColorRed
NameSaskia Oil Seal
MediumEngine Oil And Grease Service

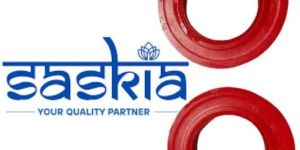

Heavy‑duty radial shaft seal for Lister‑type engines; 200 mm ID x 300 mm OD x 16 mm width, red elastomer for easy identification, designed to retain oil and exclude dust under slow‑speed, constant‑load operation.
Key features:
NBR/VMQ‑grade red elastomer with reinforced metal case; spring‑loaded lip for stable sealing at governed RPM.
Directional lip profile for oil retention; compatible with standard mineral diesel engine oils.
Specifications:
Dimensions: 200 mm (ID) x 300 mm (OD) x 16 mm (Thickness).
Material: Red NBR elastomer with steel insert; stainless spring.
Temperature/medium: Engine oil and grease service; typical −30°C to +120°C (NBR class).
Fitment: Lister‑type housings requiring 200×300×16 seal; press‑fit into clean bore with light oil.
