Umar And Sons Dodhpur, Aligarh, Uttar Pradesh

Driven Type : Solar

Shape : Rectangular

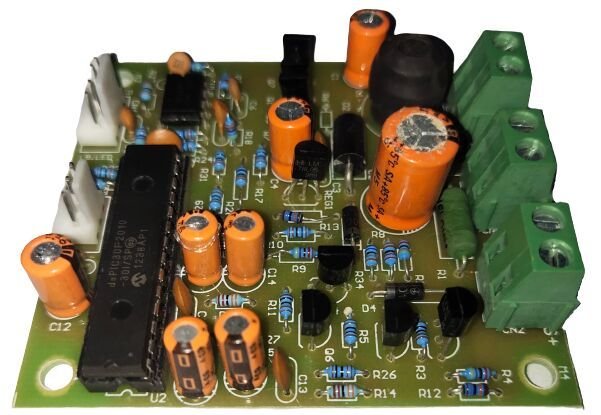

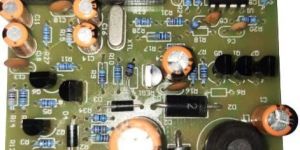

solar street light led driver (7 to 24 watt) features: 1.  pwm based charging 2. led driver support up to 5 to 24 watt 3. solar panel dusk to dawn option. ● nttv (night time threshold voltage) 2.8 volt ● dttv (day time threshold voltage) 3.8 volt  4. dimming options. (late night  mode first 4 hour 100% brightness after 4 hour 50% dimming). 5. solar panel maximum open circuit voltage 22v. 6. solar panel maximum mpp voltage 18.5v. 7. supported battery. ● lithium ion (11.1v) ● lead acid battery (12v). ● lifepo4 battery (12.8v) ● lithium ion (14.8v) 8. motion sensor activate after 4 hour.                   (motion sensor (pir) 🔸if there is no moment on the road the illumination will be only 50%. 🔸if someone moves in the range of motion sensor the illumination will be 100% 9. ideal current consumption less than 3ma. 10. led driver methodology  (dual pwm dc-dc buck converter). 11. pwm frequency 30.53khz 12. led driver efficiency 91% 13. charge controller efficiency 93% 14. maximum panal support 125watt. 15. maximum battery support 75ah 16. maximum led driver support 24 watt. 17. current limiting for led module. 18. charge controller methodology  (three stage battery charge monitoring algorithm). 19. software watchdog for led over current 20. low and high battery voltage cut off. 21. compatible with motion sensor(pir sensor) 22. design suitable for street light and home light. 23. battery charging indications ● green led – charging. (blinking) ● red led – low battery and short circuit. ● both glow together if any fault like open load or short circuit. 24. auto reconnect bms to solar charge controller in case of a battery cut off via bms (0 vdc output from the battery) to avoid service engineer frequent site visit. 25. user selectable output load 6w/9w/12w/15w/18w/21w/24w. 25. inboard user-selectable dimming and non-dimming options. 26. very compact design. protection: 1. solar reverse connection. 2. battery reverse connection. 3. over charging. 4. over temperature. 5. current short circuit. 6. deep discharge protection. dimensions: 80mm to 70mm

Brand Name : Umar And Sons,Umar And Sons

Driven Type : Solar

Shape : Square

Condition : New

Power : 24W

Application : Industrial Use, Solar System Controller

Feature : Durable, Stable Performance

Country of Origin : 12V

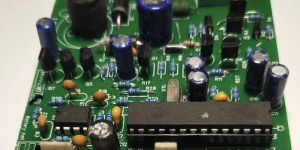

Number Of Flower : Pwm Solar Charge Controller

Total Carbohydrate : 1year, 1 Year

Country of Origin : India

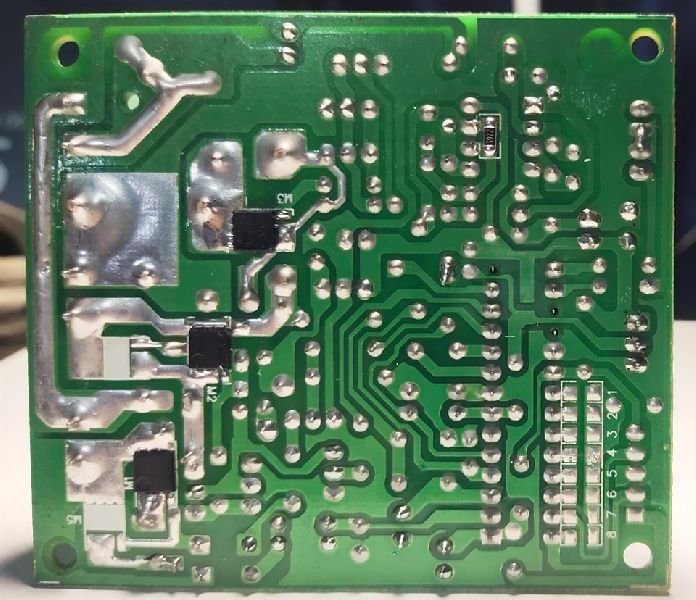

Features: PWM Based Charging LED Driver Support up to 7 to 30 Watt Solar Panel Dusk to Dawn Option. NTTV (Night Time Threshold Voltage) 2.8 Volt DTTV (Day Time Threshold Voltage) 3.8 Volt Dimming options. (Late Night  Mode First 4 Hour 100% Brightness After 4 hour 50% Dimming). Solar Panel Maximum open Circuit Voltage 22V. Solar Panel Maximum MPP Voltage 22V. Supported Battery.  Lithium Ion (11.1V)  Lead Acid Battery (12V).  Lifepo4 Battery (12.8V)  Lithium Ion (14.8V) Motion Sensor Activate after 4 Hour. (PIR Sensor) If there is no moment on the road the illumination will be only 50%. If someone moves in the range of motion Sensor the illumination will be 100% Ideal Current Consumption less than 3ma. LED Driver Methodology. (Dual PWM DC-DC Buck Converter). PWM Frequency 30.53KHZ LED Driver Efficiency 93% Charge Controller Efficiency 95% Maximum Panal Support 320Watt. Maximum Battery Support 150AH Maximum LED Driver Support 60 Watt. Current Limiting For Led Module. Charge Controller Methodology. (Three stage battery charge monitoring Algorithm). Software Watchdog For LED over current Low and High battery voltage cut off. Compatible with motion sensor(PIR sensor) Design suitable for Street Light and Home Light. Battery charging Indications Green LED – Charging. (BLINKING) Red LED – Low Battery and Short Circuit. Both glow together if any fault like open load or short circuit.   Protection: Solar Reverse Connection. Battery Reverse Connection. Over Charging. Over Temperature. Current Short Circuit. Deep Discharge Protection.

Driven Type : Electric

Input Voltage : 280 V
