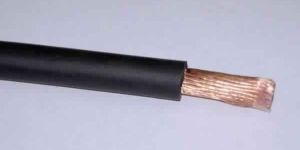

Cable Structure– Class 6 ABC– HOFR Elastomer insulation   Special Features : Technical Sound With Guaranteed Life Saving of 40% Operating Cost Works at High Temperature Power Efficient Fully Tested Extra Safe & Flexible Heavy Duty in Current   Welding Cable With International Specfication HO1N2-D HO1N2-E 361 TQ TPR / PVC

Cable Structure Class : 2 Stranded Copper Wire As Per IS:8130 Insulated : XLPE As per IS:7098/Pt.1/1988 Core Identification: 1 Core : Black / Red / White 2 Core : Black,Red 3 Core : Red,Yellow,Blue 4 Core : Red,Yellow,Blue,Black 5 Core : Red,Yellow,Blue,Black,Grey 6 Core & above : Two adjacent cores (Counting and direction cores) in each layer,Blue & Yellow,remaining cores Grey. Inner Sheath : PVC (Polyvinyl Chloride) ST2 Grade as Per IS:5831 Outer Sheath : PVC (Polyvinyl Chloride) ST2 Grade as per IS:5831

Cable Structure Class : 2 Stranded Aluminium Wire As Per IS:8130 Insulated : PVC (Polyvinyl Chioride) Type A or C As per IS:5831 Core Identification: 1 Core : Black / Red / White 2 Core : Black,Red 3 Core : Black,Yellow,Blue 4 Core : Black,Yellow,Blue & Black Inner Sheath : PVC  ST1 or ST2 Grade as per IS:5831 Outer Sheath : PVC ST1 or ST2 Grade as per IS:5831 Standard References IS:1554/Pt. 1/1988 Special Features Light Weight Better Fire Properties than XLPE Variant Better UV Properties than XLPE Variant Better Flexibility than XLPE Variant Variants : FR FRLS HR-90 Degree Application Range General And Industrial Application Plant Wiring Over Group Cables Technical Data Temperature Range : -15°C to +90°C Test Voltage : a.c.3 KV (rms) Insulation Resistance : 1 x 1013 ohm-CM Min. Bending Radius : 12 x OD (OD = Overall Diameter of Cable) Short Circuit Temperature : 160°C Voltage Rated : 650 / 1100 Volts

Cable Structure• Class 6 bare copper conductor as per IEC 60228 and IS 8130• TPR Insulation• Cores twisted• TPR outer sheath, grey   Standard References BS EN 50525-2-51 DIN VDE 0285-525-2-51 BS EN 50288-7 Special Features Low bend diameter Highly flexible Space saving construction Good oil resistance Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads Suitable for areas with oil vapors at room temperature Applications demanding frequent movement Technical Data Temperature Range  -15°C to +70°C Nominal Voltage  300/500V Test Voltage  1500V Insulation Resistance  Min. 20Mohm-km Min. Bending Radius  6 x cable dia Short Circuit Temperature  Upto 160°C Flame Retardance  As per IEC 60332-1

Cable Structure• Class 5 bare copper conductor as per IEC 60228 and IS 8130• PVC Insulation• Cores twisted• Polyester tape binded• Almylar and ATC drain wire shield• PVC outer sheath, grey Standard References BS EN 50288-7 Special Features Low bend diameter Highly flexible Space saving construction Good EMI protection Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads For installation near electro-magnetic noise – near power cables, medium power consuming machinery and appliances Measurement and control Data processing and signaling Technical Data Temperature Range  -15°C to +70°C Nominal Voltage  300/500V Test Voltage  1500V Insulation Resistance  Min. 20Mohm-km Min. Bending Radius  8 x cable dia Short Circuit Temperature  Upto 160°C Flame Retardance  As per IEC 60332-1

Cable Structure Class : 2  Stranded Aluminium Wire As Per IS:8130 Insulated : PVC (Polyvinyl Chioride) As per IS:5831 Core Identification: 1 Core : Black / Red / White 2 Core : Black,Red 3 Core : Black,Yellow,Blue 4 Core : Black,Yellow,Blue & Black Inner Sheath : PVC (Polyvinyl chioride) ST2 Grade as IS:5831 Armouring : H.D.Aluminium / G.I. wire as per IS:3975 Outer Sheath : PVC ST2 Grade as per IS:5831

Cable Structure• Class 5 bare copper conductor as per IEC 60228 and IS 8130• PVC Insulation• Cores twisted• PVC inner sheath• Fine SS wire braid• PVC outer sheath, grey   Standard References IEC 60502 Special Features Low bend diameter Highly flexible Space saving construction Moderate mechanical protection Corrosion free stainless steel wire braiding used for prolonged strength Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads High mast lights with low loads Technical Data Temperature Range  -15°C to +70°C Nominal Voltage  0.6/1.0kV Test Voltage  3000V Insulation Resistance  Min. 20Mohm-km Min. Bending Radius  10 x cable dia Short Circuit Temperature  Upto 160°C Flame Retardance  As per IEC 60332-1

Cable Structure– Class 5 ABC– PVC Insulation– Cores Twisted– Almylar and ATC drain wire shielded– PVC Outer Sheathed

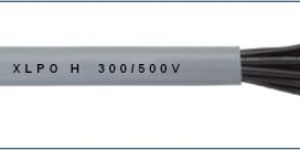

Cable Structure Class 5 bare copper conductor as per IEC 60228 and IS 8130 Special XLPO insulation Cores twisted ZHLS outer sheath, grey Standard References   BS EN 50288-7 Special Features Space saving construction Good fire retardance Low halogen content Excellent electrical properties Good oil resistance Low smoke and toxicity Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads Areas where human or animals are present Tunnels and transportation Suitable for outdoor installations Technical Data Temperature Range : -15°C to +90°C Nominal Voltage : U0/U 300 / 500V Test Voltage : 1500 V Insulation Resistance : min. 200 Mohm x km Min. Bending Radius : 8 x cable dia Short circuit temperature : Upto 250°C  Flame retardance : As per IEC 60332-1 (self extinguishing)   NOTE : G – with GN-YE protective core  X – without protective core

Cable Structure Class 5 tinned copper conductor as per IEC 60228 and IS 8130 Polyester taped conductor EPR Insulation Cores twisted CSP outer sheath, black Standard References  IS 9968 Special Features Low bend diameter Highly flexible Excellent electrical properties Good oil resistance Higher temperature and short circuit temperature rating Low temperature performance Improved thermal ageing life Application Range Industrial machinery and air conditioning systems For general purpose installations in dry or wet environment subjected to low mechanical loads Suitable for areas with oil vapours at room temperature Areas with frequent twists and turns where straight cable laying is not possible Technical Data Temperature Range : -30°C to +90°C Nominal Voltage : U0/U 1.1KV Test Voltage : 3000 V Insulation Resistance : min. 200 Mohm x km Min. Bending Radius : 6 x cable dia Short circuit temperature : Upto 250°C  Flame retardance : As per IEC 60332-1 (self extinguishing)   NOTE : G – with GN-YE protective core  X – without protective core

Cable Structure• Class 5 bare copper conductor as per IEC 60228 and IS 8130• ZHLS Insulation• Cores twisted• ZHLS outer sheath, grey   Standard References BS EN 50525-3-11 BS EN 50288-7 Special Features Low bend diameter Highly flexible Space saving construction Execllent fire retardance Low halogen content Excellent electrical properties Good oil resistance Low smoke and toxicity Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads Areas where human or animals are present Tunnels and transportation Suitable for outdoor installations Technical Data Temperature Range  -15°C to +70°C Nominal Voltage  300/500V Test Voltage  1500V Insulation Resistance  Min. 200Mohm-km Min. Bending Radius  8 x cable dia Short Circuit Temperature  Upto 160°C Flame Retardance  As per IEC 60332-1

Cable Structure• Class 5 bare copper conductor as per IEC 60228 and IS 8130• ZHLS Insulation• Cores twisted• ZHLS inner sheath, black• ZHLS outer sheath, black   Standard References IEC 60502-1 Special Features Low bend diameter Flexible Execllent fire retardance Low halogen content Excellent electrical properties Good oil resistance Low smoke and toxicity Improved mechanical strength and abrasion resistance Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads Areas where human or animals are present Tunnels and transportation Suitable for outdoor installations Suitable for power applications Suitable for direct burial Technical Data Temperature Range  -15°C to +70°C Nominal Voltage  0.6/1.0kV Test Voltage  3000V Insulation Resistance  Min. 200Mohm-km Min. Bending Radius  8 x cable dia Short Circuit Temperature  Upto 160°C Flame Retardance  As per IEC 60332-1

Cable Structure• Class 5 bare copper conductor as per IEC 60228 and IS 8130• PVC Insulation• Cores twisted• Polyester tape binded• Fine wire ATC braid• PVC outer sheath, grey   Standard References BS EN 50288-7 Special Features Low bend diameter Highly flexible Space saving construction Excellent EMI protection Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads For installation near electro-magnetic noise – near power cables, heavy power consuming machinery and appliances Measurement and control Data processing and signaling Technical Data Temperature Range  -15°C to +70°C Nominal Voltage  300/500V Test Voltage  1500V Insulation Resistance  Min. 20Mohm-km Min. Bending Radius  8 x cable dia Short Circuit Temperature  Upto 160°C Flame Retardance  As per IEC 60332-1

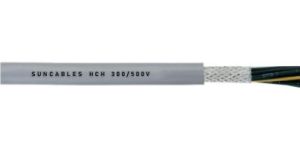

Cable Structure• Class 5 bare copper conductor as per IEC 60228 and IS 8130• ZHLS Insulation• Cores twisted• Polyester tape binded• Fine wire ATC braid• ZHLS outer sheath, grey   Standard References BS EN 50525-3-11 BS EN 50288-7 Special Features Low bend diameter Flexible Space saving construction Excellent fire retardance Low halogen content Excellent electrical properties Good oil resistance Low smoke and toxicity Excellent EMI protection Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads Areas where human or animals are present Tunnels and transportation Suitable for outdoor installations For installation near electro-magnetic noise – near power cables, heavy power consuming machinery and appliances Measurement and control Data processing and signaling Technical Data Temperature Range  -15°C to +70°C Nominal Voltage  300/500V Test Voltage  1500V Insulation Resistance  Min. 200Mohm-km Min. Bending Radius  8 x cable dia Short Circuit Temperature  Upto 160°C Flame Retardance  As per IEC 60332-1

Cable Structure– Class 5 ABC– EPR Insulation– Cores Twisted– NBR Outer Sheathed, black

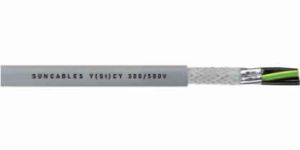

Cable Structure• Class 5 bare copper conductor as per IEC 60228 and IS 8130• PVC Insulation• Cores twisted• Polyester tape binded• Almylar and ATC wire braid screen• PVC outer sheath, grey   Standard References BS EN 50288-7 Special Features Low bend diameter Highly flexible Space saving construction Excellent EMI protection Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads For installation near electro-magnetic noise – near power cables, heavy power consuming machinery and appliances Measurement and control Data processing and signaling Technical Data Temperature Range  -15°C to +70°C Nominal Voltage  300/500V Test Voltage  1500V Insulation Resistance  Min. 20Mohm-km Min. Bending Radius  8 x cable dia Short Circuit Temperature  Upto 160°C Flame Retardance  As per IEC 60332-1
