Ammeter Dealers in Ambala

We have cordial relations with the logistic companies that allow us to reach any preferred Haryana(India) with ease, thus ensuring timely delivery. We are highly concerned towards providing the top-notch array of products to the buyers and thus, check the lot at different levels for quality assurance.

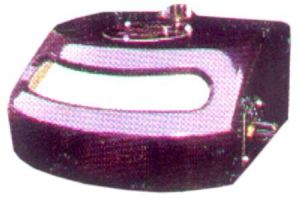

Spot Reflecting Galvanometer To find extensive use as a DC null detector in wheat stone bridges and potentiometers. It is mains operated instrument or it can operate on 6 volt battery also. The light source 6 volt and 0.3 Amp. bulb. Construction: Built-in lamp and scale arrangement and housed in bakelite case. Scale is 150 mm long and is marked for both Centre and End zero use. To set light at any point on the scale. Sensitivity Control: The sensitivity controlled by a 2-Pole, 6-way switch. The switch positions are D, 1, 1/10, 1/100, 1/1000 and s/c. Direct Position (D Position): The switch correspond to the highest sensitivity with no internal damping in this position, movement is connected straight to the terminals without any shunts. X 1 (Position): In this position, one gets maximum sensitivity with near critical damping because the galvanometer movement is shunted by an internal damping Resistor. X 1/10, X 1/100, X 1/1000 Positions: The current sensitivity is reduced by an AYRTONMATHER shunt by x 10, x 100 and x 1000 with respect to x 1 range. S/c Position: The input circuit is broken and the movement is shorted for its protection in transit. Galvanometer X Damping X Sensitivity 100 ohms x 1000 ohms x 0.04 uA per mm 600 ohms x 7000 ohms x 0.04 uA per mm.

AMMETERS   Dual Scale, Moving coil for DC measurements. Any range 2.5/5, 1.5/3, 5/10Amps.Ammeters     DEMONSTRATION METER   In a rectangular transparent plastic case, provides clear view into the working of meter. Moving coil type, can be supplied as ammeter, voltmeter or galvanometer. 4mm terminals.Galvanometer, 30-0-30Voltmeter, 0 to 5, 10, 50, 250 V Ammeter, 0 to 1, 1.5, 3, 5A.

NAUGRALABS LABORATORY PRODUCT NAME: MILLI AMMETERS FOR TESTING LAB NaugraLabs Laboratory Product Code: NLE-Export-080001 Description and Specification for Lab Tenders Milli Ammeters.  Educational Desk Stand Meter DC 20001 : Milli ammeters - Range 0 - 1 to 1000mA 20002 : Ammeters - Range 0 - 1 to 10A 20003 : Milli voltmeter - Range 0 - 150 to 1000mV 20004 : Voltmeter - Range 0 - 1 to 600V 20005 : Galvanometer - 30-0-30 Division, sensitivity of 20uA/Div Specifications Case : Clear Transparent Front Cover. Accuracy : Class ±1.5 F.S.D. Scale Length : 65 mm (Approx.) with Knife Edge Pointer & anti parallax mirror scale. Desk Stand : Front Terminal Unbreakable ABS Plastic Black Desk stand. Overall Size : 120x80x85 mm approx. Packing : Thermocol Box  Test Measuring Instruments Lab equipment manufacturers,exporters and Test Measuring Instruments Lab suppliers

Alpha chem is manufactures,exporter & suppliers interscale demonstration meter. Interscale demonstration meter : complete assembly fitted in tough, plastic frame with transparent front and back windows. Moving coil type with accuracy of ± 2. 5%. 8asic sensitivity of meter calibrated a 5ma, 100mv fsd. The meter is useful for demonstrating the working principle of ac or dc ammeters, voltmeters and galvanometers, using the various interchangeable plastic scales. Overall size 300 x 1 50 x 300mm. Basic movement : 5ma - 100mv f.s.d. Scale length : 200mm approx dimensions : 300x150x300mm weight : 2 kg. Approx.

Ammeter:- EDUCATIONAL EQUIPMENT » PHYSICS EQUIPMENTS » Ammeter Ammeter- Physics Equipments An ammeter (from Ampere Meter) is a measuring used to measure the current in a circuit. Electric currents are measured in amperes (A), hence the name. Instruments used to measure smaller currents. • Dc mounted in beautiful bakelite acrylic stand with accuracy + 0% F.S.D. • With lock Type terminal packed in card box. • All common ranges available. Available Models – MO65, MR80, MR100

The Demonstration Meter manufactured by us is Ideal for classroom or group demonstration. The Demonstration Meter comes with a moving coil type, 30´15´30cm, with spring control and magnetic damping. Basic movement of meter calibrated to 5mA, 100mV. Long, pointer needle, with thick arrowhead for clear visibility from a distance, moves on hardened and polished steel pivots and jeweled bearings. It is mounted in sturdy, plastic frame with transparent front & back windows. One side of frame has color-coded, 4mm socket terminals for electrical connection and a slot for inserting or removing scales; other side has zero-adjustment knob, and knob for locking pointer needle. Interchangeable scales of different ranges (center zero as well as left zero) for measuring AC & DC voltage and current values. Scales are printed on both sides facilitating group observation. Features Complete plastic bodyzero-adjustment knob

The Ballistic Galvanometer offered by is a type of mirror galvanometer that is used to manage the electric charge in an experiment. Made available in diverse specifications, our Ballistic Galvanometer is very affordable.

Our streamlined inventory system and capacious warehouse assist us in meeting the bulk requirements of the customers. Also, we ensure year round availability of the products. Rely on us for premium quality of the products as we make use of the finest grade raw material for preparing them. Also, we procure it from the reliable places after complete quality satisfaction. Accessories Required :  BNC to 4mm banana plugs lead. Features & Technical Specifications : SMPS based, universal input voltage. Measurement ranges - 2000p- 20nA -200nA - 2 µA - 20µA - 200 µA  31/2 digit, digital readout. Input impedance - 17M Features : High-performance Precise design Long service life

We 'national scientific apparatus works' offering our customers tangent galvanometer . It consists of a bakelite moulded ring 170 mm, with three sets of winding - either 2, 50 and 500 turns (depending upon the requirement) respectively, carfully insulated, connected to heavy brass terminals. The number of turns is clearly marked between the terminals. The ring is mounted on a pivoted round bakelite base which rotates on an aluminum tripod base fitted with three brass leveling screws. The high sensitive compass box (with permanent magnet) is mounted on a substance brass pillar and is free to rotate upon it. The compass is 5" in dia and has a scale graduated to single degrees. Overall height is approx. 9". All brass parts are chrome plated. Supplied with permanent compass box. Beware of duplicate,low quality products. Buy only from national scientific apparatus works store

We offer superior quality galvanometer in the domestic as well as global market. Our coil galvanometer is noted for high precision accuracy in its performance. Besides, the DC galvanometer supplied by us is very durable and has long functional life. Moreover, the company recognized as one of the foremost galvanometer manufacturers suppliers from India.

The plastic ring or bobbin, 162.5 mm overall diameter wound with three coils of insulated copper wire with 2, 50 and 500 turns mounted on bakelite moulded platform fitted with 4 terminals, rotating on a tripod non-magnetic metal base, supported by levelling screws. Complete with compass box (Magnetometer) mounted at the centre of the ring.
