Galvanometer Dealers in Ambala

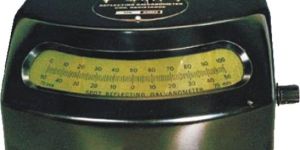

We provide highly efficient spot reflecting galvanometer that is supplied in kdc. We offer the spot reflecting galvanometer at competitive prices and it is available as per the client’s requirements. We are one of the well-established spot reflecting galvanometer manufacturers, exporters and suppliers. preferred for effective current detectionusage in industrial kelvin double bridgeworking in senior kelvin double bridgehigh accuracy technical specifications 125 ohms resistance15 mm sensitivitymicro amplitude division of scaletwo seconds of time duration1000 ohms damping resistance230 volts working voltage50 hz a.c current

Ballistic Galvanometer of small quantities of electrical charge. the moving coil is suspended by a phosphor bronze strip, which carries an optically true concave mirror. The coil can be raised, lowered or set to zero by an adjusting knurled knob at top. A knob at back is provided for clampingand releasing the coil. With levelling screws. Resistance Period.

We 'national scientific apparatus works' offering our customers tangent galvanometer . It consists of a bakelite moulded ring 170 mm, with three sets of winding - either 2, 50 and 500 turns (depending upon the requirement) respectively, carfully insulated, connected to heavy brass terminals. The number of turns is clearly marked between the terminals. The ring is mounted on a pivoted round bakelite base which rotates on an aluminum tripod base fitted with three brass leveling screws. The high sensitive compass box (with permanent magnet) is mounted on a substance brass pillar and is free to rotate upon it. The compass is 5" in dia and has a scale graduated to single degrees. Overall height is approx. 9". All brass parts are chrome plated. Supplied with permanent compass box. Beware of duplicate,low quality products. Buy only from national scientific apparatus works store

The bakelite ring or bobbin. 162.5 mm overall diameter wound with three coils of insulated copper wire with 2, 50 and 500 turns mounted on black bakelite moulded platform fitted with 4 terminals, rotating on a tripod non-magnetic metal base, supported by brass levelling screws. Complete with compass box(Magnetometer) mounted at the centre of the ring. Compass box(Magnetometer) spare for tangent galvonometer.

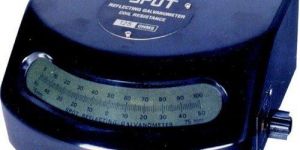

Our Spot Reflecting Galvanometer is specially designed with the help of advanced technology, in order to ensure high performance and durability. Largely preferred for scientific experiments, the Spot Reflecting Galvanometer offered by us provides excellent performance.

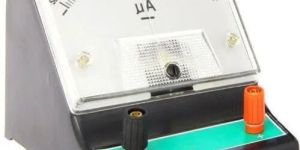

Moving coil D.C. only with 4mm terminals. 1 - 0 - 1 mA. 35 - 0 - 35 mA. 3.5 - 0 - 3.5 mA. 30 - 0 - 30 Sensivity 200uA / Div.

A bakelite ring or bobbin is of 165mm diameter with 3 windings of 2, 50, & 500 turns. The magnetometer is supported on a brass tube fitted on an ebonite plate, which is free to revolve in the base of the instrument. The magnetometer & the ring can both be rotated independently of the base which is with levelling screws. The compass box consists of a bakelite base with metal dial of diameter 100mm graduated in degrees & with anti-parallax mirror. Cobalt steel magnet & aluminium pointer are mounted on special synthetic sapphire. The needle moves on special pivot. This combination makes the needle virtually frictionless.

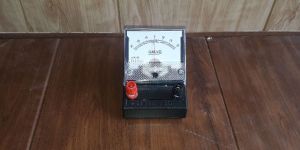

galvanometer Moving coil type at , a scale , mounted on a molded container upright with 2 terminal that can bind wire and zero adjustment . Scale of 35 mV - 0 mV - 35 mV with an internal resistance of 10 Ω . SIRIM pass inspection .

Ballastic Galvanometer (Bajaj Pattern) The moving coil system is housed in aluminium case with an easily removably front sliding cover. A rectangular coil with a large moment of Inertia and a large cross section is suspended with the help of a fine phosphor bronze suspension strip and moves in a strong magnetic field gnerated by a permanent magnet. The coil carries a 10 mm circular concave mirror of 100 cm focal length which renders the instrument to be used in conjuction with a Lamp and Scale Arrangement. Having circular base with three levelling screws. A Zero Adjuster is provided to set the spot of light on scale. A clamp the coil during transit. Rigid in construction. Having large periodic time. These galvanometers can be used both as PERIODIC as well as APERIODIC instruments. An arrangement is provided in the instrument to make it APERIODIC by introducing a suitable resistance in parallel with the moving coil system. Cat. Galvanometer Time period Sensitivity at 1 No. Resistance Approximate meter distance per (Ohms) (Seconds) micro Coulomb (mm) 100 8 - 10 Sec. 300 500 8 - 10 Sec. 600

Serving the markets of Ambala(India) and nearby area, we offer top-notch quality range. Our clients are given the choice to make online or offline payments. We comprehend the requirements of our customers. Thus, we ensure our payment methods are legal, secure, and practical.

We have cordial relations with the logistic companies that allow us to reach any preferred Haryana(India) with ease, thus ensuring timely delivery. We are highly concerned towards providing the top-notch array of products to the buyers and thus, check the lot at different levels for quality assurance.

The bakelite ring or bobbin. 162.5 mm overall diameter wound with three coils of insulated copper wire with 2, 50 and 500 turns mounted on black bakelite moulded platform fitted with 4 terminals, rotating on a tripod non-magnetic metal base, supported by brass levelling screws. Complete with compass box(Magnetometer) mounted at the centre of the ring. Compass box(Magnetometer) spare for tangent galvonometer.

The plastic ring or bobbin, 162.5 mm overall diameter wound with three coils of insulated copper wire with 2, 50 and 500 turns mounted on bakelite moulded platform fitted with 4 terminals, rotating on a tripod non-magnetic metal base, supported by levelling screws. Complete with compass box (Magnetometer) mounted at the centre of the ring.
