The two plates are supported in two rigid uprights and driven by belt in opposite direction. They are heavy, high resistance plastic with sectors of aluminium sheet. Two leyden jars (condensers) made from corning glass and aluminium foil. The whole is mounted on a wooden base nicely polished. ALSO AVAILABLE MOUNTED ON TRANSPARENT ACRYLIC BASE.

Ideal for weighing small quantities of powder. Easy to use with hollow stem to aid introduction of the powder into narrow neck vessels e.g. volumetric flasks The flat base ensures stability on the balance pan.

  The plant consists of: One cation Exchanger column containing cation Exchanger Resin. One anion exchanger column containing anion exchanger Resin. Plant is mounted on M.S. stand with assembly of valves and tubing. One conductivity meter with cell to monitor the ionised solids of purified water and thus control the functions of demineralisation. The meter is direct reading having reading heavy range 0.40 microns/cm. a) Cap. or flow rate 30 to 50 It/hr.   b) Cap. or flow rate 75 to 100 It/hr.

These Bottles are also made of Low Density Polyethylene are are therefore translucent and unbreakable. The distinguishing feature that these bottles contain is the built in delivery tube making it a one-piece Wash Bottle. These Bottles are graduated on the outer surface to give an approximate idea about the volume of solution filled or dispensed.

 Round glass or S.S. jar of 30 cms. dia. 30 cms. depth motor fitted with a stirrer having water circulation to maintain gradient of temp. Suitable to hold 6 viscometers. Digital Electronic Temp. Controller and Indicating lamps. Temp. Range 5°C above embient to 95°C. Accuracy ± 0.1°C.

To compare the magnetic moments of magnets and to determine moment of inertia etc. Consisting of a box with sliding glass doors. The top of the case is slotted and carries a glass tube fitted wih a simple torsion head ot support, by means of nylon fibre, a stirrup to carry magnets etc. The base of the box is marked with a longitudinal index line. Internal dimensions of the box 160x66x66 mm Length of tube 145 mm approx. Size of stirrup 50mm, long x 45mm high approx. Complete with one each 50 and 100 mm bar magnets and one each 50 and 100 mm brass bars.

Plated steel, columbus type calliper enabling the user to read either inside, outside or depth measurements. With dual scale 0-12 cm x 0.1 mm. Imperial scale graduated to 5 x 1/128 inches provided with thumb wheel for easy motion of jaws, in plastic/velvet case.

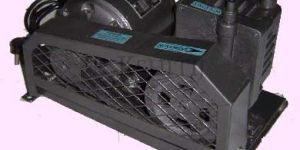

(a) Vacuum Pump single stage oil sealed, Air cooled V belt driven and mounted on base plate with belt guard etc. S.No. Displacement in Lt./Min. Motor H.P. AC Single Phase 01 35 0.25 02 50 0.25 03 75 0.50 04 100 1.00 (b) Vacuum Pump Double stage specification as above Model S. No. Displacement in Lt./Min. Motor H.P. AC Single Phase 01 32 0.25 02 50 0.25 03 75 0.50 04 100 1.00 Accessories for above models (c) Vacuum gauge with regulator and non return valve. (d) Moisture Trap with non return valve and vacuum gauge with regulator. (e) Vacustat with mercury Range 10mm to 0.001 mm/Hg. Pressure. (f) V-Belt

a) U.V. CHROMATOGRAPHY: Inspection cabinet for viewing and detecting separated substances on T.L.C. layers fitted with long wave (365nm) U.V. Lamp for use on 220V A.C. b) U.V. CHROMATOGRAPHY: Inspection cabinet for viewing and detecting separating substances on T.L.C. layers fitted with two different wave length U.V. tubes for use on 220V A.C. c) U.V. INSPECTION CABINET (SHORT AND LONG WAVE) (DUAL WAVE):- having imported filters fitted with separate low pressure mercury vapour tubes for short U.V. (254 nm) and long U.V. (365nm) plus separate lamp for visible light, the low pressure mercury vapour tubes in this model facilitate immediate use for inspection as you switch on.   d) Spare U.V. Tube.

A most accurate and convenient model of universal hand refractrometer with a selector knob to indicate measurement range from 0-90% Accuracy 2%, Incorporates built in Acmi-prism and special light reflection system for colour eliminator to obtain sharp critical boundary line and optimum contrast Hand Refractrometers also available in three separate ranges Model b. 0-32% c. 28-62% d. 58-90%

Pressure die cast aluminium alloy, other parts are of plated brass, cork lined, ensures firm grip at all angles of opening, opens upto 90 mm, with 250 x 8 mm nickel plated mild steel rod.

Number Of Flower : Universal

Material : Brass, Cast Iron, Mild Steel

Finishing : Polished

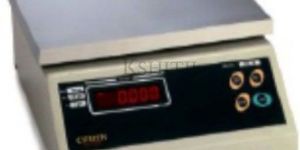

Digital a world class quality made by the best load cell of Japan, large L.E.D. for easy view, microprocessor 8085 based, built in step down transformer, suitable for 220 volts AC input, electric main 220/230 volts single phase 50 cycles AC. a) LCB-1 600 gm 0.1 gm 100% b) LCB-1 (Super) 600 gm 0.1 gm 100% c) LCB-2 6000 gm(6Kg) 01 gm within range d) LCB-2 (Super) 6000 gm(6Kg) 01 gm within range e) LCB-2A 10000 gm(10Kg) 01 gm within range f) LCB-2A (Super) 10000 gm(10Kg) 01 gm within range g) LCB-2B 12000 gm(12Kg) 01 gm within range h) LCB-2B (Super) 12000 gm(12Kg) 01 gm within range i) LCB-2C 15000 gm(15Kg) 01 gm within range   j) LCB-2C (Super) 15000 gm(15Kg) 01 gm within range

 (Low speed)- It is a multipurpose unit, suitable for low speed homogenisation of tissues and also small volume low speed stirring applications pulley driven low speed provide high torque for grinding and homogenising of animal or vegetable tissues. Motor 1/20 H.P. 1200 r.p.m. continuous heavy duty, 220/230V A.C.

To provide dots on tape at 1/50 or 1/60 second intervals, equal to the frequency of the mains supply. Operates on12 V a.c. It has an electromagnet & a spring loaded armature which vibrates above a support table. Paper tape, drawn through guides on the table is struck by a dotting screw, carried on the armature. A peg on the table is provided to allow full use of carbon paper disc. Fitted on base.

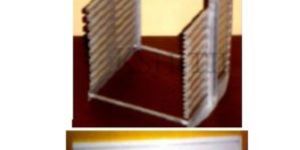

This unit is based on Desaga German pattern having movable applicator with in built thickness arrangement between 0 to 2mm have the following components :- a) Spreader (Applicator) made of electroplated brass. b) Perspex Base size 114x23cm to support 5 glass plates of size 20x20cm and 2 plates of 20x5cm. c) Plate Rack Aluminium for ten 20x20 cm plates. d) Spotting Termplate made of perspex. e) Developing tank with lid. f) T.L.C. plates set of five 20x20cm & two 20 x 5 cm orset of ten 20x10 cm. and two 20 x 5 cm. g) Micro-pipette. h) Scriber for making lines made of stainless steel. i) Glass sprayer with rubber bellow capacity 100 ml.. j) Instruction manual. b) It is same as above but the applicator is made of anodised alluminium. ACCESSORIES for T.L.C. Apparatus are also available (ask for rates)

Cylinderical copper rod about 300 mm length 25 mm diameter, one end containing a steam chamber connected to inlet and outlet tubes, other end of copper rod has cavity connected via thermometer pockets to water inlet and outlet tubes. Through two thermometers supports tubes 75 mm apart are inserted in the rod for finding the temperature at two points. Fitted in teakwood polished case packed with felt with removable front, without thermometers.

Made of seasoned hardwood, polished, with single row of holes,.Vertical pegs are provided for quick drying of the test tubes. A. For Six Test Tubes, with six pegs, two holes of 32mm diameter and four holes of 22mm diameter. B. For Twelve Test Tubes, with twelve pegs, two holes of 32mm diameter and ten holes of 22mm diameter.

For the convenient and safe handling of beaker containing hot solutions and for pouring out the contents.The jaws are asbestos covered to ensure firm grip.Overall length of tong 30cms.approx, Made of stainless steel. Same as above, but made of brass.

Test Tube Baskets are made of Polypropylene. These autoclavable, unbreakable and non-corrosive baskets are ideal for rinsing & draining glassware. These are also useful for storage of test tubes or culture tubes during sterilization or incubation.

The bakelite ring or bobbin. 162.5 mm overall diameter wound with three coils of insulated copper wire with 2, 50 and 500 turns mounted on black bakelite moulded platform fitted with 4 terminals, rotating on a tripod non-magnetic metal base, supported by brass levelling screws. Complete with compass box(Magnetometer) mounted at the centre of the ring. Compass box(Magnetometer) spare for tangent galvonometer.

Single punch for making tablets upto 1000 mg. and as per size of the punch 6mm. Automatic compression and ejection devise with each revolution of the wheel drive, automatic feed and removal of tablets. Built on heavy cast body with acentric pressure system. Stainless steel hopper provided and connected by a rubber tube. Easy setting for thickness and hardness of tablets with nuts and lock nuts, set of two spanners provided as necessary tool die. Heavy duty.

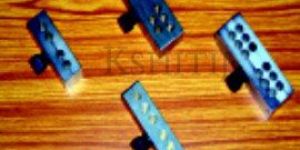

 Made from brass/gun metal machine made perfect shapes smooth and polished cavities. Nickel plated various capacities with a number of mould in each set. Capacity 1 gm , 1.5 gms & 2 gms (15.4 grains). (a) 4-moulds set (b) 6-moulds set (c) 12 moulds set

The centrifuge is useful for research work in medical pharmaceutical, Industrial and research Institute. It is also suitable for determination of settlement of paints, pastes, cosmetics and food products. The unit is housed in a strong fabricated sheet steel housing having front panel where controls are mounted. Special features include lid interlock, stepless speed control.illuminated switch lamp,1-99 Mts.Digital preset timer with bypass switch and Digital Speed Indicator., dynamic brake, unbalance output.(Supplied without rotor Head) Rotor Head is at extra cost. Technical Data: Max. Speed rpm 16000 Max. rcf g 17600 Max. tube size ml 100 Max.cap ml 400 Width mm 425 Depth mm 460 Height mm 465 Lowest Temp. °C ---- Connected load KVA 0.8   Supply 230volts, single phase 50Hz,Ac.

Smith type,two sweep hands,One indicating seconds,The other recording minutes,Start-stop lever on the left hand side,zero resent lever on right hand side. Movement houses in metal case.Runs for 24 hours on one winding.Diameter of dial is 100 mm divided 0-60 *1 in white powder coated metal case.

Nickel-plated finish. Cutting tube mounted with safety under-flange in shaped handle ensuring that operator cannot be injured by a dislodged tube. With iron rod for cleaning borers. Set of : 6 12 18 Size : 4-10mm 4-18mm 4-27mm
