Mfrs. Of led driver, led controller, switching power supplies, battery charger, dcdc converter, transformer, cvts, switching adaptors, cctv camera power supply, medical power supply, solar products, e-rickshaw charger, e- bike charger, car inverter, ups & inverter

Comprises U & I cores of low loss magnetic material, to form a closed core of cross section 25 mm in plane of laminations, 32 mm perpendicular to them is an I - core of length 102 mm. U core external height 102mm. Internal height to take bobbin length 77 mm. Pair of pole pieces, each 65x30x25 mm with on end shaped to part of a cone for maximum flux density. Hole drilled through total length along cone axis to take a light beam. Pole pieces will accept supertrods & shading ring (provided with accessories) & may be clamped on any separation on U core, or in contact as a non laminated I - core. Cast aluminium alloy stand consisting of a heavy base on four rubber feet with removable clamping arms. Maximum dimensions of base 190x200x115 mm. Channel 35 mm wide & 3 mm deep to take transformer core, extends across full width. Integral support for arms, to rear, is below the level of the pole pieces. Arms pivot on steel spindle with adjustment of knobs to rear bringing hard rubber pads at front end of arms to bear on transformer core. Synthetic hammer finish except of clean metal in channel & 4 mm hole to take on earthing plug lead. Complete with all the accessories.

Switching of electrical utilities in Industrial & Commercial environment generates spikes up to 6000 Volts & high frequency power line Noises. The spikes can cause the failure of thyristors, Micro-processors, or other active electronic device.

We bring forth an advanced range of Lamp Transformers that are required for various applications. Lamp Transformer is manufactured by us using premium quality raw materials to offer a quality which is highly appreciated by clients, resulting in repeated demands from all over the world. Sodium Vapor Lamp Transformer : 35W55W Features : Anti-dust modelHighly efficientResistant to power fluctuationsCompact structureDurable Finds Application in : Academic sectorIndustrial sector

Code: EEY0001 Air Cooled Transformer. Air Cooled Transformer ManufacturerFeatures:    Air cooled transformer made up of CRGO grade laminated core of silicon stamping used.    Copper coils are wounded with perfect tappings on the both secondary and primary sides    For the primary and secondary insulated terminals are marked for the identifications of different connections.    Available in MS powder coated box for rust proof    For the high insulation strength, primary and secondary coils are impregnated in vacuum pressure.Available Ratings:    1KVA/ 2KVA/ 3KVA/5KVA with voltage ratio 230/115v or 230/230v or as per requirementTypes    Core Type / Shell Type    This special type of air cooled transformer can be used for following experiments    To find turns polarity and ratio of a single phase transformer.    To study short circuit and open circuit tests of single phase transformers.    To perform sumpner’s back to back test on single phase transformer.    Two single transformers by parallel operations    To find the voltage and efficiency regulation of single phase transformers by the direct loadings.    To study the scott connection on two single phase transformer.

We are offering demountable transformer. Abbomedtm a large-scale transformer, ideal for classroom. The coils are fitted with intermediary outputs providing many transformation ratios. Moreover, one of them has a mains cable so that you do not required an external power supply unit. Consisting of : a I magnetic circuit made up of highly permeable u-shaped metal sheeting, which can be closed via two clamps with tightening screws. B section 40x40mm. Length 150mm-height 170mm. C one coil of 6000turns, 350 ohms, 1 max: 0.2a. Intermediary 2000 turns output used. D one coil of 600 turns, I max. 2.5a. Mainly to create the transformer primary. Provided with power supply cable. E one coil of 1200 turns, 12.5 ohms, I max: 1.25a fitted with intermediary 400 and 800 turns outputs. F one coil of 72 turns I max: 12a, has intermediary 6,30 54 and 66 turns outputs. Any other coil of different turns available on request.

Located at Ambala(India), we are reckoned for providing excellent array of products throughout the country. By keeping records of the leading market demands, we have developed a secure payment procedure that offers a plenty of options for making transactions.

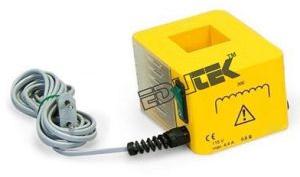

We have maximum expertise in delivering the finest range of Dissectible Transformer to our clients. Being one of the vital manufacturers and exporters from Ambala, Haryana, India, the offered products are highly appreciated in the market, and we manufacture these using premium raw materials. This product, supplied by us, is long-lasting and requires low maintenance cost. Before supplying to the clients, this item is quality-tested, and we source it from authentic vendors in the market.   Details : This apparatus has been designed primarily for demonstration of the basic principles of the a.c. transformer. The various coils and cores will also serve as the basis of many experiments in electromagnetism, using either direct or alternating current. To this end, the number of turns, the direction of winding and the continuous maximum rated current are marked on each coil. In the basic transformer set all coils are fitted with 4mm socket connection, but 600-, and 1200-, turn coils are available (as accessories) fitted with shielded plugs for connection to the a.c. Mains supply. All coils are of enamelled copper wire wound on high impact plastic molded bobbins 75mm long with cheeks 75x60mm. The robust clamping base is provided with a tommy-bar screw to hold the 'U' core , and two knurled nuts to secure the armature and provide for easy changeover of the coils. Soft iron pieces are provide which lovate on top of the 'U' core arms. One end of each pole piece is flat so that the pole pieces in situ provide a narrow gap with the full cross-sectional area,while the other end is in the form of a truncate cone giving a narrow concentrated field between the poles.   Contents : 1 Clamp base. 1 laminated 'U' core length of side 133mm, base 95mm, section 32 x 25mm. 1 laminated armature 95 x 32 x 25mm. 2 soft iron pole pieces. 1 300-turn 4A coil. 1 600-turn 2A coils. 1 1200-turn 1A coil. 1 3600-turn 0.3A coil, center tapped. 1 12000-turn 0.05A coil. 1 detailed instruction book.   Model Number : GP-549.1

Continuously variable voltage auto transformer, protected type. Comprises a torridly wound transformer with a continuously variable output voltage 0 - 260 volts AC. Steplessly under full load. Input 220 to 240 volts AC, 50 Hz. In stout metal case mounted on a metal base with mains cable.

We have carved a niche as one of the prominent Physics Instruments Manufacturers and Exporters from India. Various national as well as international clients are placing bulk orders for the Physics Lab Instruments due to the unmatched quality and accuracy in performance. The use of optimum quality materials also make them ideal for respective applications. Additionally, customers are eased with the availability of the General Physics Instruments in sizes and dimensions meeting the international standards.

Single phase double wound copper transformer having primary 230VAC and secondary 115V AC with a rated capacity of 1KVA. The primary and secondary terminals are brought out for conducting laboratory experiment with legend printed for convenience. This is assembled in a powder coated MS metal box. Specifications: Primary : 230 V AC Secondary with tappings at 86.6% and at 50% of primary voltage. Rated capacity: 1KVA Terminations: Separate 4mm Banana terminals at input and outputs Enclosure: Powder coated MS metal cabinet, with separate screw terminal for earth connection.

Comprises U & I cores of low loss magnetic material, to form a closed core of cross section 25 mm in plane of laminations, 32 mm perpendicular to them is an I - core of length 102 mm. U core external height 102mm. Internal height to take bobbin length 77 mm. Pair of pole pieces, each 65x30x25 mm with on end shaped to part of a cone for maximum flux density. Hole drilled through total length along cone axis to take a light beam. Pole pieces will accept supertrods & shading ring (provided with accessories) & may be clamped on any separation on U core, or in contact as a non laminated I - core. Cast aluminium alloy stand consisting of a heavy base on four rubber feet with removable clamping arms. Maximum dimensions of base 190x200x115 mm. Channel 35 mm wide & 3 mm deep to take transformer core, extends across full width. Integral support for arms, to rear, is below the level of the pole pieces. Arms pivot on steel spindle with adjustment of knobs to rear bringing hard rubber pads at front end of arms to bear on transformer core. Synthetic hammer finish except of clean metal in channel & 4 mm hole to take on earthing plug lead. Complete with all the accessories.

Demonstration Transformer P-7885 Operates on 220V A.C. mains, 50Hz. Two secondary coils to produce 6V and 12V at 2A can be mounted one by one, over the primary coil. The mains coil is provided with 1meter of two core cable and secondary coils are mounted with 4mm socket terminals. Students can easily mount or demount the transformer unit to get a 6V or 12V power supply as per requirement. Demountable Transformer P-7895 It consists of a cast alloy stand with heavy base and two removeable clamping arms to hold the cores and laminated U & I cores of cross section 32 x 25mm to form a close loop, 6 coils (1 each of 300, 600, 3600, 12000 turns and 2 of 1200 turns). Same as above, but can cross section 40 x 40mm P-7896 Demountable Transformer P-7898 Similar to above, but consists of alloy stand with heavy base and two removable clamping arms, two coils of 300 and 1200 turns of size 32 x 25mm, height 75mm.
