Transformers Dealers in Mumbai

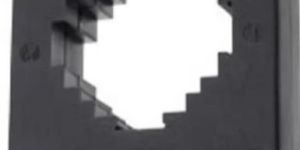

We are offering current transformers. The basic application of current transformers are: lowering the very high primary current passing through bus bars, cables, or wires to 5a or 1a, a measurable quantity by measuring instruments. isolating the measuring instrument and protective devices from mains. reproducing proportionate primary current on its secondary side, as required for extending the range of the instruments.

Demountable Transformer Science Labs A large-scale transformer, ideal for classroom. The coils are fitted with intermediary outputs providing many transformation ratios. Moreover, one of them has a mains cable so that you do not required an external power supply unit. Consisting of : A I magnetic circuit made up of highly permeable U-shaped metal sheeting, which can be closed via two clamps with tightening screws. B Section 40x40mm. length 150mm-Height 170mm. C One coil of 6000turns, 350 ohms, 1 Max: 0.2A. Intermediary 2000 turns output used. D One coil of 600 turns, I max. 2.5A. Mainly to create the transformer primary. Provided with power supply cable. E One coil of 1200 turns, 12.5 ohms, I max: 1.25A fitted with intermediary 400 and 800 turns outputs. F One coil of 72 turns I max: 12A, has intermediary 6,30 54 and 66 turns outputs. Any other coil of different turns available on request.

CBC Scott Transformers are designed and manufactured based on long experiences and tie-up with accumulated technologies of advanced companies. This Transformer is used to get single phase from 3 phases and its main use is for power supply to electric railroad.   Characteristics Transformers are High reliability (Stabilized design, superior working environment and facilities and thorough quality control) Realized superior short circuit intensity based on advanced technology Transformers have Low noise technology and high efficiency considering living environment.

Range : Single Phase 15 VA - 30 KVA , Three Phase 1 KVA - 120 KVA Compact, Dimensionally flexible, Energy efficient Easy mounting, Low stray magnetic fields, Reduced transformer hum Options : Thermal Fuse / Switch , Magnetic Shield Custom built Current transformers , Inductors & Chokes In Technical Collaboration with Plitron Inc. Canada

Symmetrical characteristics allow noise attenuation from sides. No need for extra filter circuits. Can be used where different ground potential exists or the ground of the equipment cannot be earthed. No impedance matching required.

We offer Plastic Moulded and Resin Cast Current and Potential Transformers suitable for Low Voltage (LV), Medium Voltage (MV) and High Voltage (HV) Applications. Contact us with your specifications for a custom designed transformer.

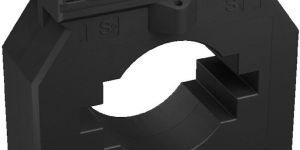

Current transformers are used for monitoring load current in networks or great loads. They transform currents in the kA range to e.g. 0-1 A or 0-5 A. Thus large load currents can be evaluated and monitored by downstream automation devices. The new “PACT” analog current transformer portfolio offers a complete range of tubular bar, plug-on and wire-wrap transformers for measuring large currents of 1 A to 4000 A. Depending on the application requirements, almost 3000 different versions of different accuracy classes, capacities and sizes are available. Different mounting positions allow for use even in applications where space is critical. Besides non-calibratable current X’mers, calibratable X’mers are offered, which become calibrated current X’mers after an additional calibrating process. On customer’ request, the calibration of the measuring transducers including the creation and handling over of all certificates can be processed by Phoenix Contact.         Control systems or display elements Like e.g. digital display require standard signals of e. g. 0…20mA as an input signal. As in the current application path to be measured, large currents of upto 4000 A can occur, you need current X’mers that convert these high current to 1 A AC or 5 A AC. Then downstream current transducers uses this current to create typical standards signals that can be processed by e.g. control system. Current Monitoring: With the help of monitoring relays (IF monitoring), currents can be monitored and over currents can be can be signaled via a switching output. As typical monitoring relays only have a measuring input of up to 10 A maximum, a current X’mers the high currents into smaller ones. Motor Management : The electronic motor managers (EMMs), among other things, serve for motoring a drive system or a 3 – phase load. For this, 3 currents have to be measured and monitored. Currents of more than 5 A cannot be processed by the EMM current measuring input. Therefore, separate current X’mers has to be installed before the current measuring input so that the primary current is transformed into 5 A maximum. Test Circuits : Test disconnect terminal blocks and slide terminal blocks were developed especially for the use in current X’mer secondary circuits. The terminals can be fitted on both sides with fixed and switchable jumpers as well as test sockets.

We are offering Nec make Ignition transformers suitable for Oil and gas firing Boilers/ burners/ ovens and other oil and gas firing systems. We supply complete models of nec make ignition transformers such as: Nec make ignition transformer 2 pole for oil firing systems input 230 volts, output 14,500 volts, 30 ma, 1 phase, interminent duty and continues duty 2X14.5 kv Nec make ignition transformer input 230v, 1 phase, 50 Hz, A.c  output :5 Kv, 7.5 Kv, 10 K.v, 12 K.v, 14.5 kv Etc. etc...... Current : 20 Ma and 30 ma Continuous and intermittent duty   Nec make Epoxy and damper moulded ignition transformers Nec make ignition transformer of 5 Kv, 7.5 Kv, 10 K.v, 12 K.v, 14.5 kv Etc. etc......Suaitable For The Following Make Boilers: Thermax boiler ignition transformer Nestler boiler ignition  transformer Double ace boiler ignition transformer IAEC boiler ignition transformer Fuelpac boiler ignition transformer Patel boiler ignition transformer Energypac boiler ignition transformer Combustion and concept burner ignition transformer Hi therm boiler ignition transformer Fuelpac boiler ignition transformer Maxima boiler ignition transformer Elite thermal boiler ignition transformer J.N Marshall boiler ignition transformer etc

We bring forth superior quality transformer parts, which are manufactured with precision using latest technology. It is a sheet metal made part which is used in single phase electic transformer. The clients can avail transformer parts in various specifications as per the requirement. features : high performancedurablegenuine quality economical

Our company takes great pride in supplying Electronic Coil of optimum quality. The Electronic Coil which we offer is made in compliance with the industrial standards. One can avail the Electronic Coil from us at budget friendly price.
