Pathological Microscope
15,500 - 25,500 / Piece
100 Piece (MOQ)
G-NEX INDIA pathological microscope is a high-precision optical instrument designed for examining biological tissues and cells at a microscopic level, primarily used in pathology labs for disease diagnosis.
G-NEX INDIA Deluxe Co-axial Microscope (Model: GXI-DCX) (M/B/T)
Technical Specification:
Optical system: Finite High contrast Color corrected optical system.
Body: Ergonomically designed Single piece Pressure Die-casted Aluminum body with anti-rust coating and oven/pu painted. Extended base for better stability and hand rest for enhanced comfort, all the other parts fabricated from stainless steel and brass metal.
Viewing Head:
A. Monocular (M): Monocular observation head inclined at 45°, rotatable through 360°.
F.O.V 18mm / 20mm.
Or
B. Binocular (B): Binocular Sliding head 45° inclined, 360° rotatable with IPD 55-76mm, Diopter adjustment ±5 on one ocular, F.O.V 18mm / 20mm.
Or

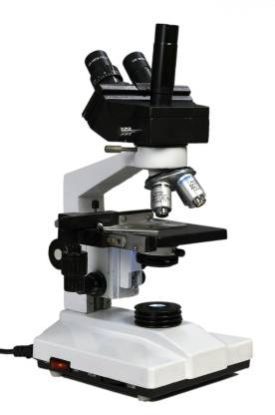

C. Trinocular (T): Trinocular Sliding head 45° inclined, 360° rotatable with IPD 55-76mm, Diopter adjustment ±5 on one ocular, F.O.V 18mm / 20mm, (Ratio 0:100, 100:0).
Eyepieces: Wide Field 10X, F.N. 18mm / 20mm.
Objectives: Antifungal, Antireflection & Hard coated Objectives:
DIN Ach. 4x / N.A. – 0.10
DIN Ach. 10x / N.A. – 0.25
DIN Ach. 40x / N.A. – 0.65 (SL)
DIN Ach. 100x / N.A. – 1.25 (SL) (Oil)
Magnification: 40x to 2000x (with multiple optical combination).
Nosepiece: Inward / Outward Low-friction Quadruple revolving nosepiece having positive click stops.
Focusing System: Co-axial coarse and fine focusing knobs on both sides based on gear reduction system.Precise graduated slow motion knobs reading to 0.2mm per revolution.
Mechanical Stage: Hard coated stage 145 × 125 mm with low co-axial controls for easy slide manipulation on both the axis, with graduation and verniers. X-Y Travel range of 76 × 55 mm, with slide holder. Stopper for slide safety.
Condenser: Abbe condenser N.A. 1.25 having rack and pinion movement, Iris-diaphragm and filter holder.
Illumination: 3W LED lamp operated on 220V-50/60Hz. Built-in variable controller for Light intensity knob / Regulator and Light source with on/off switch.
Battery Backup: Upto Std. 2-3 Hrs. battery backup for LED illumination. Optional 4-6 Hrs.
Standard Accessories: Packed in Styrofoam Case including vinyl cover, Power Cord (1.5 mtr), WF10X/18mm Eyepiece Pair, Spare LED Bulb (3W), Spare Fuse 2 nos (3Amp), Lens Cleaning Cloth, Lens Cleaning Solution (100 ml), Immersion oil (50 ml), & Operating Manual.
Optional Accessories: WF10X/20mm Eyepiece Pair, WF15X/16mm Eyepiece Pair, Ocular & Pointer Eyepiece, Stage Micrometer (1/100mm), Mirror Attachment, Phase Contrast Attachment, Dual Head Attachment, Wooden Box.
Applications:
Histopathology & Cytology (tissue and cell examination)
Hematology (blood cell analysis)
Microbiology (bacteria, fungi, and parasites detection)
Oncology (cancer cell identification)
Battery Backup : 2-3hr/ 1 time charging
Magnification Range : 40-2000x with multiple optical combination
Magnification Changer : Positive Precision Click Stops, Quadruple, Inward or outward
Focus : 0-2mm/Revolution
Eyepieces : WF10X
Weight : 1-3kg
Portable Style : Portable
Voltage : 100-220V
Country of Origin : India
Feature : Actual View Quality, Contemporary Styling, Durable, Easy To Use, Good Griping, Uv Protective
Size : 145mmx125mm
Application : Forensic Lab, Science Lab, Pathology Lab
Condition : New
Driven Type : Battery, Electricity
Brand Name : G-NEX INDIA
Color : White
Power : 3 Watt
Warranty : 1yrs
Type : Pathological Microscope, Single Piece Pressure Die-casted
