Pathological Microscope Dealers in Ambala

Model No .: Monocular Microscopes Model: MONO MINI     This microscope fulfils the complete features for general laboratory us in two models: Monocular & Binocular with the following features: STANDARD FEATURES 1. Viewing tube: Monocular head 45degree inclined. 2 Head Rotatable at 360 degree. 3. Quadruple nose piece with positive click stops. 4. Coarse & Fine focusing Graduated to 1Div=.002mm. 5. With mechanical stage for X&Y movement of slide. 6. Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder. 7. Built in Illumination 6V-20W halogen lamp.with intensity control. 8. Complete with day light reflector and dust cover. 9. Duly packed in styrofom packing./td>

Hoverlabs is one of the leading trinocular pathological microscope which is used for education, training analytical and research work in colleges, hospitals, laboratories and institutes.it has a heavy sturdy body & base for stability and is fitted with quadruple revolving nosepiece. Built in transformer is controlled by variable solid state electronic knob.these products is manufactured by expert engineers, using high quality raw material, latest technologies.hoverlabs, the trinocular pathological microscope manufacturers india.

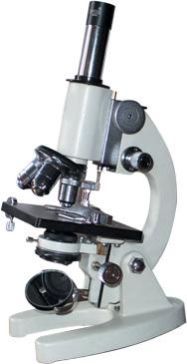

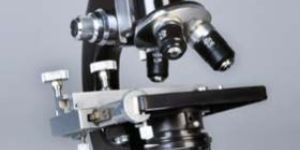

We are offering Pathological Microscope. that has a strong structure and well designed components. these microscopes are used extensively in pathological laboratories. the pathological microscopes have high quality components that are durable and reliable. we are reputed as one of the leading manufacturers of pathological microscope. technical specifications quadruple revolving nose piece illumination through reflector mirror adjustable according to requirements focusing processor separate coarse condenser n.a.1.3 with up and down movement by means of rack and pinion mechanism contemporary horse shoe hinged type base for easy inclination while observation liking mechanical stage fixed stage 120mm x 120mmequipped with precision x and y movement of slide upto 50mm 75mm with graduated scale and vernierthe specimen slide can be observed for larger area.objectives 45x, 10x, 4045x(sl), 100x (sl) oil immersion10x wide field, 15x huy. eye piecemagnificationin 4x, 10x, 40x, 100x oil immersion40, 60, 100, 150, 400, 600, 1000, 1500xin 5x, 10x, 45x, 100x oil immersion50, 75, 100, 150, 450, 675, 1000, 1500x available in packing well packed in box along with working manual lens cleaning paper and oil immersion bottle other details facility to attach substage lamp in place of reflector as per the need.the substage lamp works on 6v-20w or 220v-15w.substage lamp m.no. ss-100x (sl)(optional).

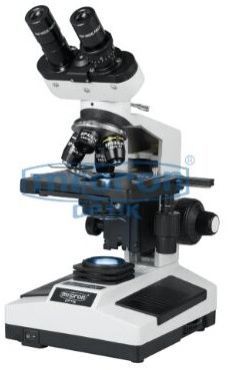

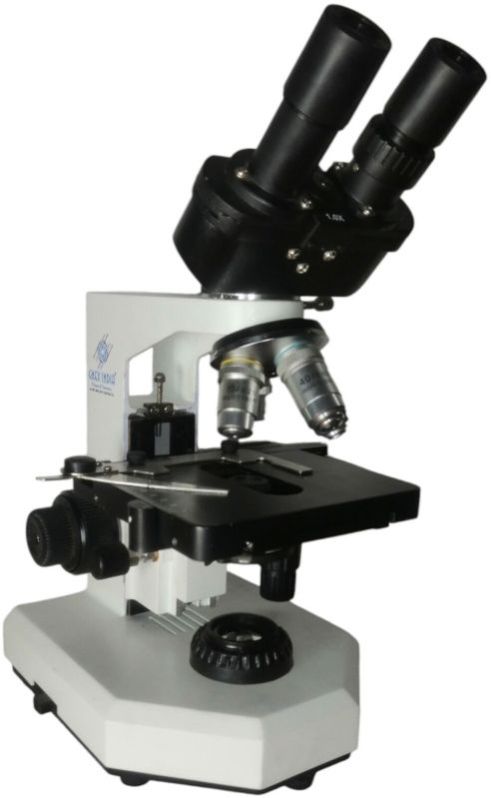

Frame- All aluminum pressure diecasted body. Paint-P.U. coating in light cream shade.Nose piece-Reverse type ultra Quadruple ball bearing nosepiece. Binocular head-360* rotate able and 30* inclined head with all anti-fungus coated prisms.Focusing system-fine Co-axial focusing system with three planetary gears assb. With slide protection lock.Mechanical stage-Cxl Ball bearing double layer mechanical stage for smooth functioning.Condenser-Condenser Bright field sub stage condenser having 1.2 N.A.Objectives-4x, 10x, 40x, and 100x and a paired set of 10x wide field eyepieces.Eye piece-WF-10X (20mm)Illumination-6v, 20w halogen lamp needs 220v (50Hz),110V(60Hz) optional supply.

All the Microscopes are latest in design, precision-engineered with finest features, usually found in high-priced models. Their operational functions can be carried out without any difficulty and provide excellent crisp clear image so that even advanced scientific studies are routinely possible. The Microscopes are extra-tough and suitable for a wide range of applications, from elementary education to college level. Student Medical Microscope RM-3 Stand - Stable and Robust, assembled from Aluminium DIE-CAST parts. Nosepiece - Quadruple nosepiece with accurate centering and positive click stops Stage - Detachable horizontal graduated mechanical stage size 120 X 120mm with adjustment for slide manipulation upto 45 x 75mm.

We are a leading manufacturer and exporter of sophisticated pathological microscopes which are used in varied labs. Our range of pathological microscope is known in the industry for its superior performance and exceptional quality. Latest machines and technology is used and advanced production process is followed in the fabrication of the pathological microscopes. Clients are eased with the availability of pathological microscopes at market leading prices. components of pathological microscopes fixed sub stage abbe condenser n.a. 1.25 with iris diaphragm swing out filter holderillumination by piano concave mirroradjustable down stoppersturdy heavy & well balanced monocular body hinged type horse shoe base inclinable from 1-90 degreemechanical tube length 160 ±1 mmtriple revolving nose piece with click stopfocusing by separate course & fine adjustment knobsfixed square stage 120 x 120 mm with clips to hold the specimen slide supplied in packed thermo cole box with dust cover along with duster and illustrated instruction manual. Optional accessories co-axial mechanical stagewooden cabinet with lock & keysub stage pin type lamp 20w- 220veye piece 10x wfinterchangeable monocular inclined tube inclined at 45 degreedraw tube

We are reputed for providing high quality pathological medical research microscope which are used in labs, and medical colleges. The pathological medical research microscope are sturdy and well designed. They are brought to our clients in sturdy wooden cases with thermocol packing. They are available in an extensive range. features rack and pinion focusingfine gradated and sensitive0.002 mm slow motion reading quadruple revolving nose piecemoveable sub stage abbe condenser (n.a. 1.25) construction sturdy bodyrigid stage size 120mm x 120mm, detachable mechanical stage for x and y movementmechanical stage provides handy movement of slide with slide safety stopperiris diaphragm and swing out filter holdermicroscope can be inclined through 90degrees mechanical tube length 160mmplano concave mirror 50 mm diameter, metallic fork replaceable by sub stage pin type lamp 220v or 15w for lighting optical combination anti fungal objectives : 10x, 40/45x (sl), 100 x (oil immersion)eye piece : 10x (wide field) 5x/15x (huygenian) packing we serve the microscope in a packing of thermocole, covered in wooden case to avoid single chance of breakage

Coarse motion with rack & pinion and fine motion lever type with graduated drums.Monocular body inclinable up to 90°, mechanical tube length 160mm.Triple/Quadruple revolving nose piece with accurate click stops.Plain stage fixed with detachable mechanical stage having convenient adjustment for slide movement.Safety stopper to prevent slides & objectives.Sub stage abbe condenser focussable with rack and pinion.Concave & plain mirror in fork.Pressure die cast parts.

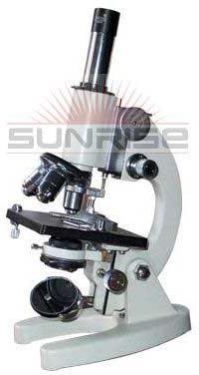

Available with us is optimum quality Medical Pathological Microscope, manufactured using high grade materials. Our Medical Pathological Microscopes are widely used in Path Labs and educational institutes. The wide range of Medical Pathological Microscopes offered by us is made available to the clients at competitive rates. TECHNICAL SPECIFICATIONSPressure Die-Cast interchangeable components with robust & sturdy constructionSeparate Coarse & graduated Fine Motion with sensitivity of 0.002 mmFitted with attachable graduated Mechanical Stage having X and Y movementsSub stage Abbe Condenser with Iris Diaphragm & filter holder, focusable with rack & pinionIllumination by Plano-concave reflector of dia 50 mm. (Interchangeable for electric illuminator 220 V- 15 W directly workable on mains)Optical combinationEye Piece : Coated WF 10X & Huy 5XObjective : A chromatic 10x, 40x/45x (SL) & 100x (SL) Oil ImmersionScratch proof highly resistant epoxy finish / powder coatedPacked in Styrofoam packing inside a Sunmica clad Plywood boxSupplied with detailed working manual, Dust Cover, cleaning cloth & lens cleaning paper

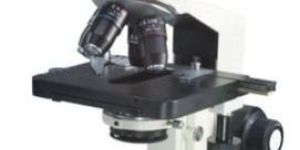

Pathological Trinocular Research Microscope RXL-4T RADICAL RXL-4T Biological Research Trinocular Microscopes Series meet a wide range of applications from Medical laboratory education to advanced research work. All the main operating functions of the microscopes are within easy reach so that extended observations are possible without eye fatigue or posture. The operational performance of the microscope is enhanced by combining modern design with high quality optics.Observation Head - 45°inclined Trinocular head rotatable through 360°.Nosepiece - Quadruple nosepiece with accurate centering and positive click stopsStage - Built in graduated mechanical stage of 135x140mm for easy and smooth scan of specimen slide over range of 50x70mmIllumination - 6V-20W halogen lamp, 220/110Volts. Mirror attachment for working in day lightObjectives - Achromatic DIN Size 4X - 10X- 40X SL and 100X SL Oil immersionEyepieces - DIN Size Wide field WF 10X and H5X or H6X or H15X (any two pairs)Packing - The Microscopes are packed in full mould Styrofoam Boxes with Vinyl Cover, Duster, Cleaning Brush, Filter, Immersion Oil and Operating Manual.

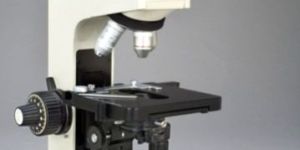

We Offer Binocular Pathological Microscope. Specification:- optical System chromatism Reduction/ics Infinite Correction. Observation Head binocular 30° Inclined, Ipd 52-75mm, Anti Mould Design. Eyepieces wf10x/18mm,Wf16x/12mm, High Eye Point Eyepiece. Objectives crcs Semi-plan 4x, 10x, 40x (spring) and 100x (spring, Oil). Imaging Device built-in 1/3" Colour Digital Ccd High Resolution Camera. Nosepiece reversed Quadruple Revolving Nosepiece with Positive Click Stops. Stage low Co-axial Mechanical Stage 142mm X 132mm with Movement 70mm X 50mm. Focussing tension Adjustable Co-axial Coarse & fine with Shuttle Control. Condenser centrable Abbe Condenser N.a. 1.25 with Diaphragm & Filter Holder. Illuminator koehler with Halogen Lamp 12v-20w & Continuos Adjustment. Power Source 110/220 Volts Variable Voltage with Bis & Ce Standards.

We are a well-known manufacturer and supplier of Pathological Microscope from Ambala, Haryana, India. This Pathological Microscope has fine focusing mechanism. It is especially designed for good focusing range. Pathological Microscopes eyepiece and nosepiece quality is magnificent. Our strict quality control procedures make our products more reliable. We can assure you good packaging as our team checks everything before dispatching. We provide prompt and timely delivery.

Designed for years of rugged use, our pathological microscope is manufactured from the white solid body with high quality fully coated optical lenses. Our pathological microscope is widely used in pathological labs for various applications. Today, we are well reckoned as one of the remarkable inclined pathological microscopes manufacturers and suppliers based in india. Specification base : the contempary horse shoe hinged type base for easy inclination while observation liking. Nose piece : quadrupple revolving nose piece. Focussing processor : seperate coarse condenser n.a.1.3 with up and down movement through rack and pinnon mechanism. Mechancal stage : fixed stage 120mm x 120mm. Provided with precision x and y movement of slide upto 50mm 75mm with graduated scale and verneir. The specimen slide can be observed for larger area. Illumination : through reflector mirror adjustable as per requirements. note : there is a facility to attach substage lamp in place of reflector if need arises. The substage lamp works on 6v-20w or 220v-15w. Substage lamp m.no. Ss-100x (sl)(optional). Objectives : 45x, 10x, 4045x(sl), 100x (sl) oil immersion. Eye piece : 10x wide field, 15x huy. Magnification : in 4x, 10x, 40x, 100x oil immersion 40, 60, 100, 150, 400, 600, 1000, 1500x in 5x, 10x, 45x, 100x oil immersion 50, 75, 100, 150, 450, 675, 1000, 1500x packing : nicely packed in box with working manual lens cleaning paper and oil immersion bottle.

RXLr Series Microscopes are designed with outstanding technological expertise of RADICAL, which extends the capabilities for education and research work. The quality assurance throughout the manufacturing process ensures demanding performance standards which are matched with exceptional economy in cost. Extra clarity and contrast is provided through our new high performance color corrected infinity optical system. Optical components in the viewing head and objectives are protected with an anti mould system to ensure proper performance in unusually hot and humid environment. Optical System : Infinite corrected available in achromatic, semi-plan and plan objectives High Eyepoint eyepieces with an optional WF 10x/22 and built-in diopter adjustment provides easy parfocality adjustment. Siedentopf-type eyepiece tube inclined at comfortable 30°. Interpupillary distance of 55-75mm with dioptric adjustment. Unique new design and comfort : Ergonomically designed with comfortable low positioned co-axial coarse & fine focussing controls and an adjustable tension control to maximise individual comfort and convenience. Built-in focus stop allows for rapid image focussing while protecting specimens and objectives. The stand is painted with scratch and chemical resistant epoxy paint.

Backed by the long years of business expertise, we offer to our clients Pathological and Laboratory Microscope (Item Code: M.S- 01). Microscope is a device to view distant objects in abstract manner. These instruments are offered in two types such as electron microscope and optical microscope. Our laboratory microscopes are extensively used in clinical examination of microbial organisms such as bacteria, virus and fungus. Moreover these are also used to pathological analysis of human urine. Our Pathological Microscope are widely acclaimed in the market owing to the features like high magnifying lens, compact design and superior performance.   Product Specifications:   High performance microscopic lens to see the objects having height of .002 mm Pinion motion for Condenser unit Plywood Case Three objectives 10X, 45X and 100X (Oil immersion) Three eye pieces 5X, 10X and 15X
