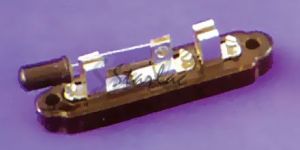

Knife Switch
Low voltage, single pole double throw, moulded base with plated metal contacts and screw connectors.
Knife Switch
Single pole double throw, mounted on bakelite base with plated Spring metal contacts and screw connectors.
Knife Switch
500 Pieces (MOQ)
Material : Metal
Application : Laboratory
Finishing : Non Polished
Packaging Type : Box
Automation Grade : Manual
Model : GWL817
Useful as basic component for any electrical laboratory.Mounted on bakelite base. Allows visible connection for easy use. With screw holes and suitable for bench fixing and panel mounting. Available in four configurations. Type;- Single – Pole, Single – Throw Single – Pole, Double – Throw Double– Pole, Single – Throw Double – Pole, Double – Throw
Knife Switch Two Way
Low voltage, double pole double throw, may be used as changeover switch with appropriate connections, moulded base with plated spring metal contacts and screw connectors.
Knife Switch P-8415
Knife Switch P-8415 Single pole double throw, mounted on bakelite base with plated spring metal contacts and screw connectors. Knife Switch, Double P-8420 Double pole double throw, other specifications same as P-8415 Switch, Reversing P-8425 Rotary brush type, current rating 10A mounted on moulded bakelite base plate with 4mm socket terminals. Switch Tumbler P-8430 For screw surface mounting, current Rating 5A, size 50mm dia Bell Push, Moulded plastic body P-8431 Switch Toggle P-8432 Single pole, ONOFF, moulded plastic body, Max current 5Amp, 220V AC, Two way Same as above, but one way P-84321 Contact Key, Single P-8435 A brass spring arm with press knob and two terminals, mounted on bakelite base. Contact Key, Double P-8440 Mounted on an insulating base, with three terminals, Common terminals at centre and other two are connected to other studs. Plug Key, One Way P-8445 Two brass block 9mm thick mounted on a bakelite base, brass blocks provided with brass terminals for connection. Accurate tapered plug with bakelite top fits between the block hole. Plug Key, Two Way P-8450 Three brass block of 9mm thick, mounted as P-8445
Knife Switch
Mounted on a bakelite base with plated contacts and screw connections.PHY-491.1 Single Pole Double Throw,PHY-491.2 Double Pole Double Throw
Knife Switch
Material : Mild Steel
Brand : CI
Max Current : 250A
Max Voltage : 380V
Pack Type : Box
Knife Switch
Knife Switch Low voltage, may be used as changeover switch with appropriate connections, moulded base with plated spring metal contacts and screw connectors.
Knife Switch
Low voltage, Single pole double throw with plated spring metal contacts and screw connectors. This can be double pole double throw also which can be used as changeover switch.
Knife Switch
A knife switch controls the flow of electricity in a circuit & is widely used electrical experiments. It has a hinge that lets a metal lever, or knife, be lifted from or placed in into a slot. The hinge and jaw are affixed to an insulated base, and the knife has an insulated handgrip to hold it.
Electrical Lab Training Knife Switch
